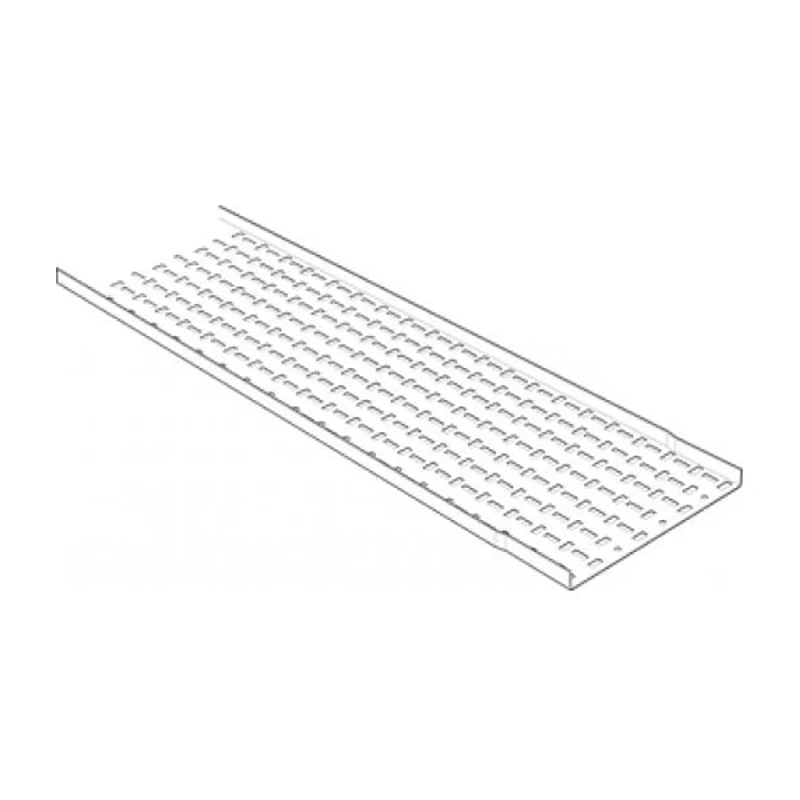

Legrand Cable Tray Light Duty 150mm x 3m Pre-Galvanised Steel

SKU: SSL150PGGo Magpie ID: 5060062455723

Cable tray manufactured from a pre-galvanised steel construction ideal for indoor use in commercial or industrial environments. . · · · Light duty · · Fast installation · · Distinctive slot pattern and provides installers with total flexibility · · Integral coupler, no separate couplers required · · Material thickness: 0.9 mm · · Usable cross section: 1800 mm² · · Bottom perforation: Yes · · Model: Integrated connector · · Material: Steel · · Operating / setting temperature: -20-120 °C

£24.86inc VAT£20.72 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Cable tray Colour Grey Material Steel Model Integrated coupler Surface protection Pre-galvanised Width 150 mm Length 3000 mm Material thickness 0.9 mm RAL number – Useful cross section 1800 mm² Height 12 mm Weight – kg/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Mounting perforation in base Yes Side wall perforation No Suitable for circuit integrity No With cover No NATO-mounting holes No · Technical Data Sheet – Click to Download
