Description

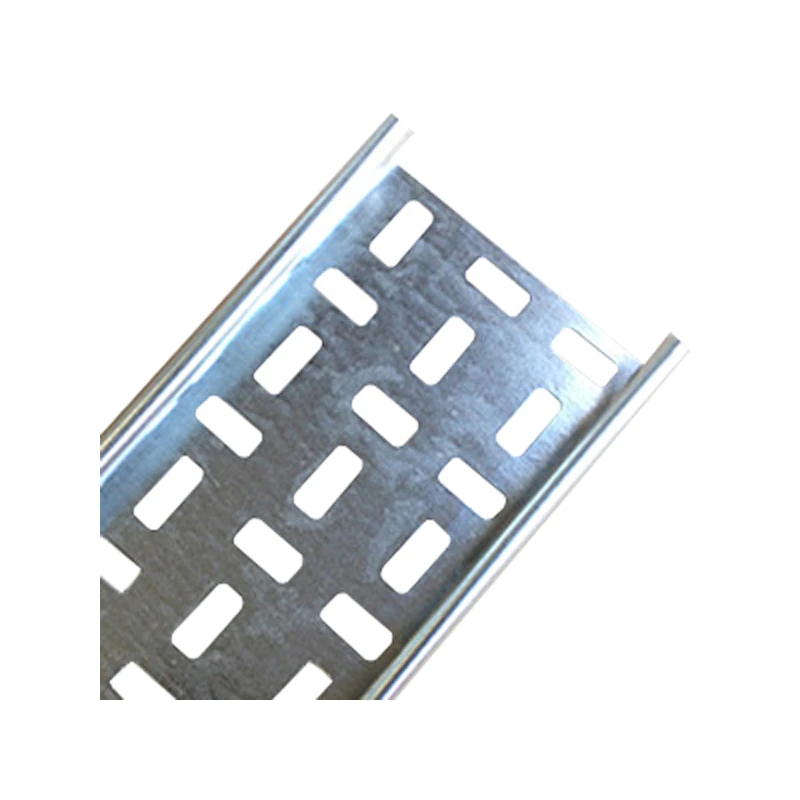

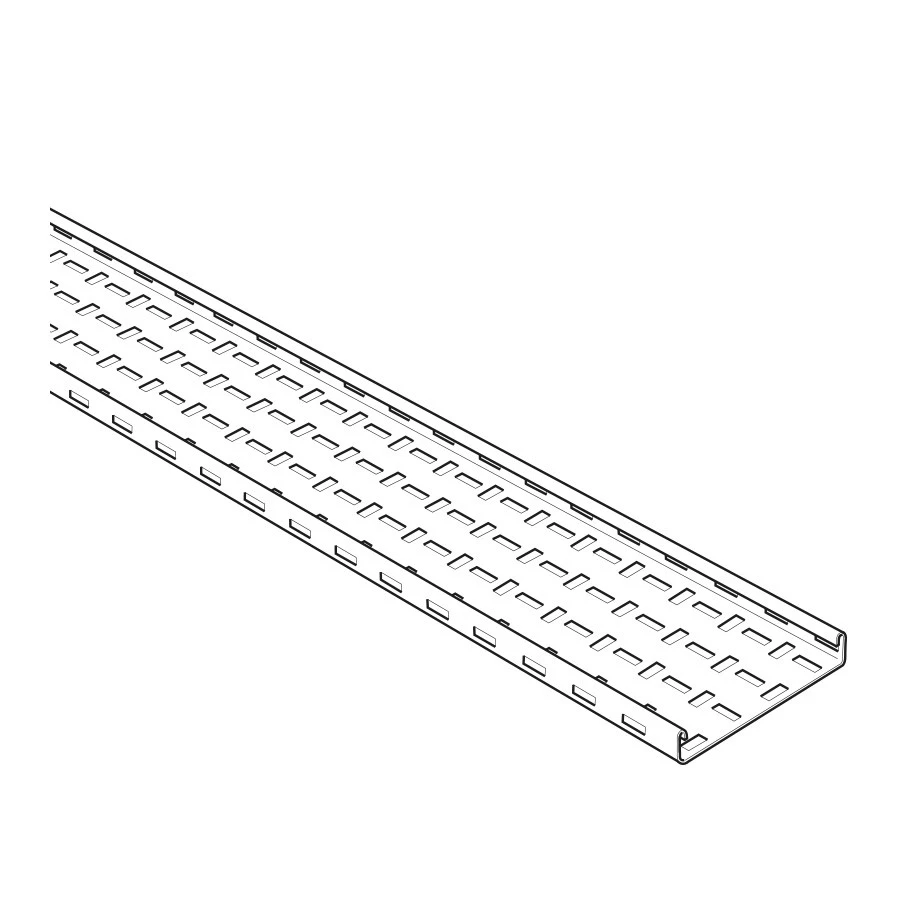

Technical Specifications  Technical Specifications Cable tray Material Steel Surface protection Hot dip galvanized Colour Grey Model Coupler not included Length 3000 mm Width 100 mm Useful cross section 2500 mm² Weight – kg/m Material thickness 0.8 mm RAL number – Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Height 25 mm Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Mounting perforation in base Yes Suitable for circuit integrity No NATO-mounting holes No Side wall perforation Yes With cover No · Technical Data Sheet – Click to Download
