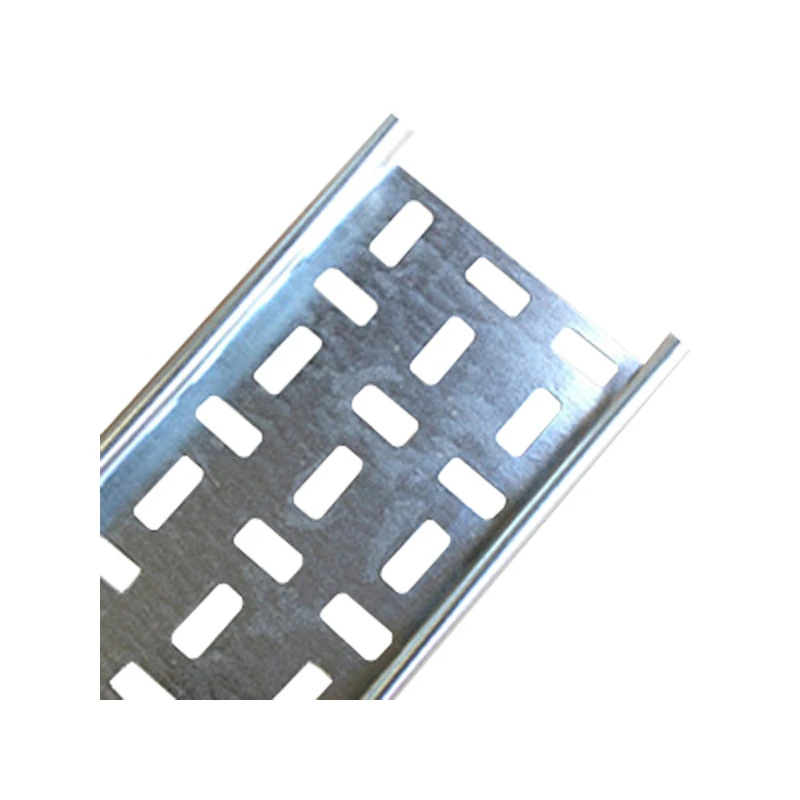

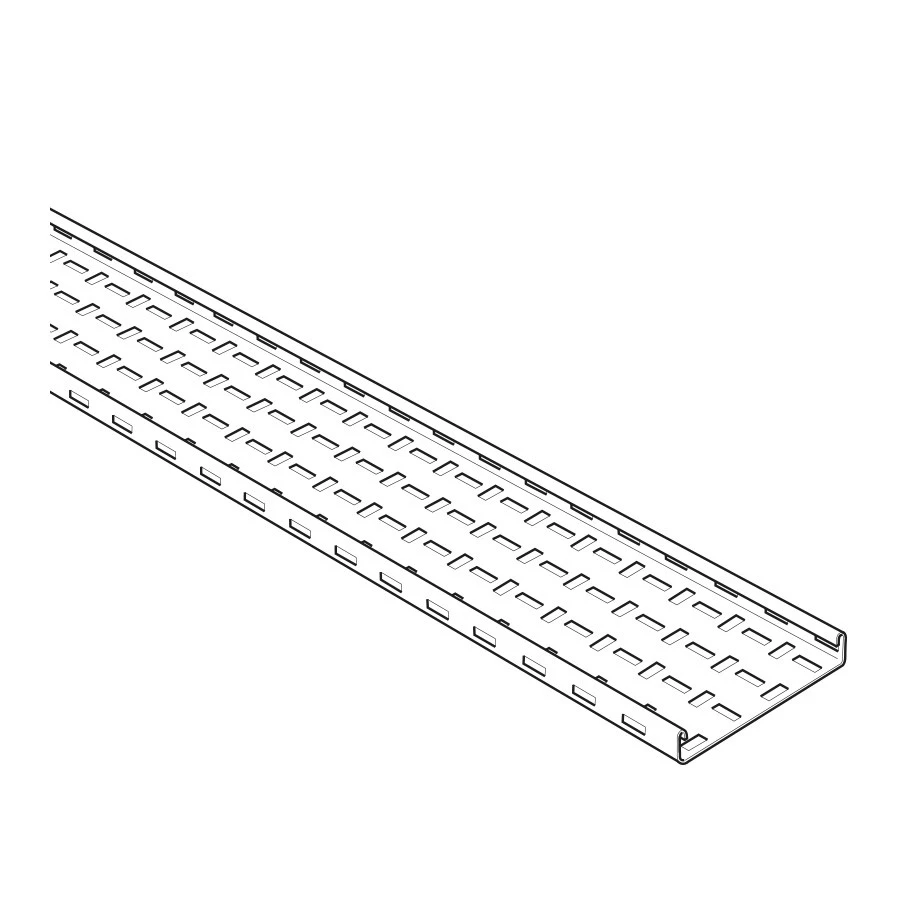

Legrand Cable Tray Medium Duty 150mm x 3m Pre-Galvanised Steel

Description

Technical Specifications  Technical Specifications Cable tray Colour Grey Material Steel Surface protection Pre-galvanised Model Coupler not included Material thickness 0.8 mm Width 150 mm Length 3000 mm RAL number – Useful cross section 3750 mm² Height 25 mm Weight – kg/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Support spacing range – – – m NATO-mounting holes No Working temperature -20 – 120 °C Side wall perforation Yes With cover No Suitable for circuit integrity No Mounting perforation in base Yes · Technical Data Sheet – Click to Download
