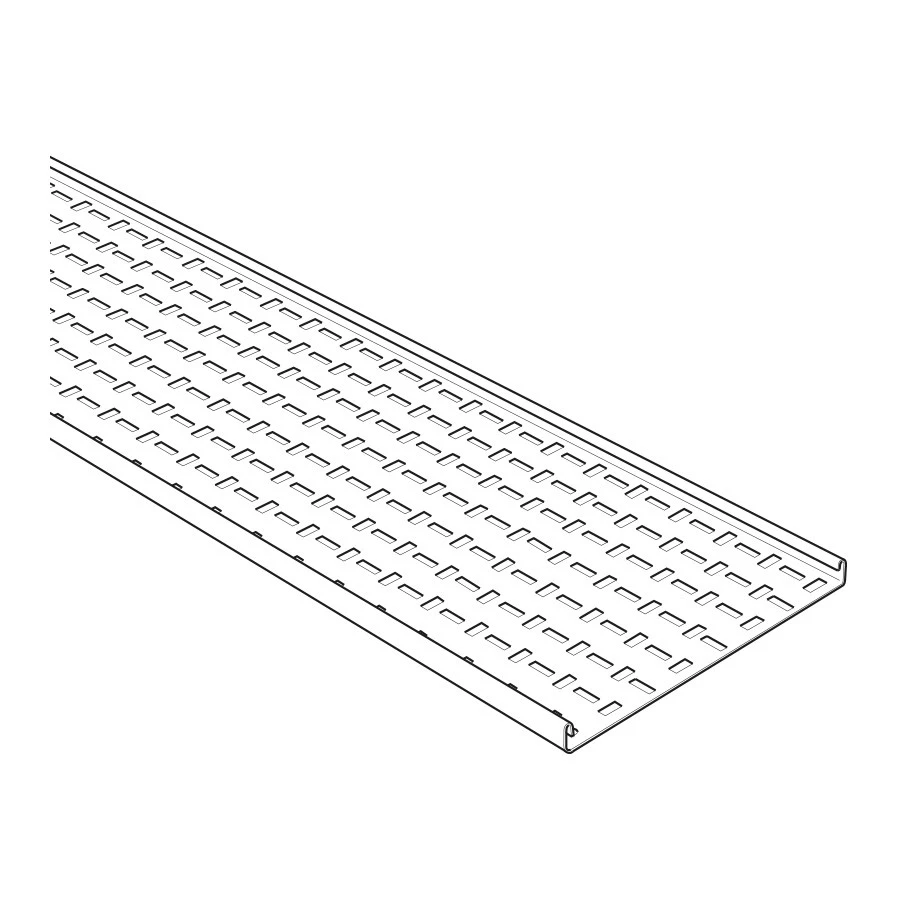

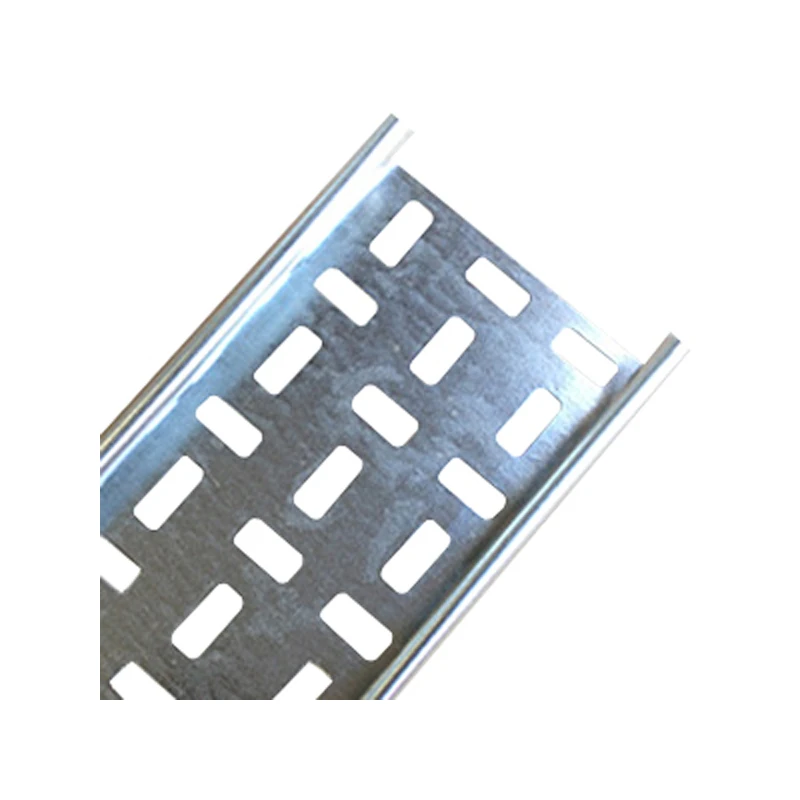

Legrand Cable Tray Medium Duty 300mm x 3m Hot Dipped Galvanised

Technical Specifications  Technical Specifications Cable tray Material Steel Colour Grey Surface protection Hot dip galvanized Model Coupler not included RAL number – Width 300 mm Height 25 mm Weight – kg/m Length 3000 mm Material thickness 1.2 mm Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Useful cross section 7500 mm² Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Suitable for circuit integrity No Mounting perforation in base Yes With cover No NATO-mounting holes No Side wall perforation No · Technical Data Sheet – Click to Download
