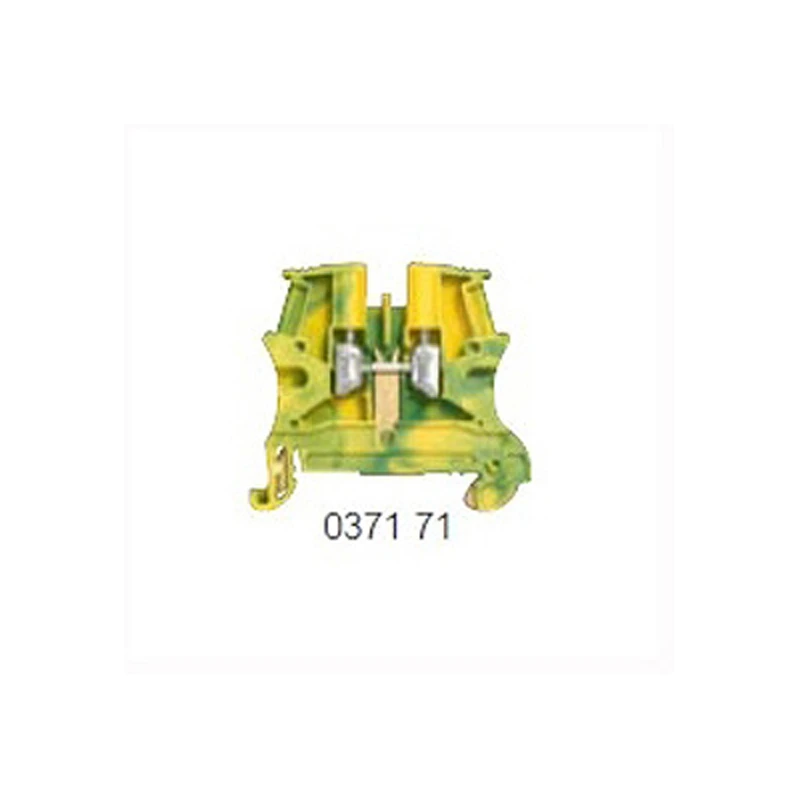

Legrand Earth Terminal 4mm

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Colour Green/yellow Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Depth 52.5 mm Width 6 mm Height 46.5 mm Rated voltage 800 V Rated current In – A Number of levels 1 Number of clamp positions per level 2 Operating temperature -5 – 40 °C Connectable conductor cross section solid-core 0.25 – 6 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.25 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.25 – 6 mm² Connectable conductor cross section multi-wired 0.25 – 4 mm² Explosion-tested version ‘Ex e’ Yes Closing plate required Yes Internally connected stages No
