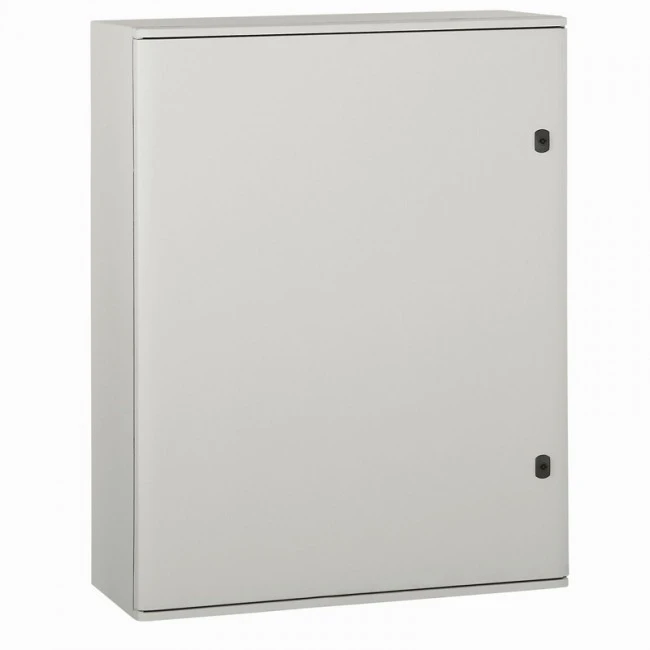

Legrand Enclosure Wall Mounting IP66 1020X810X300mm Ral 7035 Grp

Description

Technical Specifications  Technical Specifications Empty cabinet Protection class according to IEC 61140 II Circuit integrity None Colour Grey Housing material Plastic Type of door Single Cover model Closed Mounting method Surface mounted Type of covering Door Impact resistance (IK rating) IK10 Surface protection Untreated Degree of protection (IP rating) IP66 RAL number 7035 Depth 300 mm Height 1000 mm Plate thickness door/cover 4 mm Width in number of modular spacings – Nominal current (In) – A Number of modules – Number of conduit inlets – Number of openings for flange plates 0 Plate thickness cabinet 3.5 mm Internal depth 261 mm Recess depth 305 mm Number of rows – Width 800 mm With mounting plate No Transparent cover/door No With lock Yes Suitable for outdoor use Yes Extension possible No Suitable for lightning protection Yes Cover with overpressure release No
