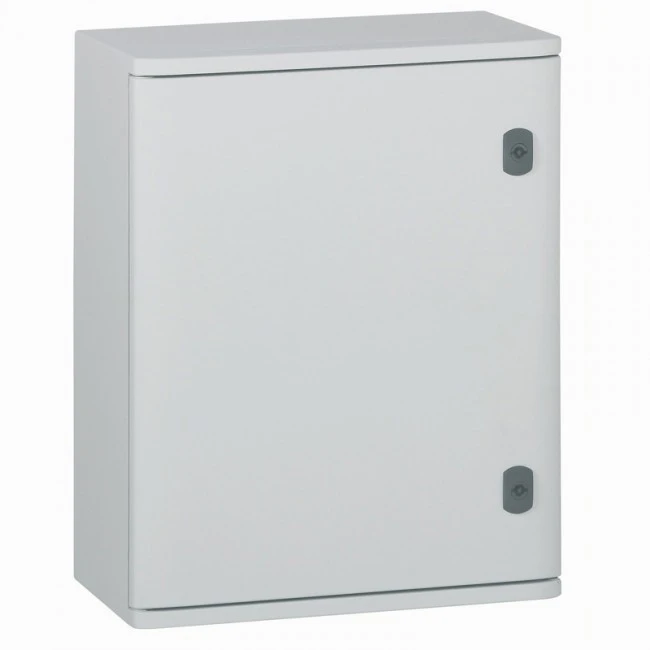

Legrand Enclosure Wall Mounting IP66 400X300X206mm Ral 7035 Grp

Description

Technical Specifications  Technical Specifications Empty cabinet Protection class according to IEC 61140 II Colour Grey Circuit integrity None Housing material Plastic Type of door Single Type of covering Door Cover model Closed Mounting method Surface mounted Surface protection Untreated Impact resistance (IK rating) IK10 Degree of protection (IP rating) IP66 Height 400 mm Depth 200 mm RAL number 7035 Width 300 mm Width in number of modular spacings – Number of conduit inlets – Number of openings for flange plates 0 Plate thickness cabinet 2.5 mm Internal depth 178 mm Recess depth 205 mm Nominal current (In) – A Number of modules – Number of rows – Plate thickness door/cover 2.8 mm With mounting plate No Transparent cover/door No With lock Yes Suitable for outdoor use Yes Cover with overpressure release No Extension possible No Suitable for lightning protection Yes
