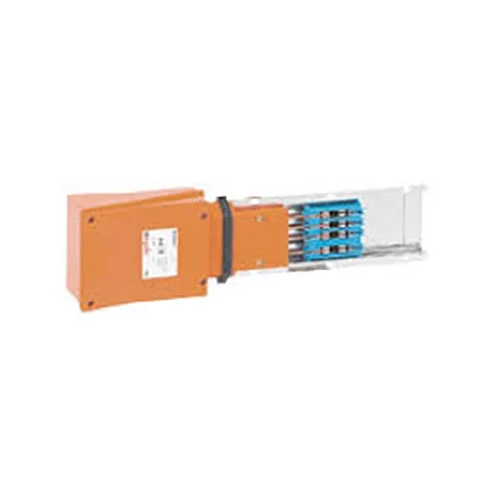

Legrand Feed Unit Left End IP55 63-100A
£131.17 Incl. VAT
Electrak ZUCCHINI MINI SBARRA Left End Feed Unit enables the MS range to be supplied by cable, the assembly is carried out with a quick connection device as with the straight lengths. The end feed unit has connection terminals to accept up to 35mm² copper cables for a 63/100A supply and 70mm² for a 160A supply. The entrance point of the cables is located at the base of the end feed unit. The MS range has centre feed units and end feed boxes with a switch, this solution makes it possible to disconnect the whole run to carry out maintenance operations or modifications to the layout. · · · Enables MS range to be supplied by cable · · Connection terminals to accept up to 35mm² copper cables for a 63/100A, 70mm² for a 160A supply · · Entrance point of the cables is located at the base of the end feed unit · · Degree of protection is IP55
Description
Technical Specifications Technical Specifications Feed unit for busbar trunk Colour Grey Degree of protection (IP rating) IP55 Power supply position End Height 125 mm Length 438 mm Width 2646 mm Number of poles 4 RAL number 7038 Rated voltage at AC 50 Hz 400 – 400 V Rated current at AC 50 Hz 100 A
