Legrand Hanger Overhead 150mm Pre-Galvanised Steel for Cable Tray
Legrand Hanger Overhead 150mm Pre-Galvanised Steel for Cable Tray
Legrand Hanger Overhead 150mm Pre-Galvanised Steel for Cable Tray - Image 2
Legrand Hanger Overhead 150mm Pre-Galvanised Steel for Cable Tray - Image 3

Legrand Hanger Overhead 150mm Pre-Galvanised Steel for Cable Tray

£9.74 Incl. VAT

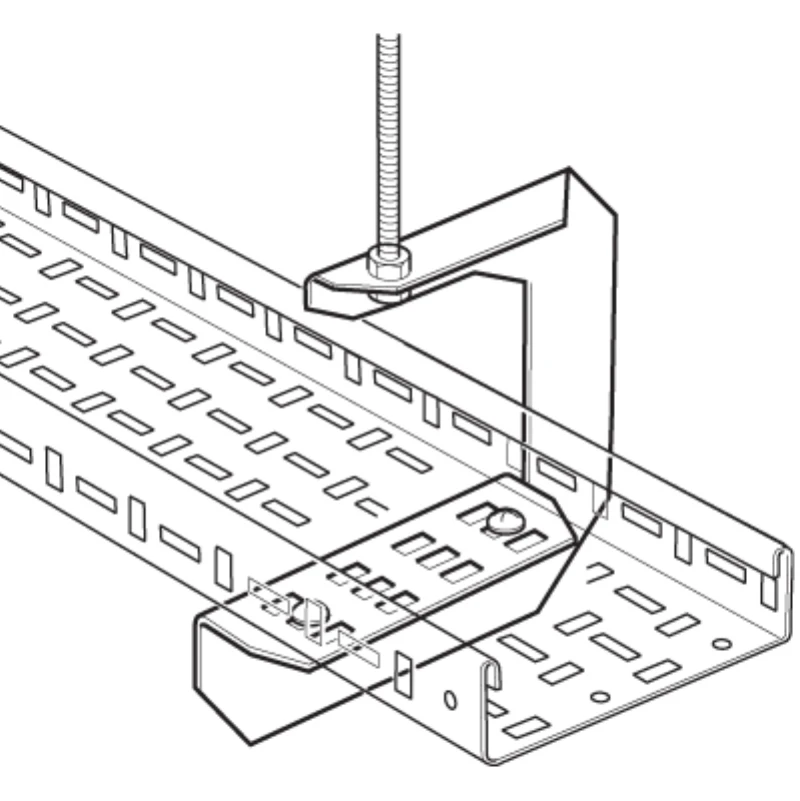

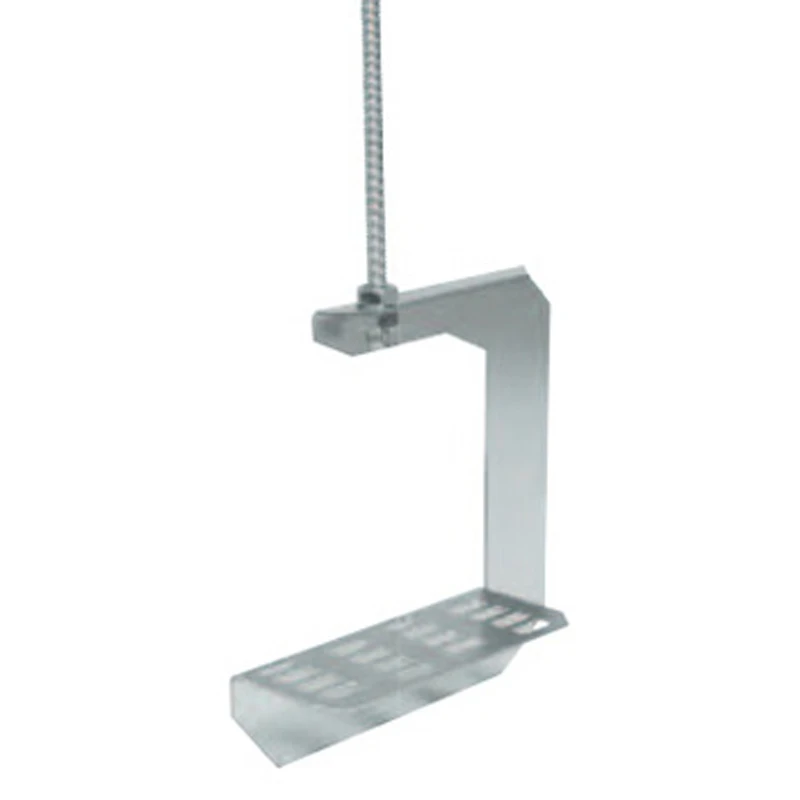

OH150PG is an Overhead Hanger made up of a solid steel construction complete with a pre-galvanised surface finish, suitable for supporting all cable tray of 150mm wide. It enables easy access for laying cables from one side of the tray. · · · Safe working load: 25kg · · Maximum load: 50kg · · In accordance with BS EN 10346 : 2009 grade DX51D · · Supplied singly without fastenings · · Supports horizontal runs of lightly loaded tray from overhead structures · · Use M10 threaded rod · · Suitable for cable support system width: 150-150 mm · · Suitable for cable support system height: 12-80 mm · · Model: Face out bracket overhead · · Tray mounting: Screwable

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OH150PG Categories: , , Brand: Product Code: 2500090804

Description

Technical Specifications  Technical Specifications Mounting bracket for cable tray systems Colour Grey Tray mounting Screw fix Material Steel Model Mounting bracket (C-shape) Surface protection Pre-galvanised Load bearing capacity 490.5 N Working temperature – – – °C RAL number – Suitable for cable management system height – – – mm Suitable for cable management system width 150 – 150 mm Suitable for circuit integrity No Suitable for wire cable tray/basket No Suitable for cable ladder No Suitable for cable tray Yes · Technical Data Sheet – Click to Download
