Legrand Hanger Overhead 50mm Pre-Galvanised Steel for Cable Tray
£6.37 Incl. VAT

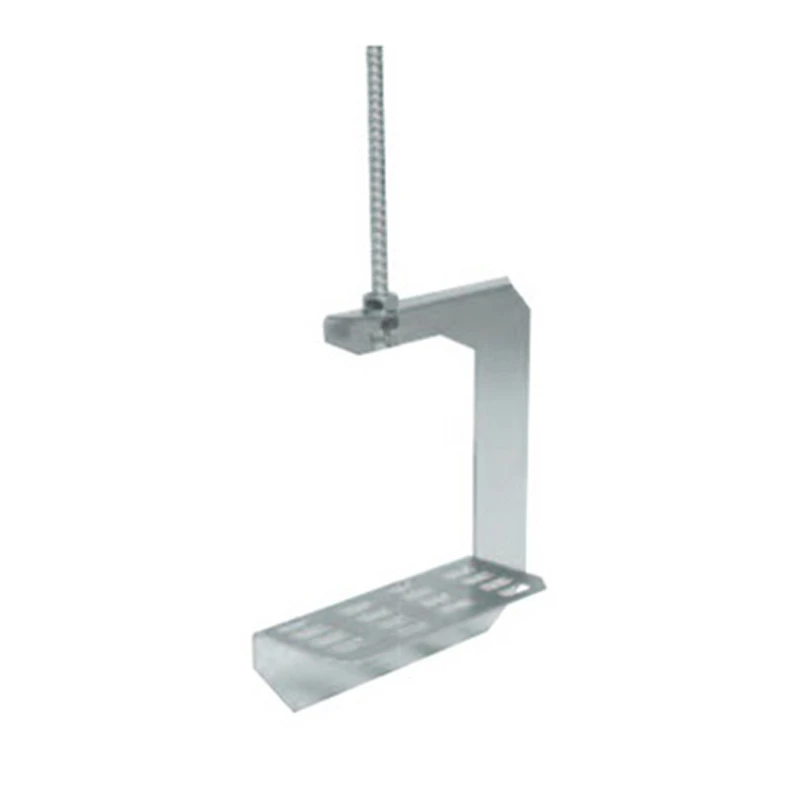

OH50PG is an Overhead Hanger made up of a solid steel construction complete with a pre-galvanised surface finish, suitable for supporting all cable tray of 50mm wide. It enables easy access for laying cables from one side of the tray. · · · Safe working load: 25kg · · Maximum load: 50kg · · In accordance with BS EN 10346 : 2009 grade DX51D · · Supplied singly without fastenings · · Supports horizontal runs of lightly loaded tray from overhead structures · · Use M10 threaded rod · · Suitable for cable support system width 50-50 mm · · Suitable for cable support system height: 12-25 mm · · Model: Face out bracket overhead · · Tray mounting: Screwable
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Mounting bracket for cable tray systems Colour Grey Material Steel Tray mounting Screw fix Model Mounting bracket (C-shape) Load bearing capacity 245.25 N Surface protection Pre-galvanised Working temperature – – – °C RAL number – Suitable for cable management system height – – – mm Suitable for cable management system width 50 – 50 mm Suitable for cable ladder No Suitable for cable tray Yes Suitable for circuit integrity No Suitable for wire cable tray/basket No · Technical Data Sheet – Click to Download
