Legrand Hanger Overhead 75mm Pre-Galvanised Steel for Cable Tray
£7.64 Incl. VAT

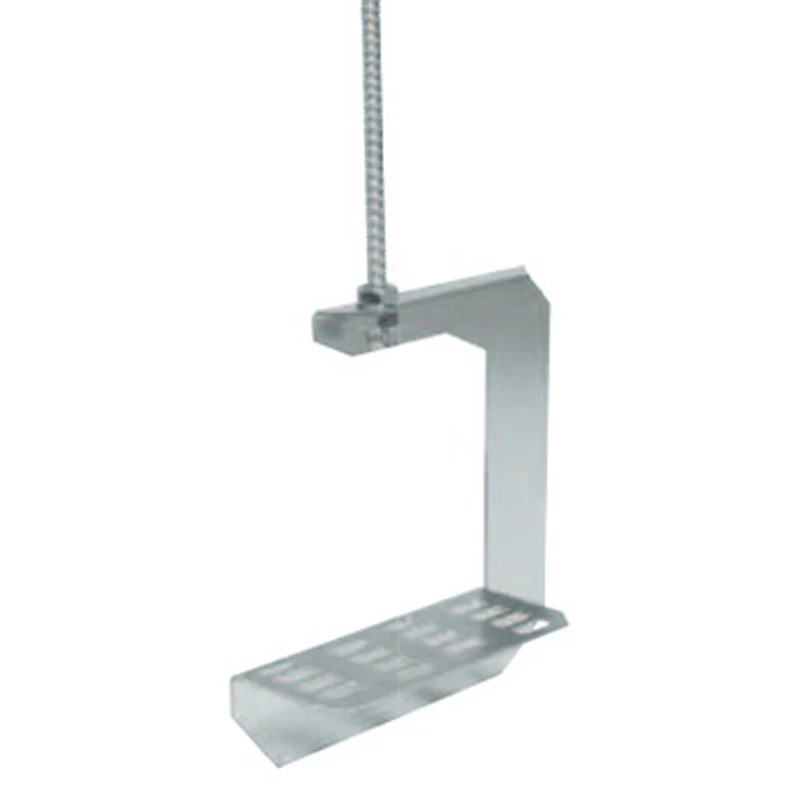

OH75PG is an Overhead Hanger made up of a solid steel construction complete with a pre-galvanised surface finish, suitable for supporting all cable tray of 75mm wide. It enables easy access for laying cables from one side of the tray. · · · Safe working load: 25kg · · Maximum load: 50kg · · In accordance with BS EN 10346 : 2009 grade DX51D · · Supplied singly without fastenings · · Supports horizontal runs of lightly loaded tray from overhead structures · · Use M10 threaded rod · · Suitable for cable support system width: 75-75 mm · · Suitable for cable support system height: 12-50 mm · · Model: Face out bracket overhead · · Load bearing capacity: 490.5 N
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Mounting bracket for cable tray systems Tray mounting Screw fix Colour Grey Material Steel Model Mounting bracket (C-shape) Surface protection Pre-galvanised RAL number – Load bearing capacity 490.5 N Suitable for cable management system width 75 – 75 mm Working temperature – – – °C Suitable for cable management system height – – – mm Suitable for circuit integrity No Suitable for cable ladder No Suitable for cable tray Yes Suitable for wire cable tray/basket No · Technical Data Sheet – Click to Download
