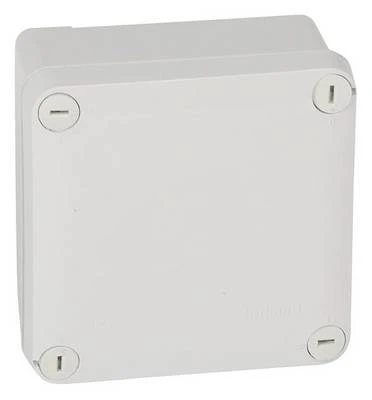

Legrand Junction Box Screw-On Cover Smooth IP55 105X105X55mm Grey Abs

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour Grey Equipped with None Circuit integrity None Type of housing feed-through None For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Cover attachment Bayonet latch Degree of protection (IP rating) IP55 Mounting method Universal Surface protection Untreated Width 116 mm Shape Square Rated insulation voltage Ui – V Number of entry points 0 Max. conductor cross section 0 mm² Diameter – mm Length 116 mm Depth 60 mm Working temperature -25 – 40 °C Tackable No Weatherproof Yes Entry point on rear No Sealable Yes Explosion-tested version No Casting compound included No Castable No With screening No Mounting in the soil No Mounting under water No Transparent cover No Halogen free Yes · Technical Data Sheet – Click to Download
