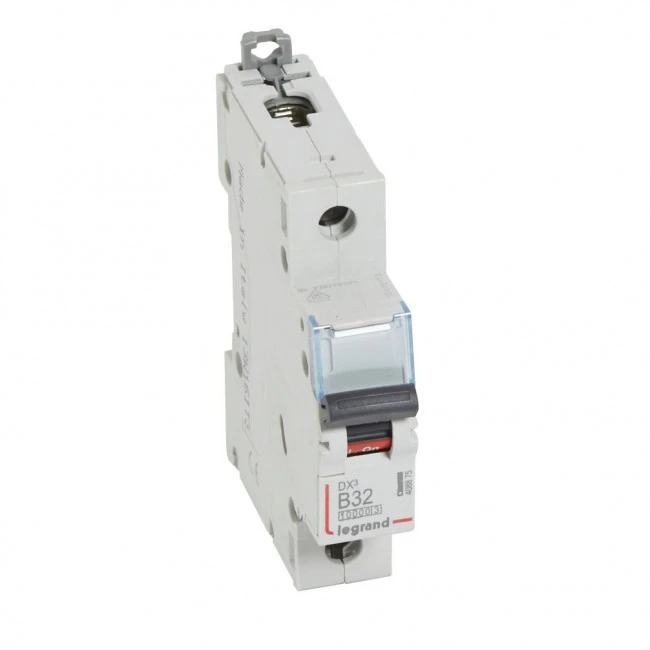

Legrand MCB SP Type B 32A 16Ka

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Rated voltage 230 V Voltage type AC Recess depth 44 mm Rated current 32 A Over voltage category – Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Power loss – W Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 16 kA Number of poles (total) 1 Rated insulation voltage Ui 500 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 2 Width in number of modular spacings 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1.5 – 35 mm² Ambient temperature during operating -25 – 70 °C Connectable conductor cross section multi-wired 1.5 – 25 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Flush-mounted installation Yes · Technical Data Sheet – Click to Download
