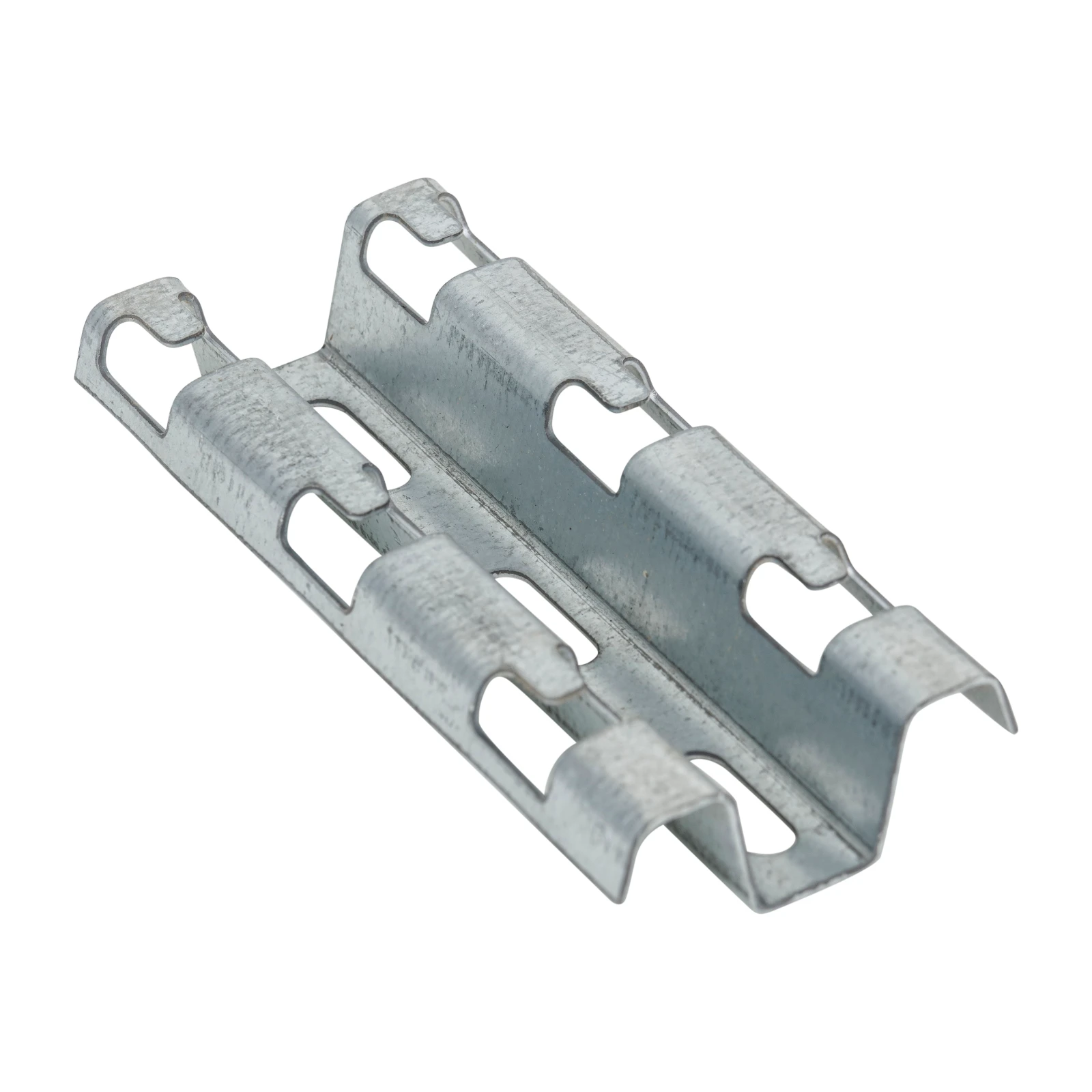

image-11162
Product image supplied by the manufacturer
Cable & Cable Management

Legrand Rail Wall/Ceiling/Floor/Beam Support 150mm Pre-Galvanised

SKU: CM013150Go Magpie ID: 5060062452842

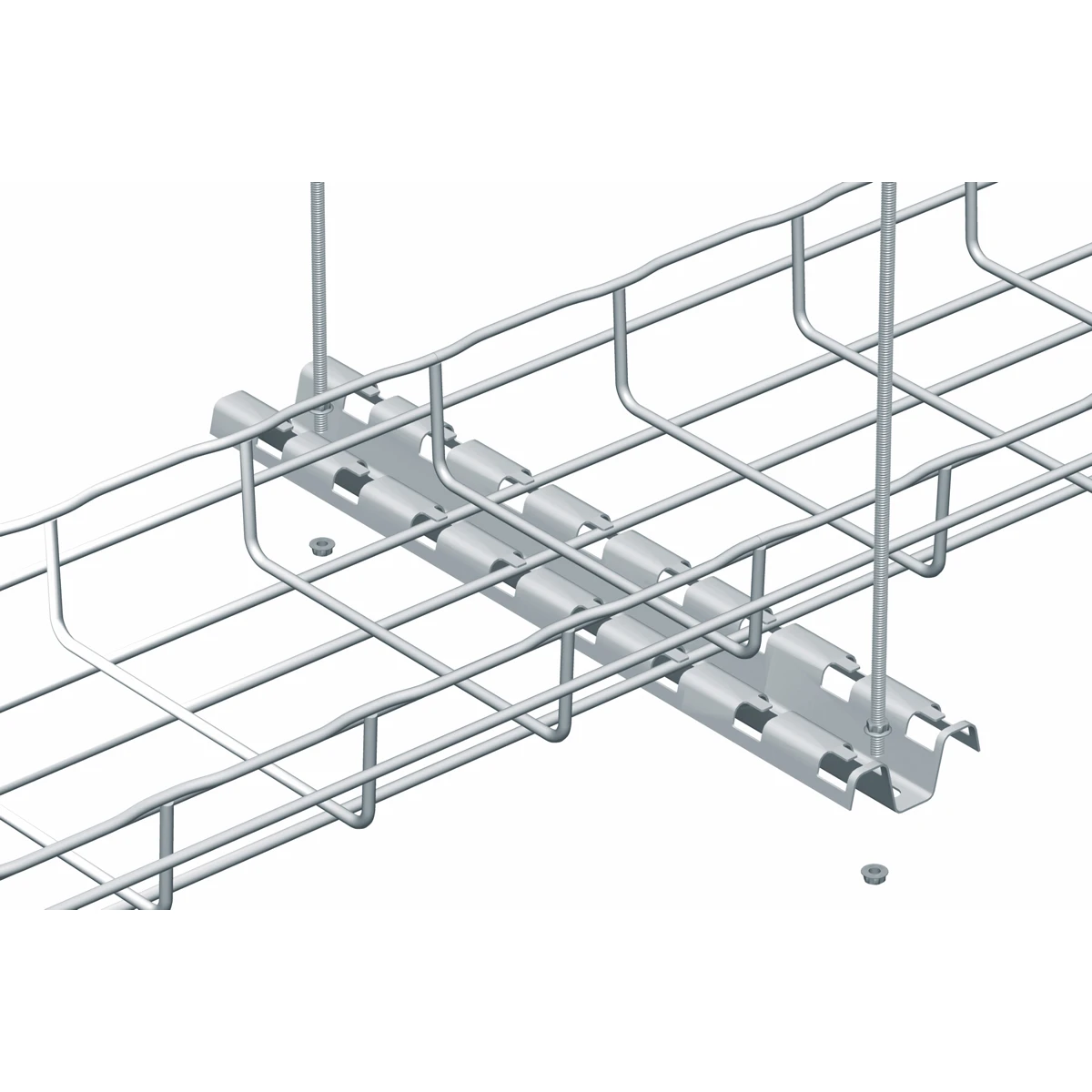

Cablofil RCSN pre-galvanised steel mounting profile channel is suitable for wall, ceiling and floor mounting and can be used for floor, wall and trapeze mounting. For trapeze mounting, add 100 mm to width of tray to order correct size support rail. · · · 16mm spacing from underside of base wire to wall · · Fixing without nuts and bolts · · Fast assembling · · Slot base wires of the tray into the support rail and bend tabs with screwdriver to secure

£2.66inc VAT£2.22 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Channel Material Steel Model Single channel Profile shape S-profile Type of perforation Slotted Surface protection Pre-galvanised Height 25 mm Length 144 mm Width 68 mm RAL number – Load bearing capacity 1 kN Slit width 25 mm Hole width 8.5 mm Moment of resistance Wy – cm³ Area moment of inertia Iy – cm4 Layer thickness surface protection – µm Area of inertia Iz – cm4 Moment of resistance Wz – cm³ Weight – kg Material thickness 1.5 mm Suitable for circuit integrity No With toothing No Snap-off No · Technical Data Sheet – Click to Download
