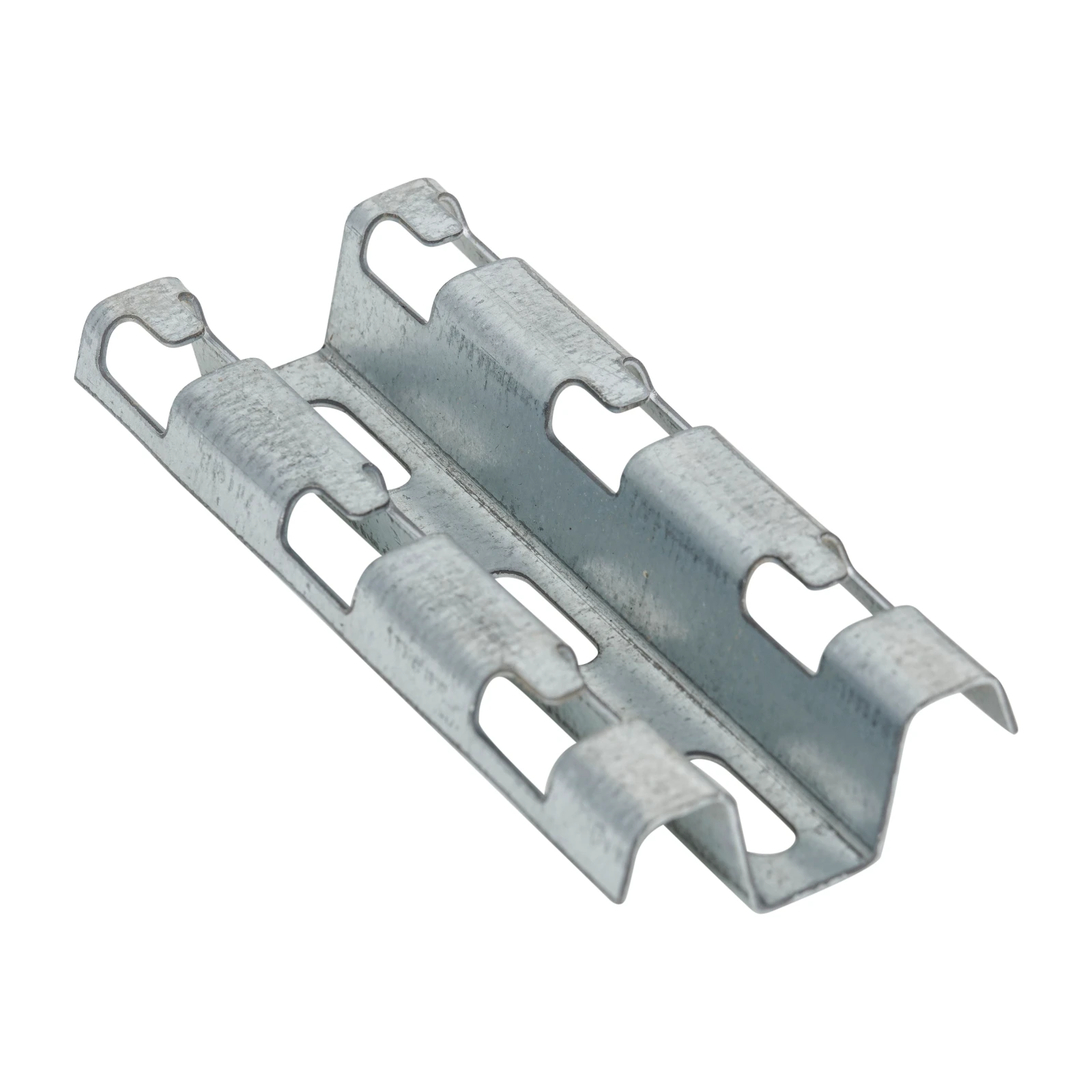

Legrand Rail Wall/Ceiling/Floor/Beam Support 200mm Pre-Galvanised
£3.24 Incl. VAT

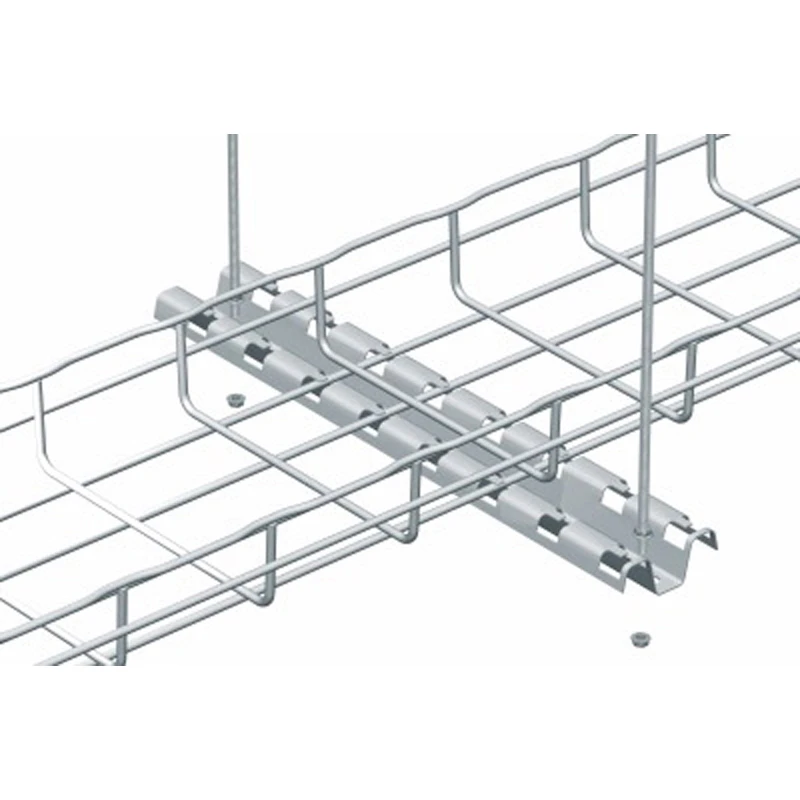

Cablofil RCSN pre-galvanised steel mounting profile channel is suitable for wall, ceiling and floor mounting and can be used for floor, wall and trapeze mounting. For trapeze mounting, add 100 mm to width of tray to order correct size support rail. · · · 16mm spacing from underside of base wire to wall · · Fixing without nuts and bolts · · Fast assembling · · Slot base wires of the tray into the support rail and bend tabs with screwdriver to secure
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Channel Colour Grey Model Single channel Material Steel Profile shape S-profile Type of perforation Slotted Surface protection Pre-galvanised Width 68 mm RAL number – Height 25 mm Weight – kg Length 194 mm Load bearing capacity 1 kN Hole width 8.5 mm Slit width 25 mm Area moment of inertia Iy – cm4 Moment of resistance Wy – cm³ Layer thickness surface protection – µm Area of inertia Iz – cm4 Moment of resistance Wz – cm³ Material thickness 1.5 mm With toothing No Suitable for circuit integrity No Snap-off No · Technical Data Sheet – Click to Download
