Legrand Rail Wall/Ceiling/Floor/Beam Support 500mm Pre-Galvanised
£7.31 Incl. VAT

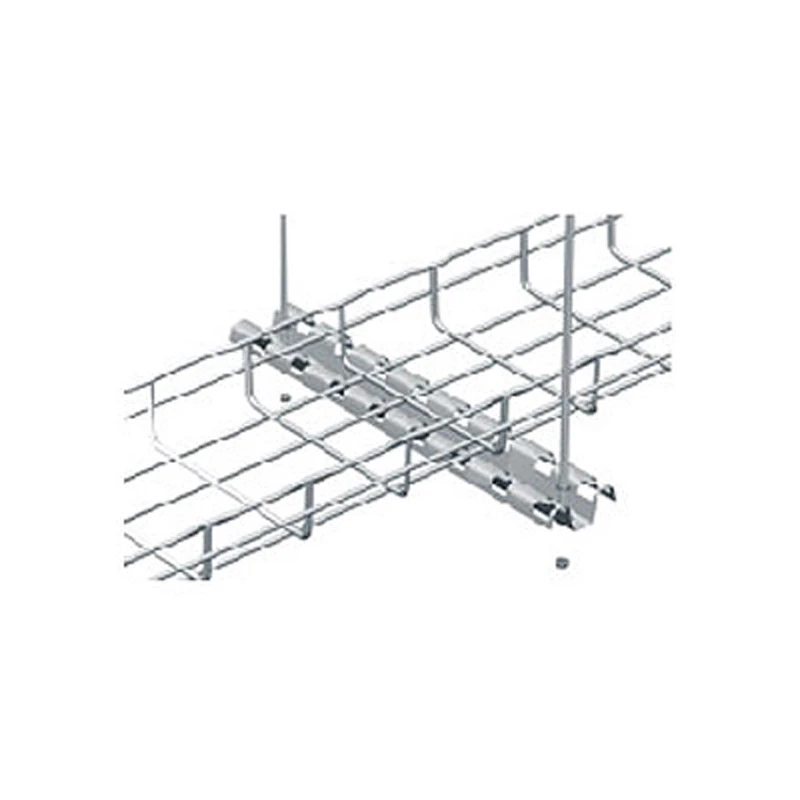

Legrand RCSN Pre-Galvanised Fast Fix Support Rail can be used for floor, wall and trapeze mounting. · · · Mount directly onto wall using fasteners to run tray in a vertical or horizontal direction · · Slot base wires of the tray into the support rail and bend tabs with screwdriver to secure · · Fast assembling · · Fixing without nuts and bolts · · Capacity: 1kN · · Finish: Pre-galvanized · · Finish: Pre-galvanized
Description
Technical Specifications Technical Specifications Channel Model Single channel Material Steel Profile shape S-profile Type of perforation Slotted Surface protection Pre-galvanised Width 68 mm Length 494 mm Weight – kg Slit width 25 mm Material thickness 1.5 mm RAL number – Height 25 mm Load bearing capacity 1 kN Area moment of inertia Iy – cm4 Moment of resistance Wy – cm³ Hole width 8.5 mm Layer thickness surface protection – µm Area of inertia Iz – cm4 Moment of resistance Wz – cm³ Suitable for circuit integrity No With toothing No Snap-off No
