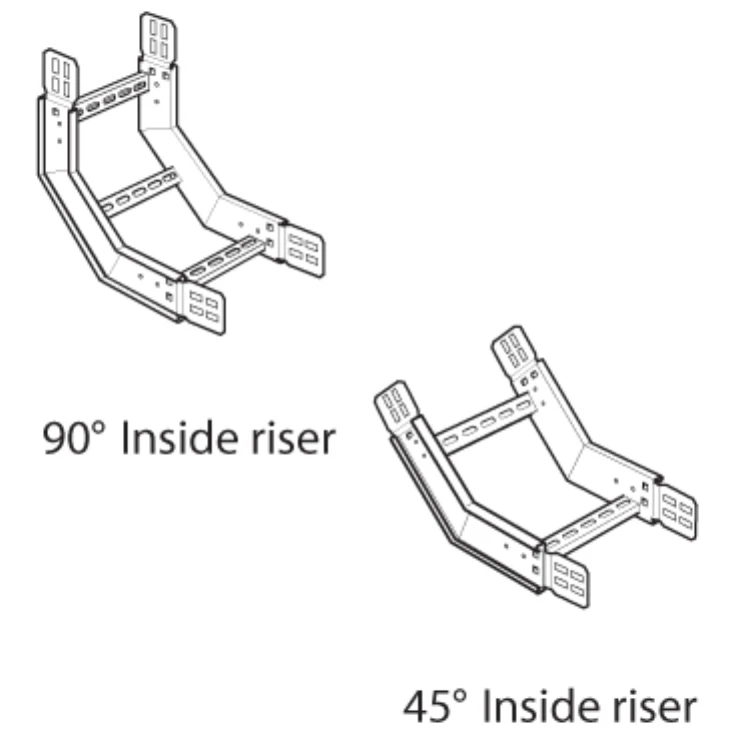

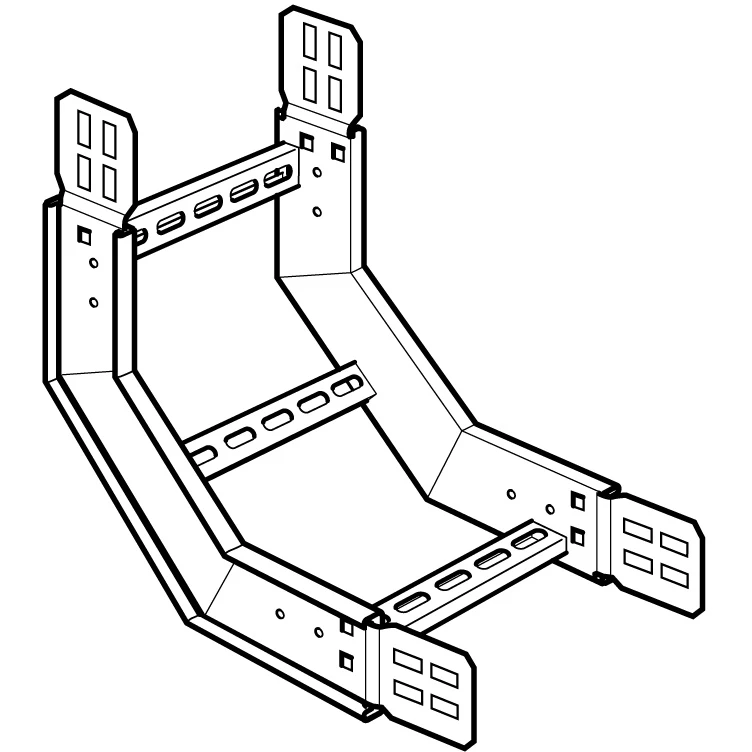

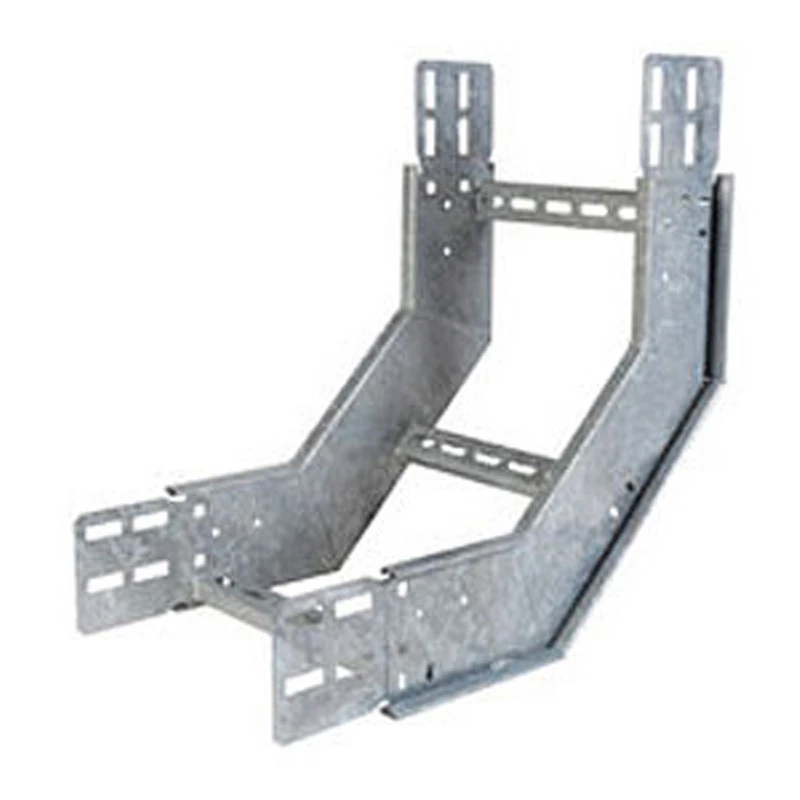

Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder
Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder
Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder - Image 2
Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder - Image 3
Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder - Image 4

Legrand Riser 90° Angle Inside 300mm 300R Hot Dipped Galvanised for Cable Ladder

£184.57 Incl. VAT

Swifts Topaz Medium Duty Hot Dipped Galvanised Steel Inside Riser suitable for Swifts® cable ladder system. This comprehensive system of slotted rail cable ladder incorporates all the installation features demanded by contractors and enables the coupling · · · 300mm inner radius · · 90° deflection angle · · Profile (open) side joist type · · Perforated profile rug · · Integrated connector · · Change of direction: Vertically rising · · Type of side joist: Profile (open) · · Bend model: Segmental bend · · Suitable for cable ladder height: 100 mm · · Suitable for cable ladder width: 340 mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZIR30090300G Categories: , , , Brand: Product Code: 2500048830

Description

Technical Specifications  Technical Specifications Bend for cable ladder Change of direction Rising vertically Bend model Segmented bend Material Steel Type of side wall Channel (open) Model Integrated coupler Angle 90° Surface protection Hot dip galvanized Type of rung Slotted channel RAL number – Suitable for cable ladder height 100 mm Inner radius 300 mm Suitable for cable ladder width 340 mm Hinged No Suitable for circuit integrity No Side wall perforation No · Technical Data Sheet – Click to Download
