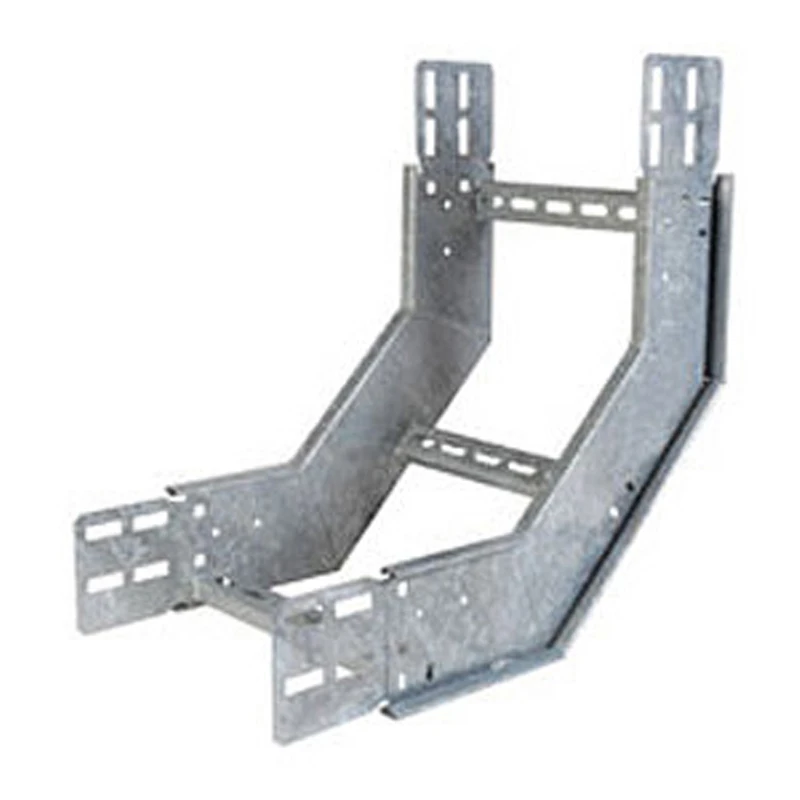

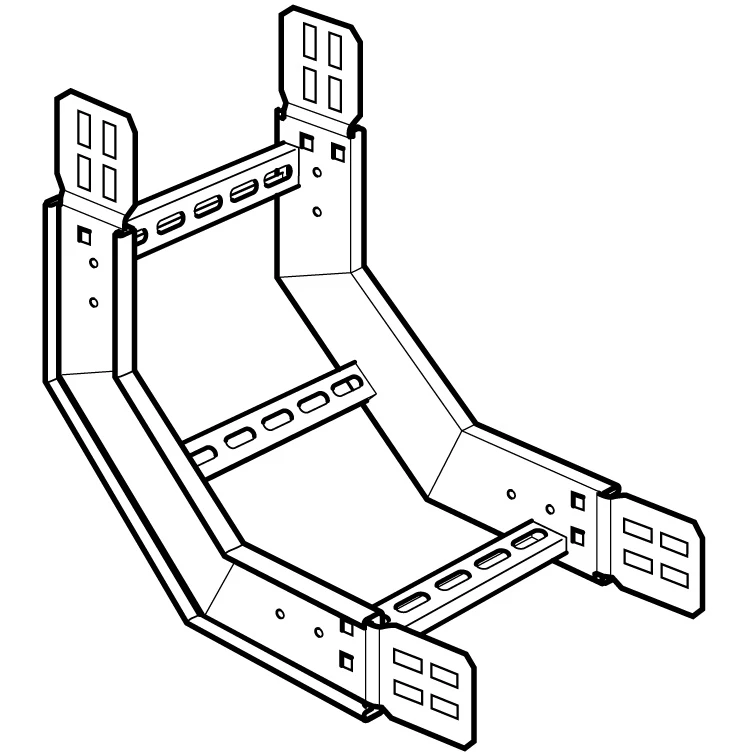

Legrand Riser 90° Angle Inside 450mm 300R Hot Dipped Galvanised for Cable Ladder

SKU: ZIR45090300GGo Magpie ID: 5060062453105

Swifts Topaz Medium Duty Hot Dipped Galvanised Steel Inside Riser; suitable for Swifts® cable ladder system. This comprehensive system of slotted rail cable ladder incorporates all the installation features demanded by contractors and enables the coupling · · · 90° deflection angle · · 300mm inner radius · · Horizontal change of direction · · Profile (open) side joist type · · Perforated profile rug · · Integrated connector · · Change of direction: Vertically rising · · Type of side joist: Profile (open) · · Type of rung: Perforated profile · · Bend model: Segmental bend

£316.03inc VAT£263.36 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Bend for cable ladder Change of direction Rising vertically Material Steel Bend model Segmented bend Type of side wall Channel (open) Surface protection Hot dip galvanized Angle 90° Model Integrated coupler Type of rung Slotted channel RAL number – Suitable for cable ladder height 100 mm Suitable for cable ladder width 490 mm Inner radius 300 mm Hinged No Suitable for circuit integrity No Side wall perforation No · Technical Data Sheet – Click to Download
