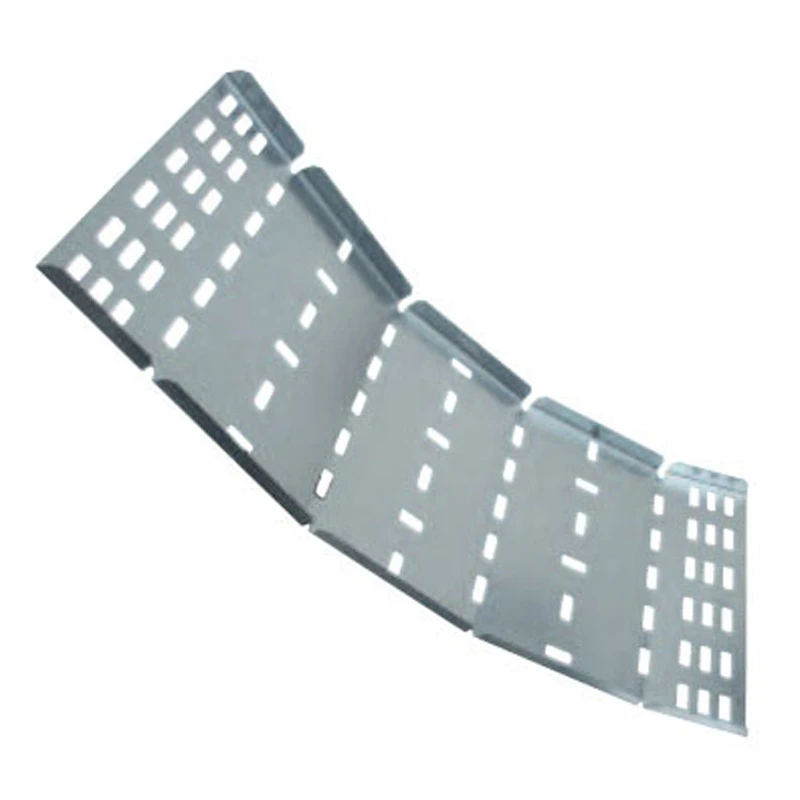

Legrand Riser Adjustable 100mm Pre-Galvanised Steel for Cable Tray
£20.41 Incl. VAT
Swifts MRF Medium Duty Galvanised Steel Adjustable Riser used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Ava · · · Strength tested to British Standards · · Cuts total installed cost · · At least four times faster to fit · · Available for external and internal applications · · No tools needed · · The innovative, quick-fit choice · · Surface protection: Continuously galvanized · · Operating / setting temperature: -20-120 °C · · Bottom perforation: Yes
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Change of direction Rising/descending Model Integrated coupler Surface protection Pre-galvanised Angle Adjustable Construction type Adjustable bend RAL number – Suitable for cable tray width 100 mm Material thickness 1 mm Suitable for cable tray height 25 mm Working temperature -20 – 120 °C Inner radius 100 mm Suitable for circuit integrity No Stainless steel, pickled No With cover No NATO-mounting holes No Mounting perforation in base Yes Side wall perforation No · Technical Data Sheet – Click to Download
