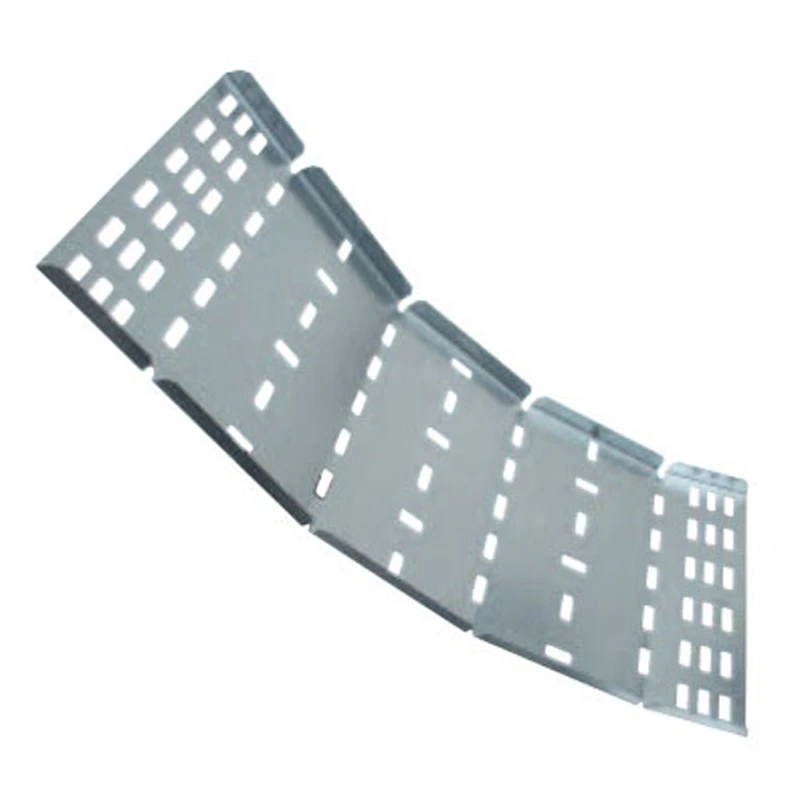

Legrand Riser Adjustable 225mm Hot Dipped Galvanised for Cable Tray

SKU: SRFAR225GGo Magpie ID: 5060062450889

Swifts SRF Heavy Duty Galvanised Steel Adjustable Riser used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Avai · · · Strength tested to British Standards · · Cuts total installed cost · · At least four times faster to fit · · Available for external and internal applications · · No tools needed · · The innovative, quick-fit choice · · Integral coupling tabs and fishplates, no couplers required · · Construction type: Vertical adjustable bend complete · · Suitable for cable tray height: 50 mm · · Suitable for cable tray width: 225 mm

£55.02inc VAT£45.85 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Model Integrated coupler Change of direction Rising/descending Construction type Adjustable bend Surface protection Hot dip galvanized Angle Adjustable Material thickness 1.5 mm RAL number – Suitable for cable tray width 225 mm Suitable for cable tray height 50 mm Inner radius 225 mm Working temperature -20 – 120 °C Side wall perforation No Mounting perforation in base Yes Suitable for circuit integrity No Stainless steel, pickled No With cover No NATO-mounting holes No · Technical Data Sheet – Click to Download
