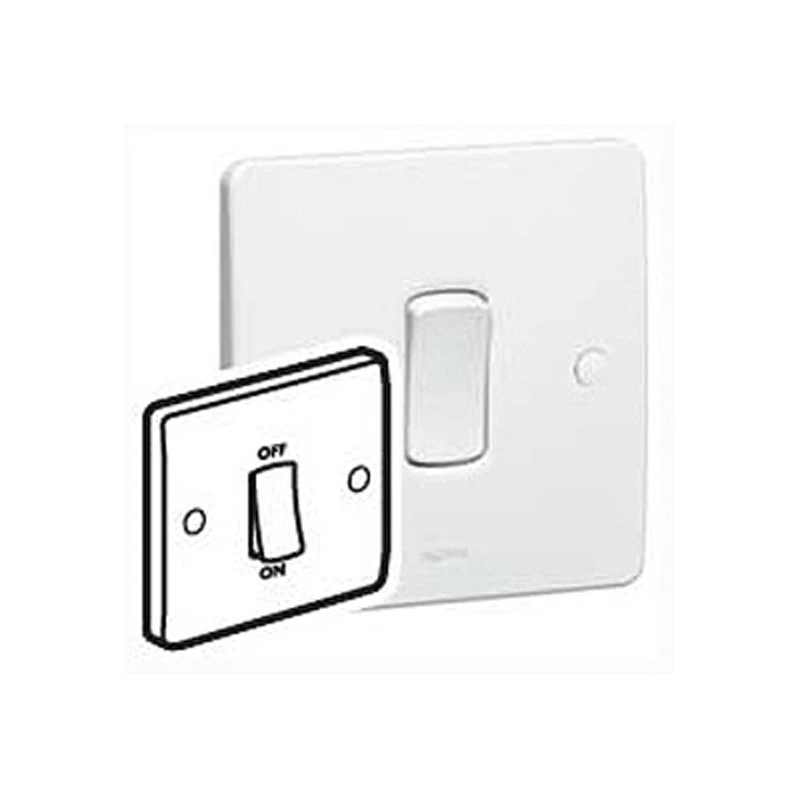

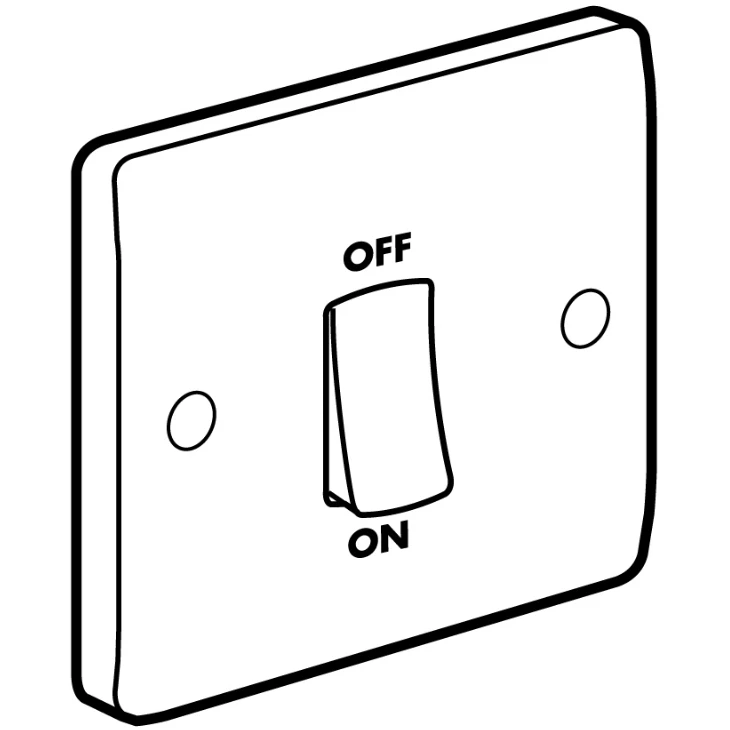

Legrand Switch Double Pole Flush 45A White
Legrand Switch Double Pole Flush 45A White
Legrand Switch Double Pole Flush 45A White - Image 2
Legrand Switch Double Pole Flush 45A White - Image 3

Legrand Switch Double Pole Flush 45A White

£12.20 Incl. VAT

· · Colour: White · · Min Box Depth: 35mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 730022 Brand: Product Code: 2500162461

Description

Technical Specifications  Technical Specifications Switch Material Plastic Wiring system 2-pole switch Degree of protection (IP rating) IP2X Material qualifier Urea formaldehyde Connection type Screwed terminal Type of fastening Screw mounting Method of operation Rocker Colour of rocker/switch operator White Mounting method Flush mounted Colour White Assembly Basic unit with full cover plate Impact resistance (IK rating) IK01 Surface protection Untreated Surface finish Glossy Illumination No Label space/information surface No Nominal voltage 250 V RAL-number (similar) 9003 Depth of device 35 mm Number of rockers/gangs 1 Switching current for fluorescent lamps 45 AX Rated current 45 A Height of device 86 mm Width of device 86 mm Number of module spaces (modular system) – Recess depth 22 mm Minimum depth of back box 30 mm Compatible with Apple HomeKit No Halogen free Yes IFTTT support available No Antibacterial treatment No Feedback-signal contact No Push button switch No Washing machine switch Yes Heating switch No With mounting plate No Compatible with Amazon Alexa No Compatible with Google Assistant No Compliant with Building Regulations Part M No · Technical Data Sheet – Click to Download
