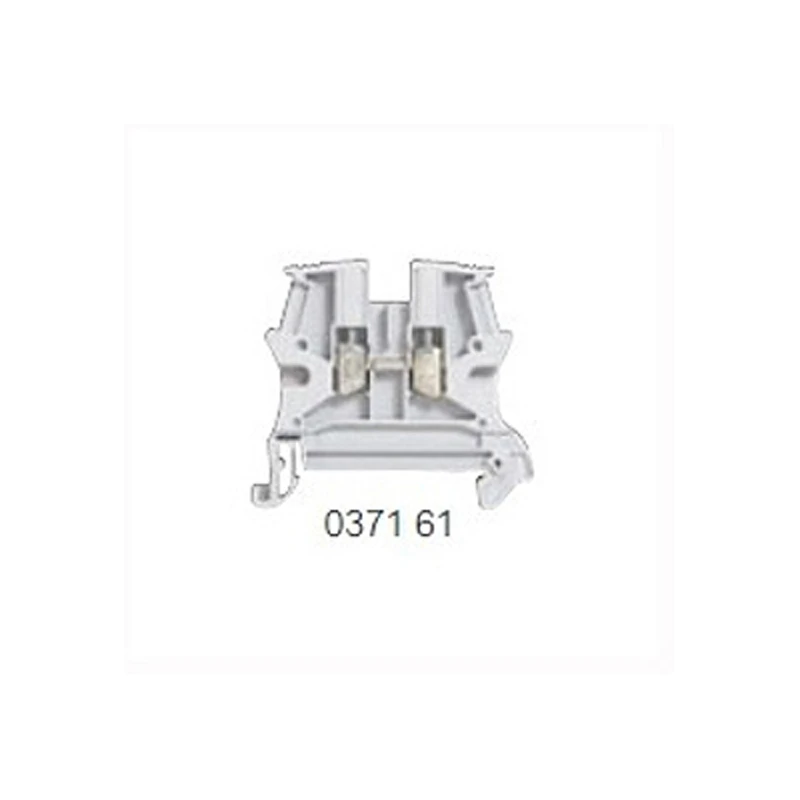

Legrand Term Block 1 Screw Connect 1 Entry 1 Outlet 4mm Grey Rail Mounting

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Grey Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Rated voltage 800 V Type of electrical connection 2 Screw connection Height 46.5 mm Number of clamp positions per level 2 Width 6 mm Rated current In 32 A Number of levels 1 Depth 52.5 mm Operating temperature -5 – 40 °C Connectable conductor cross section solid-core 0.25 – 6 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.25 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.25 – 6 mm² Connectable conductor cross section multi-wired 0.25 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes
