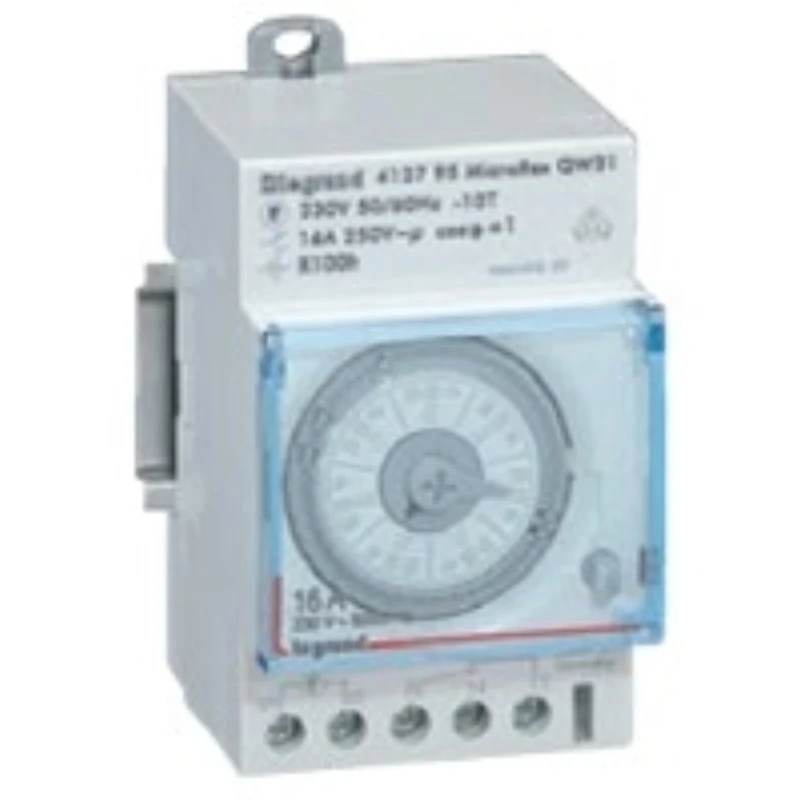

Legrand Time Switch Qw31 Weekly 16A 230V

Description

Technical Specifications  Technical Specifications Analogue time switch for distribution board Contact type Change-over contact Degree of protection (IP rating) IP20 Mounting method DIN rail Voltage type of supply voltage AC Height 83 mm Depth 60 mm Width 52.5 mm Width in number of modular spacings – Accuracy per day 2.5 s Program shift divide 2 – min Nominal switching current at 250 V AC 16 A Max. switching power LED – W Program shift divide 1 120 min Autonomy in years – Autonomy in hours 100 Number of channels 1 Supply voltage 230 – 230 V Frequency supply voltage 50 – 60 Hz Weekly program Yes Annual program No Automatic switching summer-/winter time No 60 min. program No 24 h program No Potential free switch contact Yes Manual operation Yes Switching preselection Yes Quartz controlled Yes Mains synchronous No
