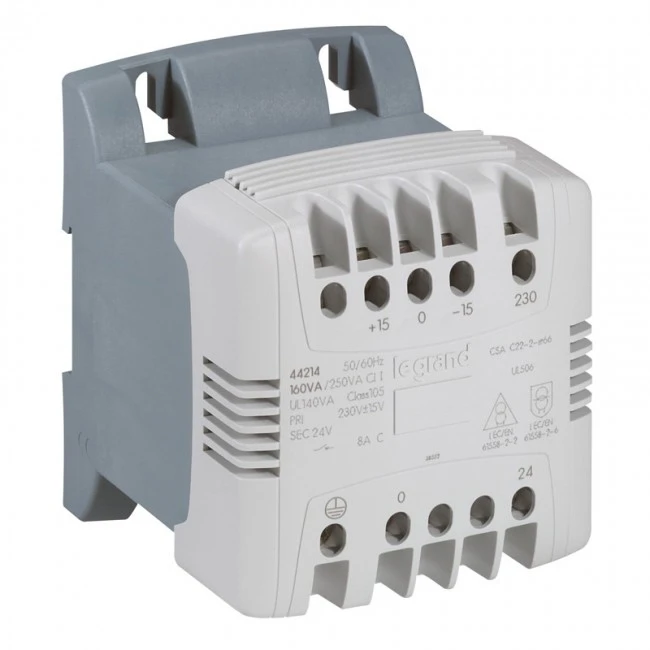

Legrand Transformer Control 1Phase Open Type 100Va 230-400V/115-230V

Description

Technical Specifications  Technical Specifications One-phase control transformer Type of insulation material acc. IEC 85 B Degree of protection (IP rating) IP2X Width 94 mm Height 94 mm Depth 113 mm Relative short circuit voltage 8.71 % Power consumption in standby mode – W Power – W Primary voltage 2 230 – 230 V Rated apparent power 100 VA Primary voltage 1 215 – 215 V Primary voltage 4 385 – 385 V Primary voltage 3 245 – 245 V Primary voltage 8 – – – V Primary voltage 9 – – – V Secondary voltage 4 – – – V Primary voltage 5 400 – 400 V Secondary voltage 5 – – – V Primary voltage 6 415 – 415 V Secondary voltage 6 – – – V Primary voltage 7 – – – V Secondary voltage 7 – – – V Secondary voltage 1 115 – 115 V Secondary voltage 10 – – – V Secondary voltage 2 230 – 230 V Secondary voltage 3 – – – V Primary voltage 10 – – – V Secondary voltage 8 – – – V Secondary voltage 9 – – – V Built as isolating transformer Yes Built as safety transformer No Suitable for mounting on PCB No Modular version Yes Short-circuit-proof No Built as energy saving transformer No Ring core No
