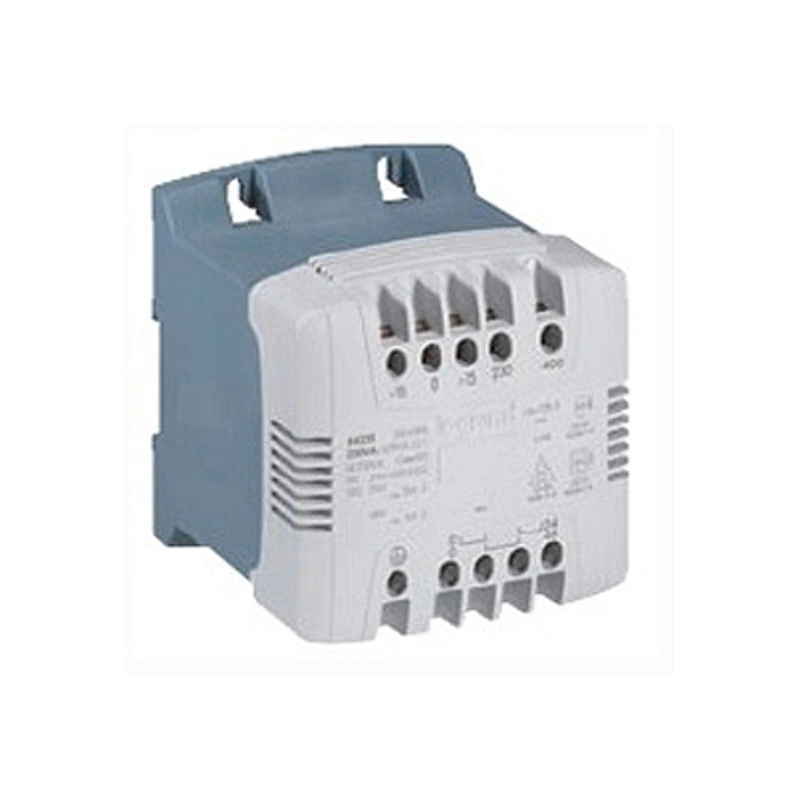

Legrand Transformer Control Single Phase Open Type 250Va 230-400V/24-48V

Description

Technical Specifications  Technical Specifications One-phase control transformer Type of insulation material acc. IEC 85 B Degree of protection (IP rating) IP2X Width 106 mm Relative short circuit voltage 6.09 % Power consumption in standby mode – W Rated apparent power 250 VA Power – W Height 123 mm Depth 115 mm Primary voltage 2 230 – 230 V Primary voltage 4 385 – 385 V Primary voltage 1 215 – 215 V Primary voltage 3 245 – 245 V Primary voltage 9 – – – V Primary voltage 8 – – – V Secondary voltage 4 – – – V Primary voltage 5 400 – 400 V Secondary voltage 5 – – – V Primary voltage 6 415 – 415 V Secondary voltage 6 – – – V Primary voltage 7 – – – V Secondary voltage 7 – – – V Secondary voltage 1 24 – 24 V Secondary voltage 10 – – – V Secondary voltage 2 48 – 48 V Secondary voltage 3 – – – V Primary voltage 10 – – – V Secondary voltage 9 – – – V Secondary voltage 8 – – – V Short-circuit-proof No Built as energy saving transformer No Built as isolating transformer No Built as safety transformer Yes Suitable for mounting on PCB No Modular version Yes Ring core No
