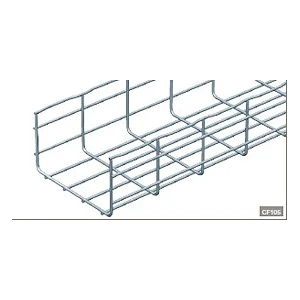

Legrand Wire Basket 105X450mmx3M Hot Dipped Galvanised

Description

Technical Specifications  Technical Specifications Wire cable tray/basket Integrated partition None Material Steel Profile shape U-shape Colour Zinc Model Coupler not included Width 450 mm Surface protection Hot dip galvanized Useful cross section 47250 mm² Length 3000 mm Weight 3.83145671 kg/m Height 105 mm RAL number – Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Diameter longitudinal wire – mm Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Diameter transverse wire – mm Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Suitable for circuit integrity No
