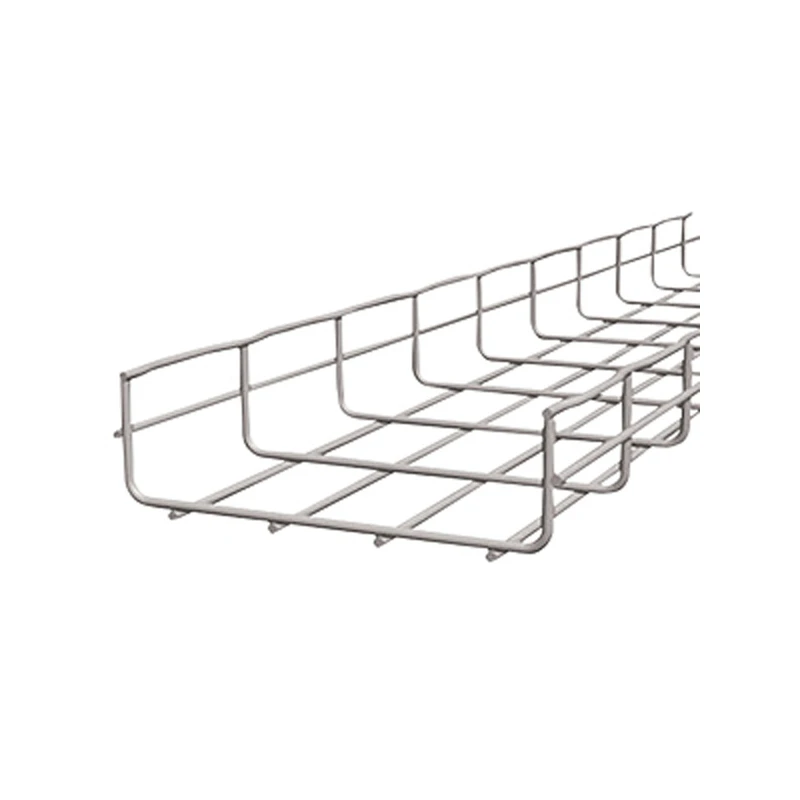

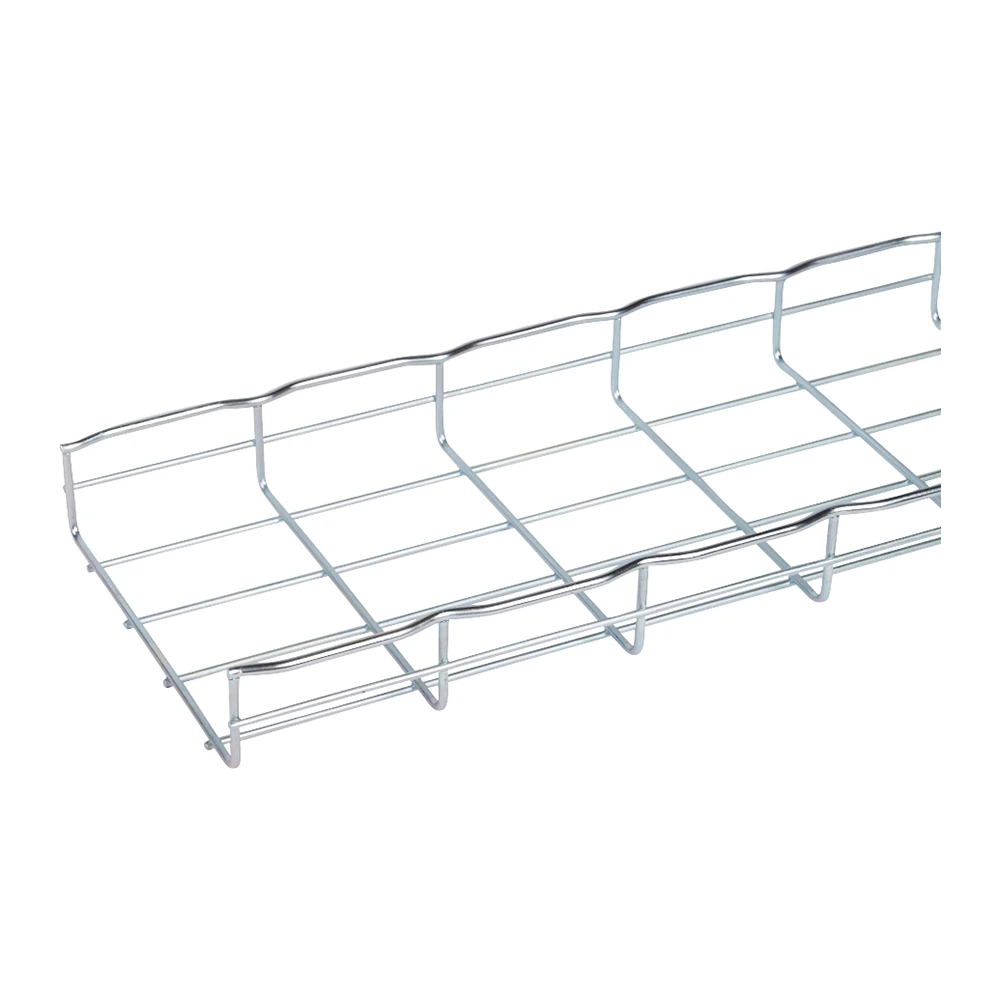

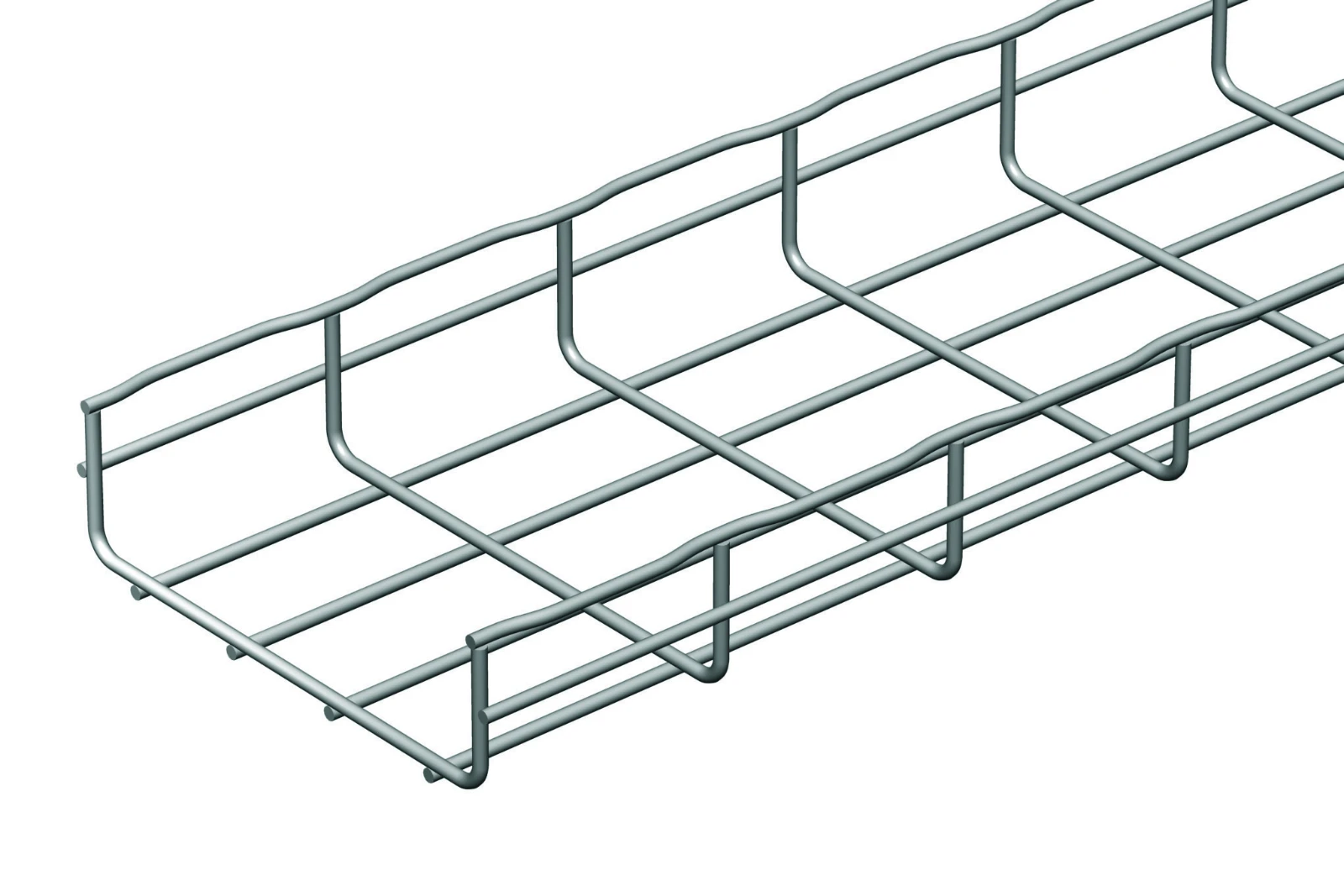

Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated
Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated
Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated - Image 2
Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated - Image 3
Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated - Image 4

Legrand Wire Basket 54 x 200mm x 3m Electro-Zinc Plated

£23.10 Incl. VAT

Wire basket tray made up of a steel body construction complete with electro-galvanized zinc plated finish, designed to provide natural ventilation as well as a greater cable efficiency. · · · 10,800mm² cross-section · · Screwless connector · · U-Profile Shape

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CM000091 Categories: , , Brand: Part Number: 2500046300

Description

Technical Specifications  Technical Specifications Wire cable tray/basket Integrated partition None Material Steel Colour Zinc Surface protection Galvanic/electrolytic zinc plated Profile shape U-shape Model Coupler not included Width 200 mm Height 54 mm Useful cross section 10293 mm² Wire diameter 5.5 mm RAL number – Weight 1.34141556 kg/m Diameter transverse wire – mm Length 3000 mm Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Diameter longitudinal wire – mm Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Screwless connector Yes Wide span model No Suitable for circuit integrity Yes Stainless steel, pickled No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
