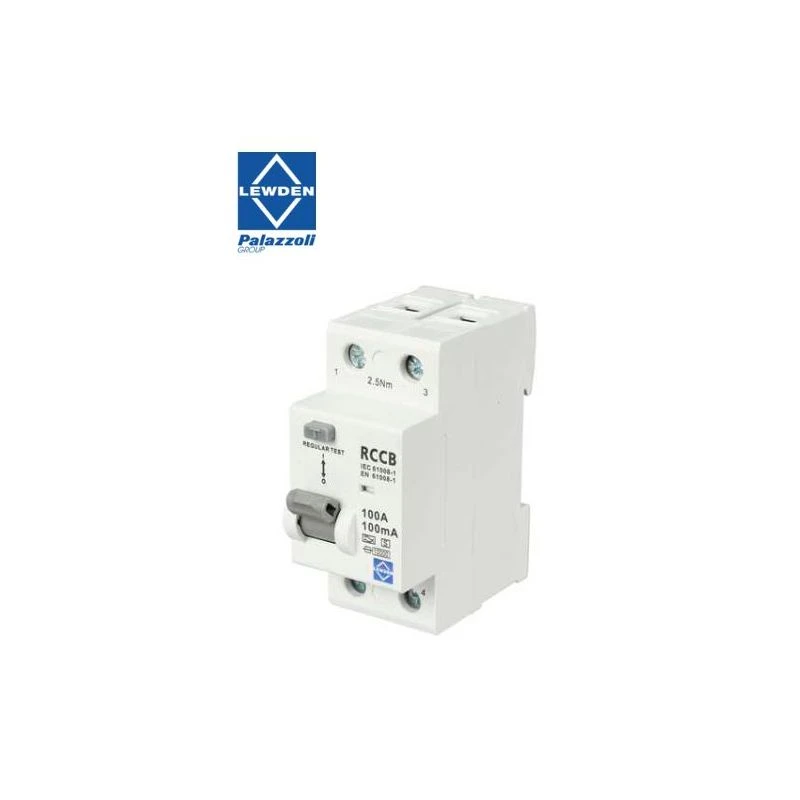

Lewden RCCB Double Pole Type A 100A 100mA
Lewden RCCB Double Pole Type A 100A 100mA
Lewden RCCB Double Pole Type A 100A 100mA - Image 2
Lewden RCCB Double Pole Type A 100A 100mA - Image 3
Lewden RCCB Double Pole Type A 100A 100mA - Image 4

Lewden RCCB Double Pole Type A 100A 100mA

£84.34 Incl. VAT

RCCBs are designed for installation within a Lewden distribution boards, Residual current circuit breakers for single phase applications. Lewden RCCBs are part of our Dual RCCB solutions offer, which are a range of High Integrity Consumer Units, providing individual circuits arranged across two RCCBs, with the additional capability to provide Residual current protection to designated circuits via RCBOs connected directly to the Main Switch · · · Residual current circuit breakers for single phase applications · · Suitable for use in TN-S,TN-C-S, & TT network systems · · Class A · · Designed and tested for use with Lewden branded distribution boards

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 100/100/2SA Categories: , , Brand: Product Code: 2501219153

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Rated voltage 230 V Rated current 100 A Rated insulation voltage Ui – V Recess depth – mm Surge current capacity – kA Short-circuit breaking capacity (Icw) 10 kA Rated impulse-withstand voltage (Uimp) – kV Width in number of modular spacings 4 Rated fault current 1 A Pollution degree 2 Number of poles 2 Ambient temperature during operating – °C Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Selective protection Yes Short-time delayed tripping No With interlocking device No Additional equipment possible No Explosion-proof No · Technical Data Sheet – Click to Download
