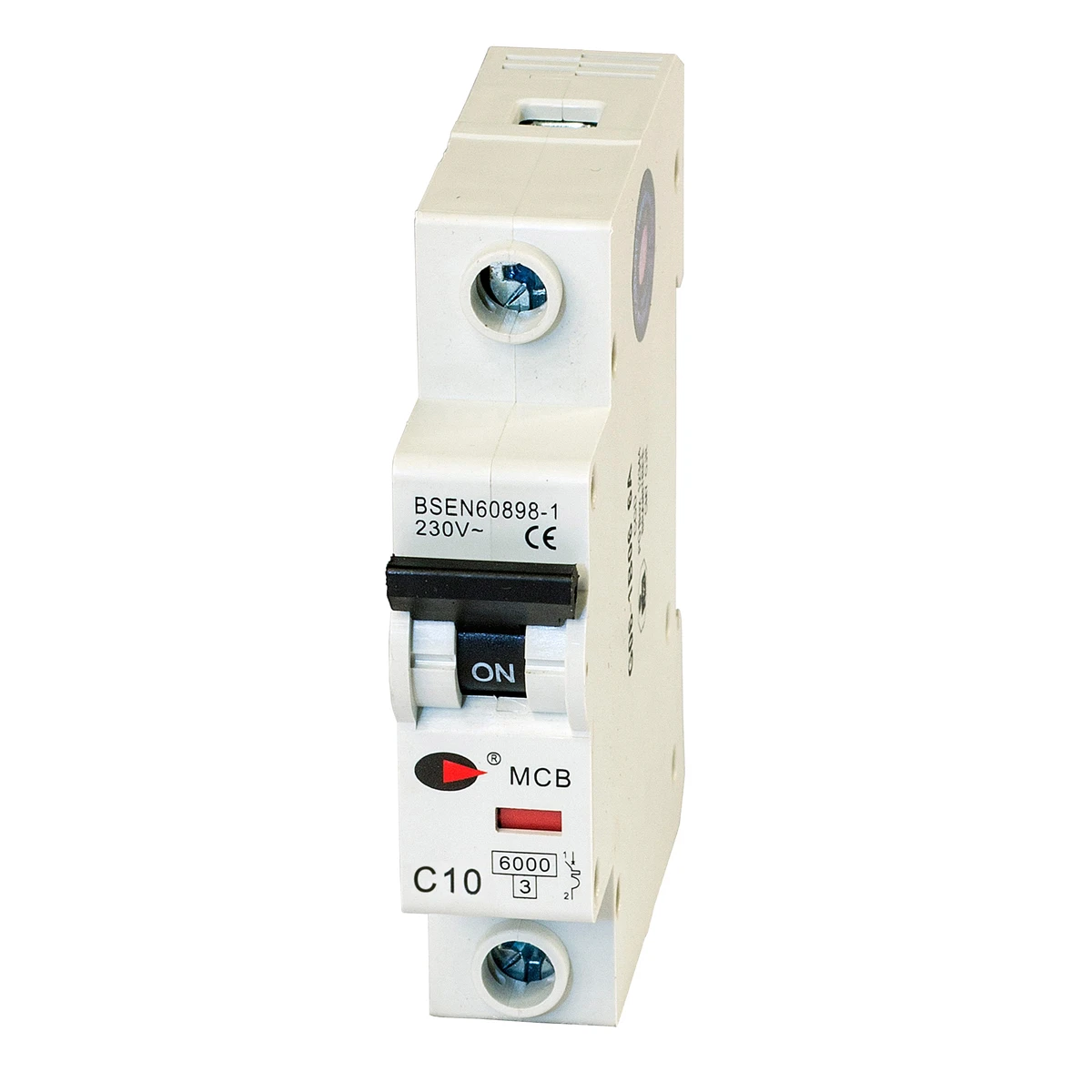

Lewden 10A Single Pole 6kA C Type MCB

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) Angular Rated current 10 A Recess depth 75.5 mm Rated voltage 230 V Number of protected poles – Rated insulation voltage Ui – V Current limiting class – Over voltage category – Width in number of modular spacings – Pollution degree – Number of poles (total) 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated impulse-withstand voltage (Uimp) – kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Connectable conductor cross section solid-core – mm² Frequency 50 – 60 Hz Ambient temperature during operating – °C Connectable conductor cross section multi-wired – mm² Explosion-proof No Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No
