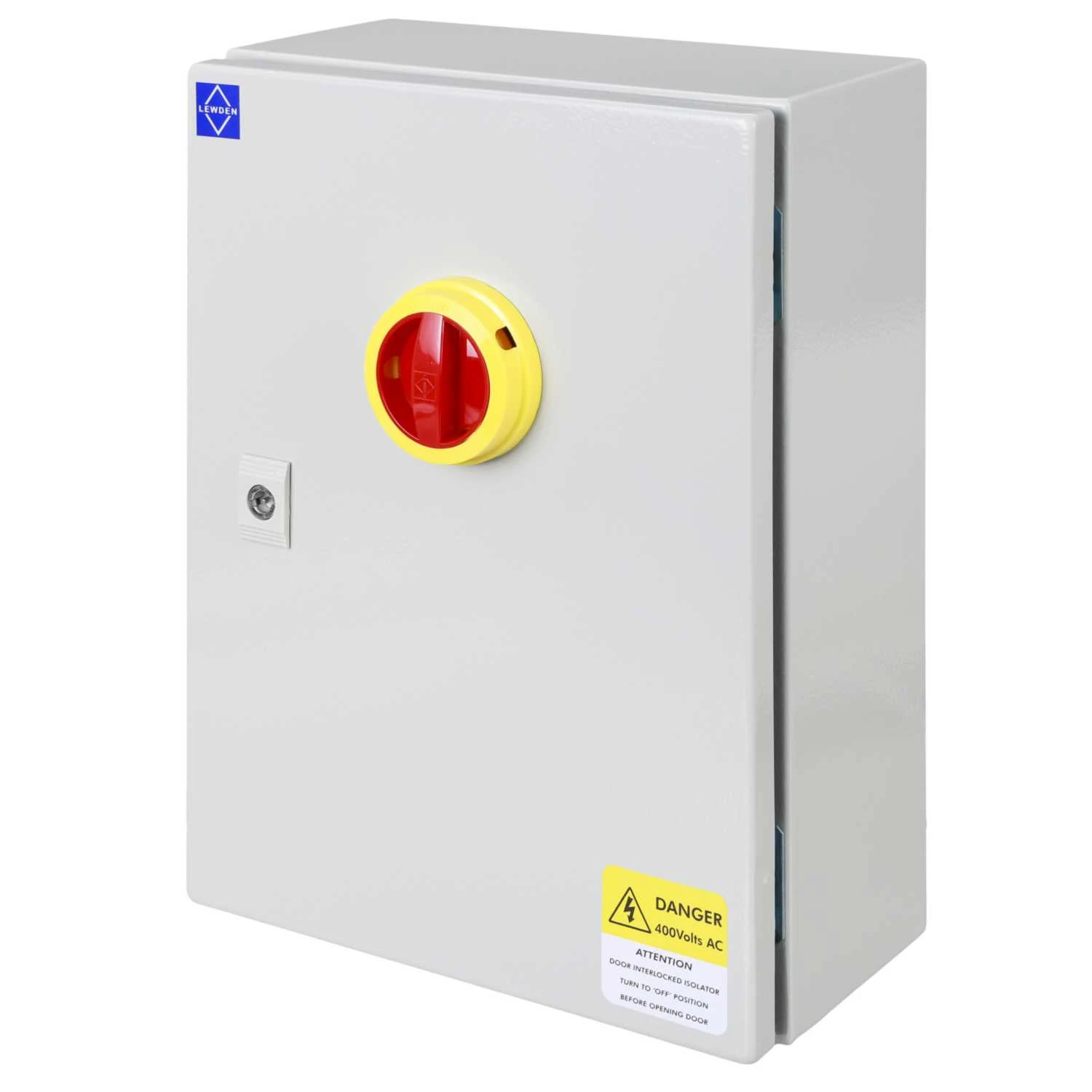

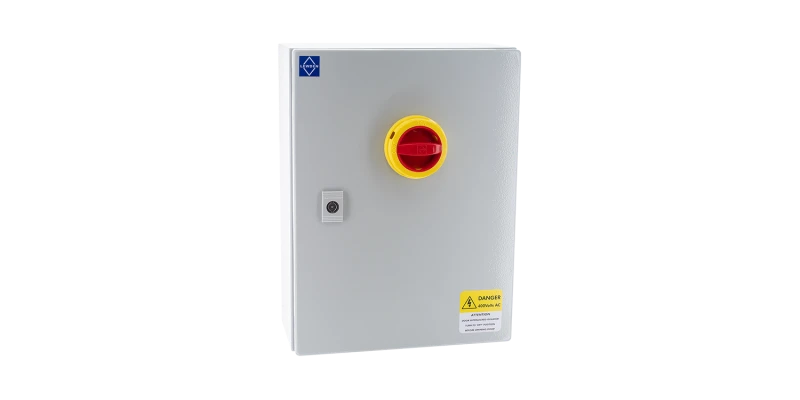

Lewden 500x300x150mm 125A IP65 Steel Metal Clad Fused Disconnector

Lewden 500x300x150mm 125A IP65 Steel Metal Clad Fused Disconnector

£469.69 Incl. VAT

The 500x300x150mm 125A IP65 Steel Metal Clad Fused Disconnector Lewden is a robust and wide enclosure that is fully rated to AC-23A category. This allows for safe operation even with highly inductive loads, such as motors. The enclosure is also padlockable and interlocked, providing an added level of safety. The powder coated mild steel construction ensures durability and a long service life. The wide space inside the enclosure provides plenty of room for comfortable wiring. · · · Robust and wide IP65 Enclosures · · Fully rated to AC-23A category – allows safe operation even with highly inductive loads (e.g. Motors, etc.) · · Pad lockable and interlocked door · · Powder coated mild steel enclosures with a wide space for comfortable wiring

In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: FIS1001254P Category: Brand: Product Code: 2501348140

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 125 A Conditioned rated short-circuit current Iq – kA Max. rated operation voltage Ue AC 400 V Rated operation power at AC-23, 400 V – kW Motor drive integrated No Number of poles 4 Rated short-time withstand current lcw – kA Suitable for busbar mounting No With error protection No Motor drive optional No Equipped with connectors No Version as main switch No Version as safety switch No Version as emergency stop installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
