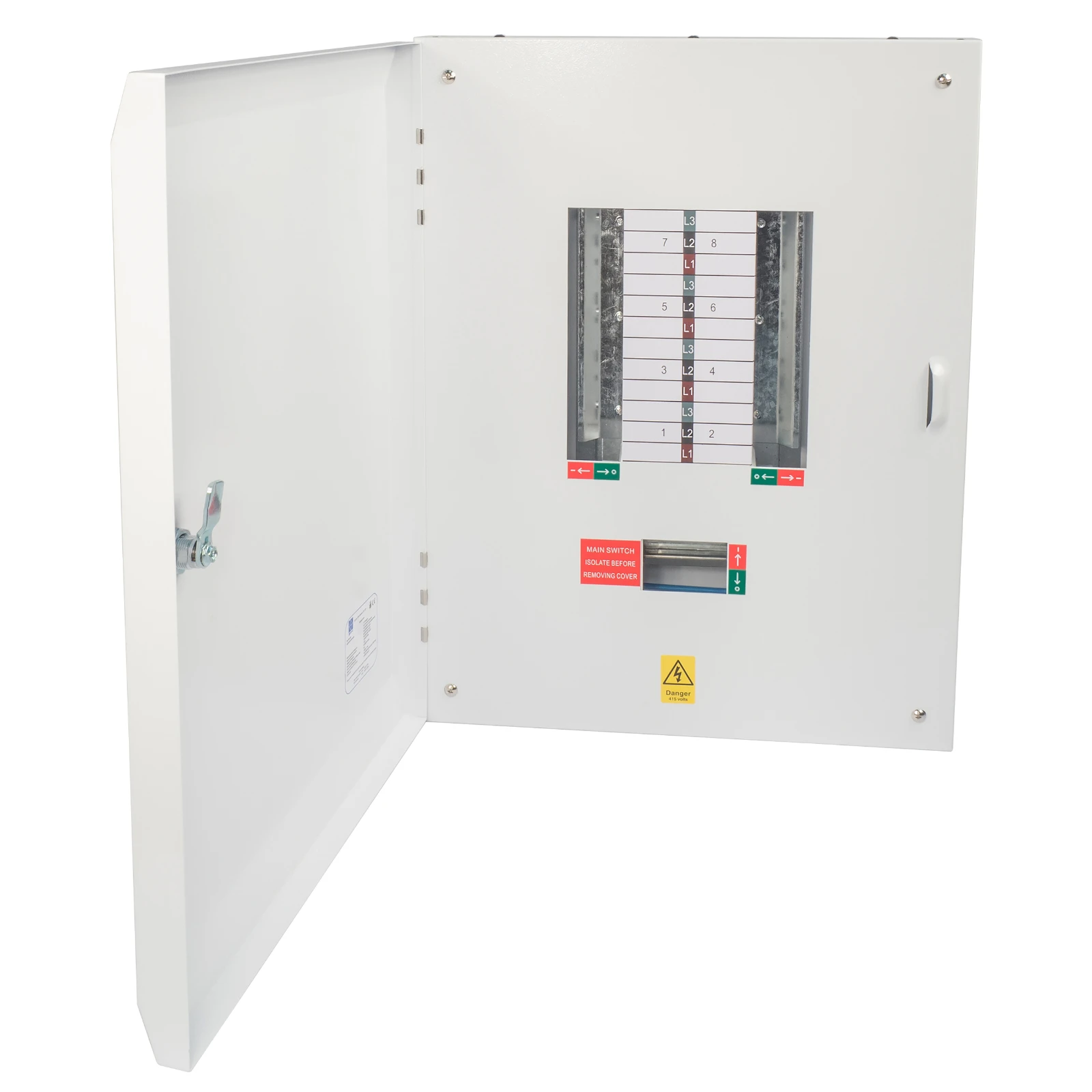

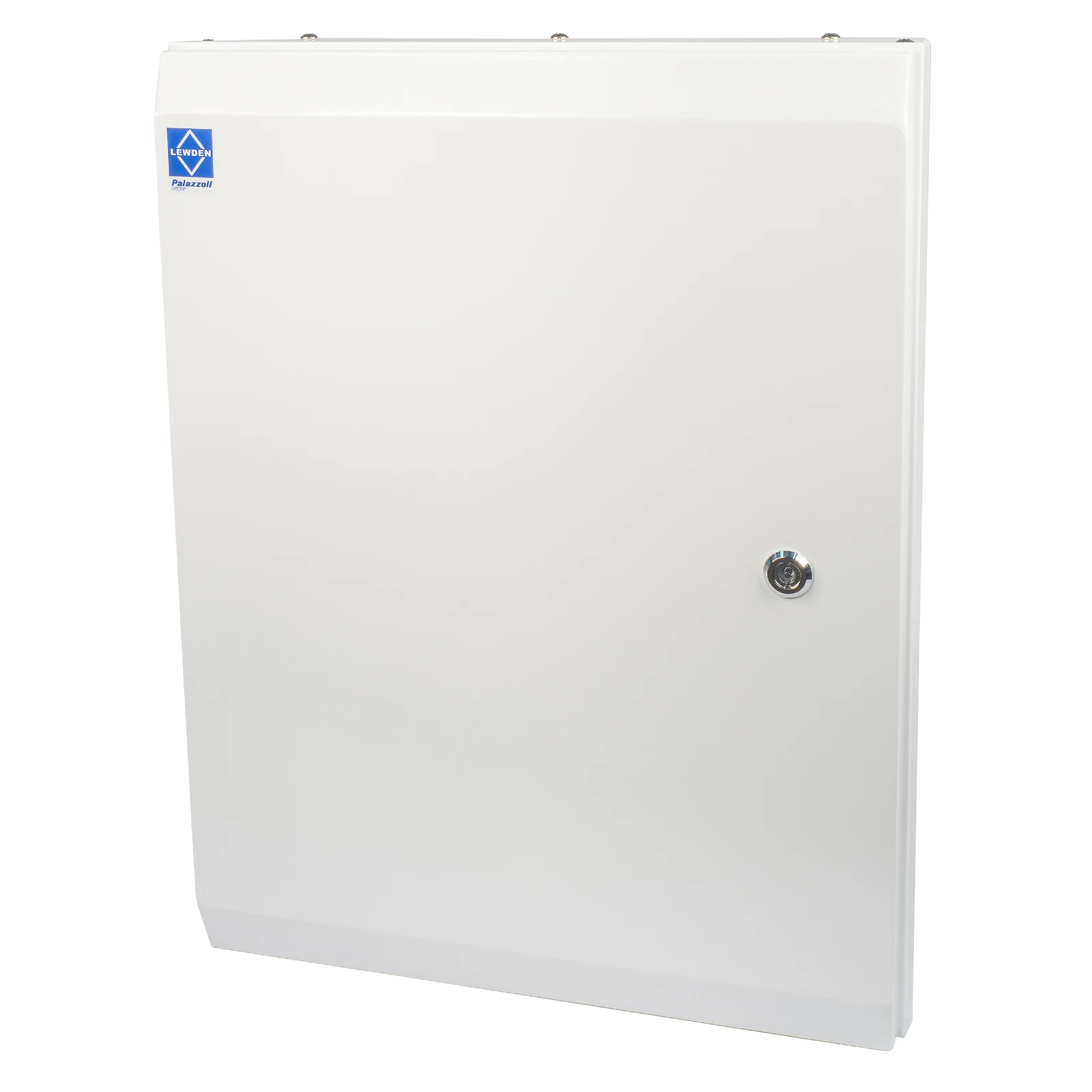

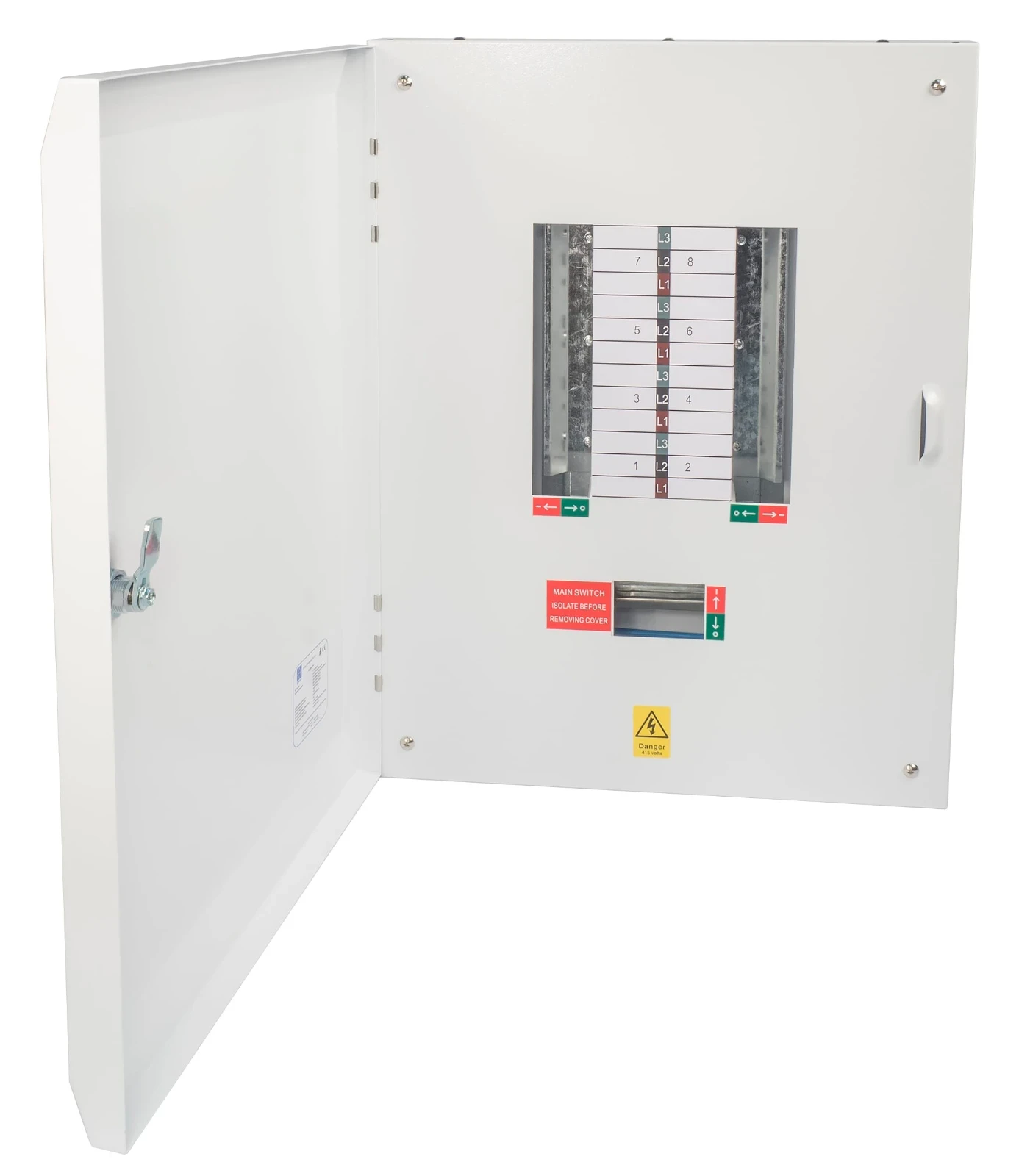

Lewden 8 Way, 125A, Type B without Mains Switch E-TPN08LW
£222.31 Incl. VAT
A complete solution to managing the distribution of electricity in commercial premises. Supplied unpopulated for maximum design flexibility. A compact, flexible board within a compact, modern all steel enclosure. Complies to BS7681:2008 + Amendment 3:2015. Compatible with the Lowden 10kA MCB, RCBO & mains switch range. Heavy gauge (1.2mm) robust steel construction suitable for wall mounting. Low smoke and fume powder coated finish to RAL 9003. · · · 8 Way · · Rigid construction prevents distortion · · Optimal space for simple and safe wiring. · · Earth and neutral termination on both the left and right hand side of board for clear identification of load circuit connections. · · Removable top and bottom gland plates. · · Supplied with lock and key for security · · Suitable for wall mounting · · Incoming terminal capacity 50mm² · · IP2XC · · Incoming terminal capacity 50mm²
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board Height 600 mm Width 458 mm Depth 120 mm With mounting plate No Extension possible No With lock Yes Transparent cover/door No Signal passing door No EMC-version No Neutral terminal block No Earthing terminal block No With DIN-rail No
