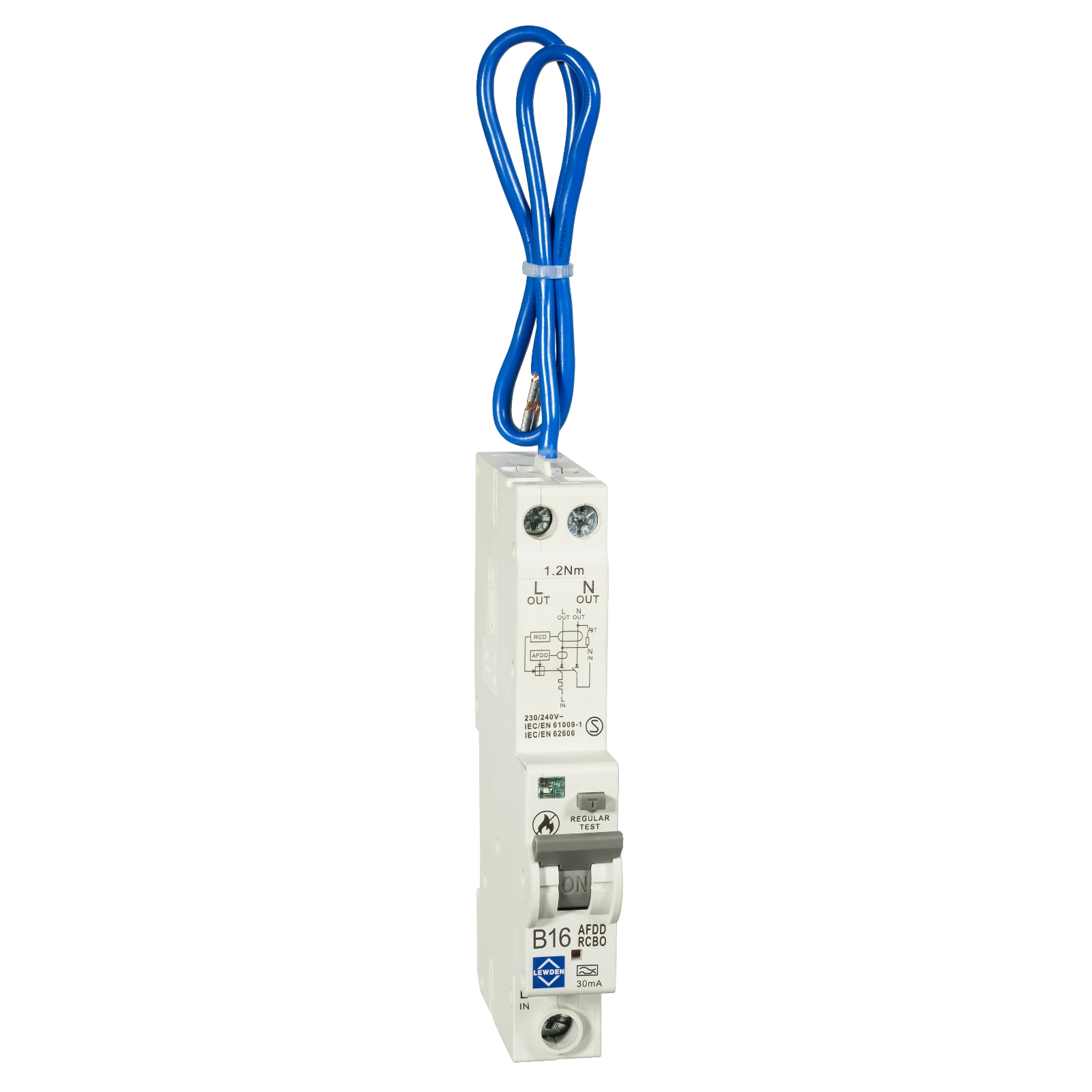

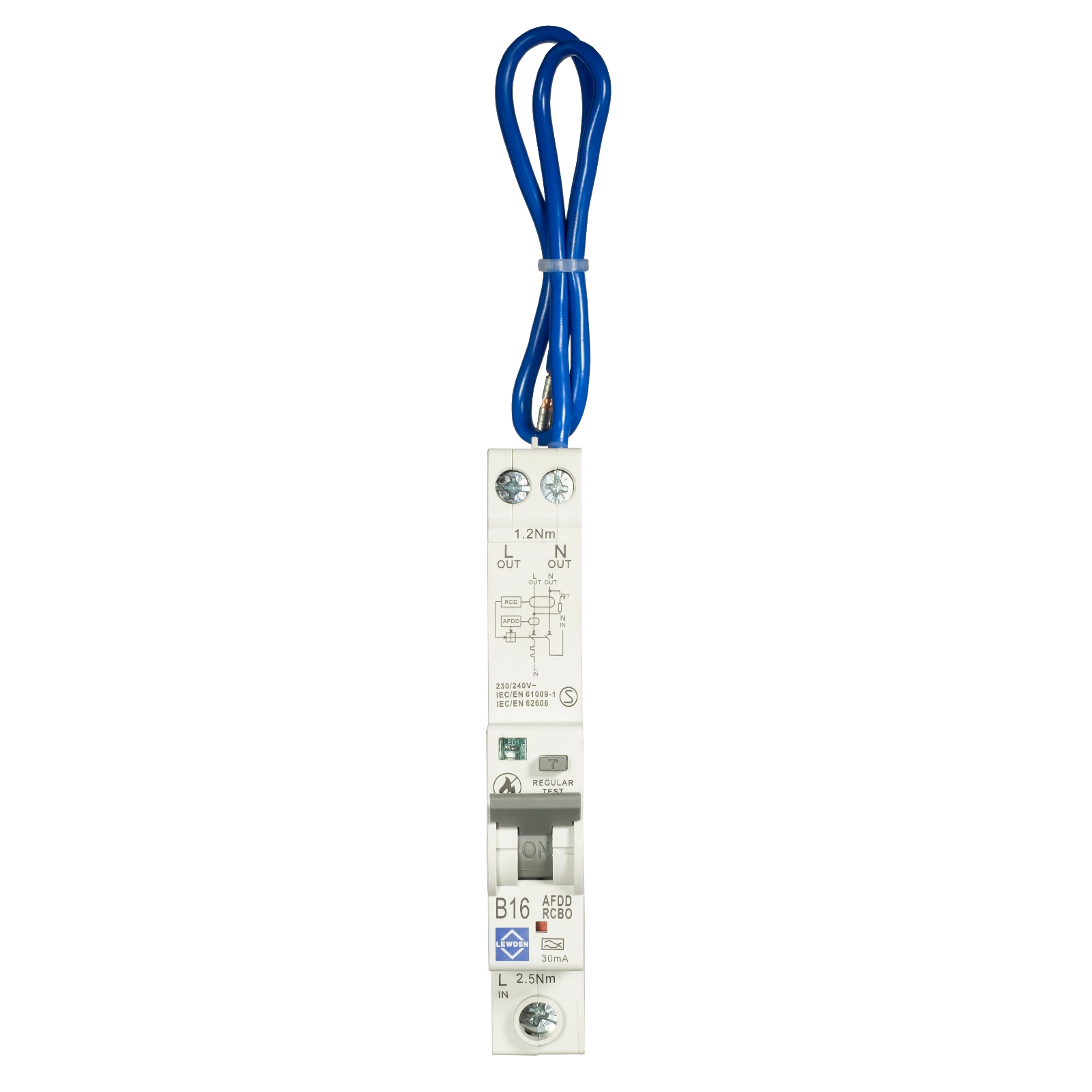

Lewden AFDD RCBO (P04-B16/30/1PNA) 16A
Lewden AFDD RCBO (P04-B16/30/1PNA) 16A
Lewden AFDD RCBO (P04-B16/30/1PNA) 16A - Image 2
Lewden AFDD RCBO (P04-B16/30/1PNA) 16A - Image 3
Lewden AFDD RCBO (P04-B16/30/1PNA) 16A - Image 4

Lewden AFDD RCBO (P04-B16/30/1PNA) 16A

£172.02 Incl. VAT

The Lewden P4 series of combined AFDD & RCBO, provides the highest degree of protection, safeguarding final circuits against the effects of over-current, residual current, arcing faults and over voltages of long duration, all within a single compact device · · · 16A combined AFDD and RCBO · · Provides Arc Fault protection alongside overcurrent, short circuit, residual current and over-voltage protection · · Class A, 30mA RCD · · Single module 18mm width device, fully interchangeable with Switched and un-switched Neutral RCBO’s, and single pole MCB’s · · Provides LED fault identification on reset · · Double Pole Switching for complete isolation in the event of a fault · · Switched Neutral pole significantly reduces the installation and commissioning time · · B curve overcurrent · · 6kA short circuit breaking capacity · · Conforms to BS EN62606 (AFDD) and BS EN61009-1 (RCBO) and suitable for TN & TT earthing systems

15 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: P04-B16/30/1PNA Categories: , , Brand: Part Number: 2501480904

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated impulse-withstand voltage (Uimp) – kV Tripping characteristic (type/curve) B Rated short-circuit breaking capacity according to EN 61009 6 kA Rated current 16 A Recess depth – mm Rated voltage 230 V Surge current capacity – kA Rated short-circuit breaking capacity IEC 60947-2 – kA Current limiting class – Rated insulation voltage Ui – V Rated short-circuit breaking capacity Icn according to EN 61009-1 – kA Over voltage category – Pollution degree – Width in number of modular spacings 1 Rated fault current 3 A Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Connectable conductor cross section solid-core – mm² Flush-mounted installation No Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
