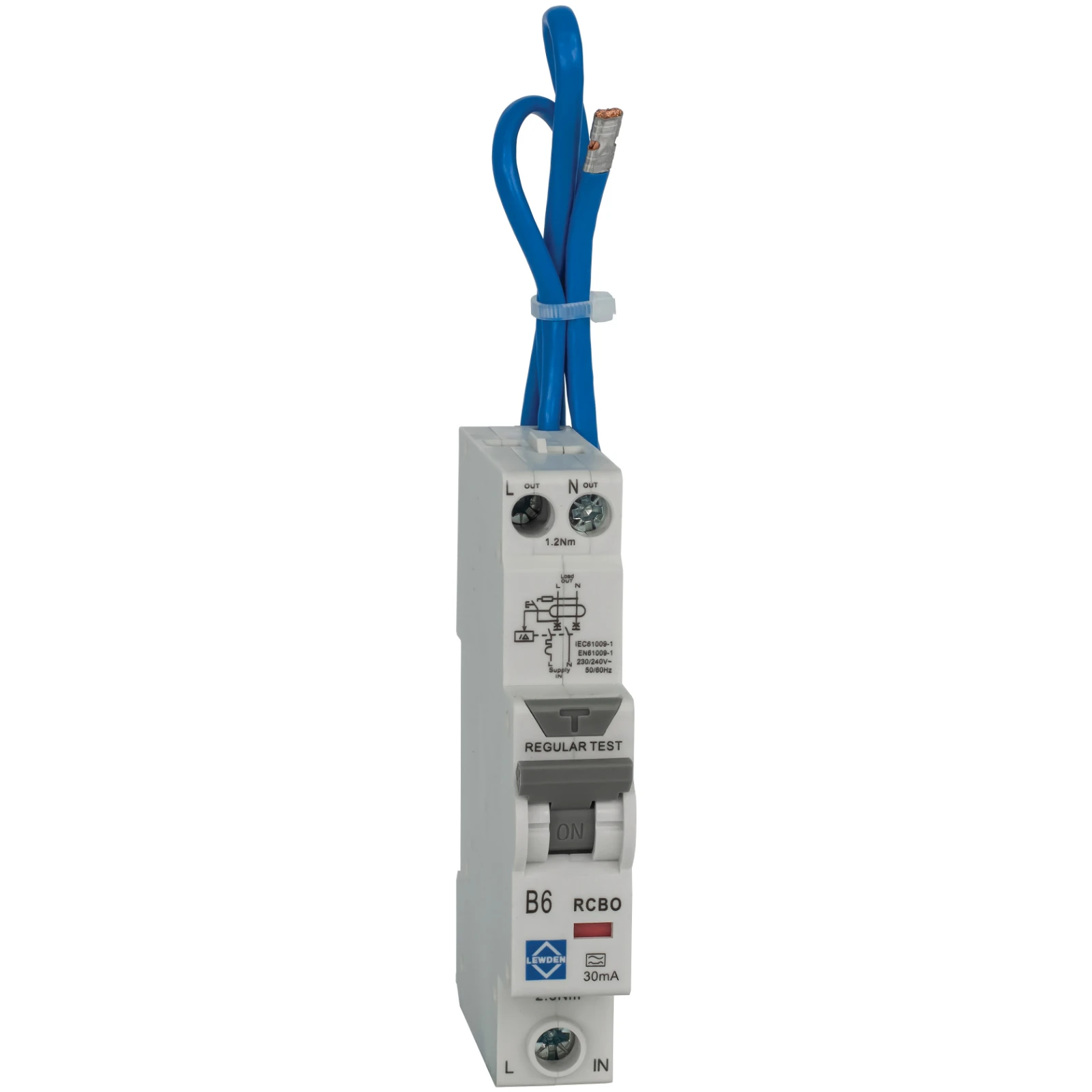

Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral
Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral
Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral - Image 2
Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral - Image 3
Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral - Image 4

Lewden Compact RCBO (RCBO-B06/30/1PNA) Double Pole 30mA Switched Neutral

£26.26 Incl. VAT

Double pole switching for complete isolation of faulty circuits. Neutral pole switching significantly reduces the installation and commissioning test time. Compact 96mm height further increases the available wiring space within the consumer unit. Suitable for TN & TT earthing systems. Particularly suited to installations where double pole isolation of individual circuits may be required · · · Rated current: 6A · · Trip curve: B · · RCD Class: A · · Residual Current: 30mA · · Din Rail Mounted · · Poles: 2P

52 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RCBO-B06/30/1PNA Categories: , , Brand: Part Number: 2501401267

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Rated fault current 3 A Width in number of modular spacings 1 Number of poles (total) 2 Recess depth 75 mm Rated current 6 A Rated short-circuit breaking capacity according to EN 61009 6 kA Rated voltage 230 V Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
