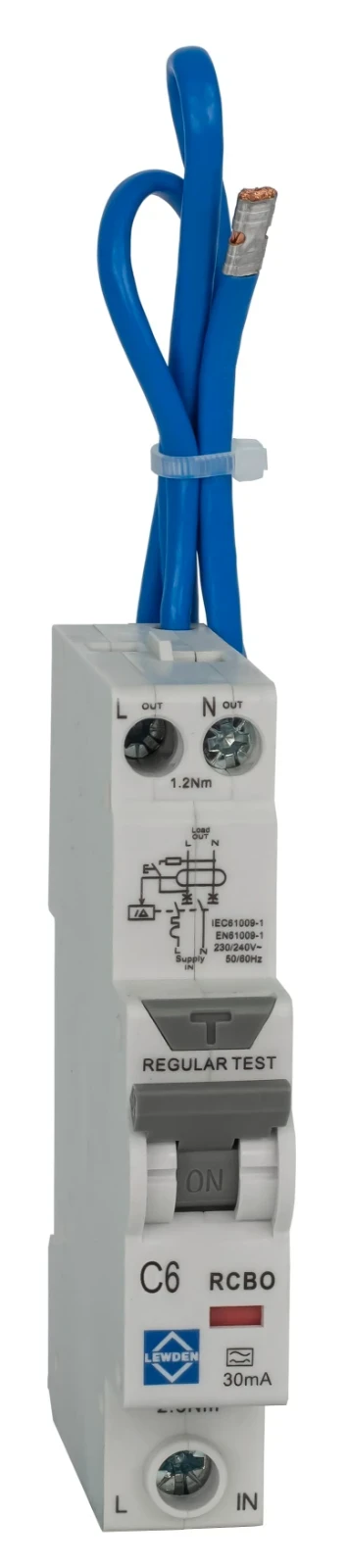

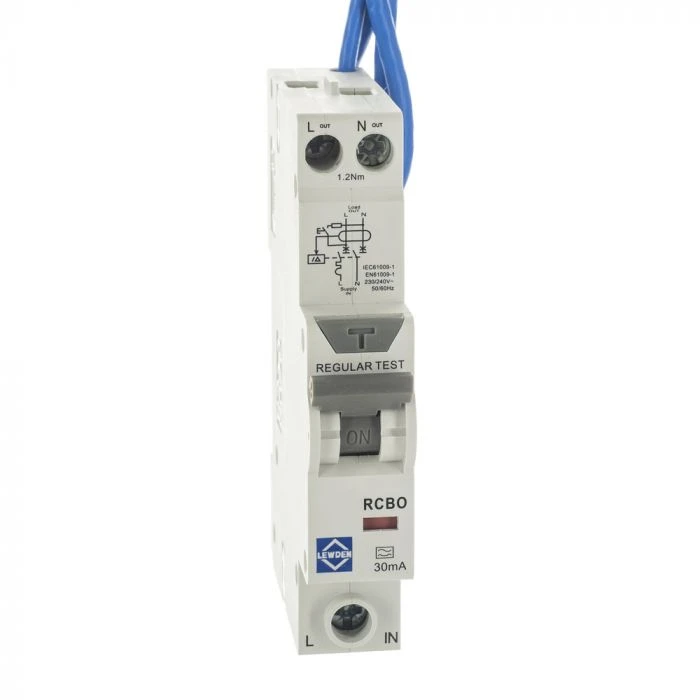

Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral
Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral
Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral - Image 2
Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral - Image 3
Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral - Image 4

Lewden Compact RCBO (RCBO-B10/30/1PNA) Double Pole 30mA Switched Neutral

£26.26 Incl. VAT

Double pole switching for complete isolation of faulty circuits. Neutral pole switching significantly reduces the installation and commissioning test time. Compact 96mm height further increases the available wiring space within the consumer unit. Suitable for TN & TT earthing systems. Particularly suited to installations where double pole isolation of individual circuits may be required · · · Rated current: 10A · · Trip curve: B · · RCD Class: A · · Residual Current: 30mA · · Din Rail Mounted · · Poles: 2P

161 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RCBO-B10/30/1PNA Categories: , , Brand: Part Number: 2501401268

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Number of poles (total) 2 Rated short-circuit breaking capacity according to EN 61009 6 kA Rated fault current 3 A Width in number of modular spacings 1 Rated current 10 A Rated voltage 230 V Recess depth 75 mm Anti-nuisance tripping version No Flush-mounted installation No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
