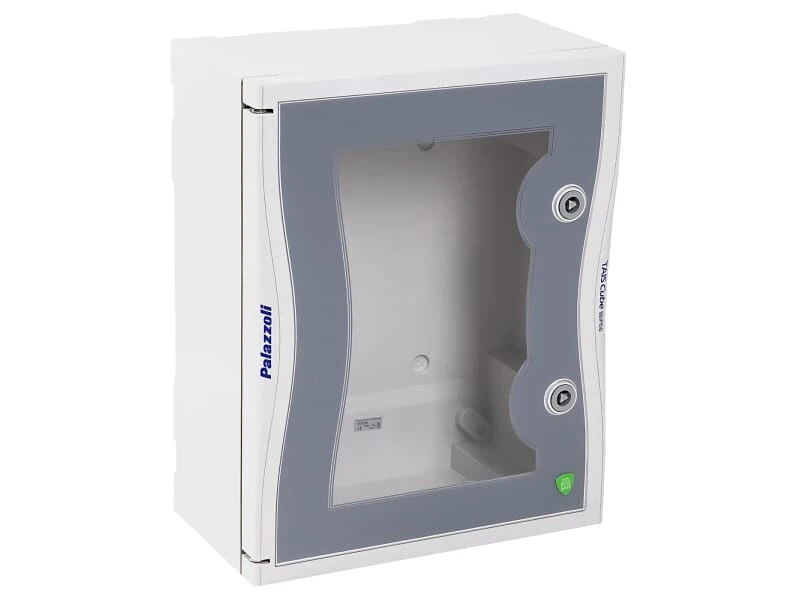

Lewden Distribution Board IP66
£219.55 Incl. VAT
GRP Enclosures with Transparent and Blind Door options – With Steel Back Plate. Distribution and automation board for heavy-duty applications. Composed of 7 sizes in each version with blind or transparent door. All elements are simply fixed with the “Click Cube” snap-in system. Allow an opening wider than 180°. Includes key with triangular insert and screw cover caps for double insulation. IP66 protection rating as per IEC/EN 60529. IK10 impact resistance as per IEC/EN 62262. Thermosetting (GRP) material. Supplied with Steel Back Plate · · · Distribution and automation board for heavy-duty applications. · · Composed of 7 sizes in each version with blind or transparent door. · · IP66 protection rating as per IEC/EN 60529. · · All elements are simply fixed with the “Click Cube” snap-in system.
1 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Height 430 mm Depth 180 mm Width 340 mm RAL number – Number of doors 1 Number of locks – Max. permissible load of the enclosure according to IEC 62208 – N Max. permissible load of the mounting plate according to IEC 62208 – N Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 – W Max. permissible load of the door(s) according to IEC 62208 – N Floor standing wall model No Suitable for wall mounting No Suitable for metrical mounting No With glazed door Yes With ventilation door No Suitable for outdoor set-up No With mounting plate No Mounting plate depth-adjustable No EMC-version No Pole fastening No Pitched roof No With backside door No Suitable for wall built-in No Couplable No Freestanding No Corner model No Intermediate mounting No · Technical Data Sheet – Click to Download
