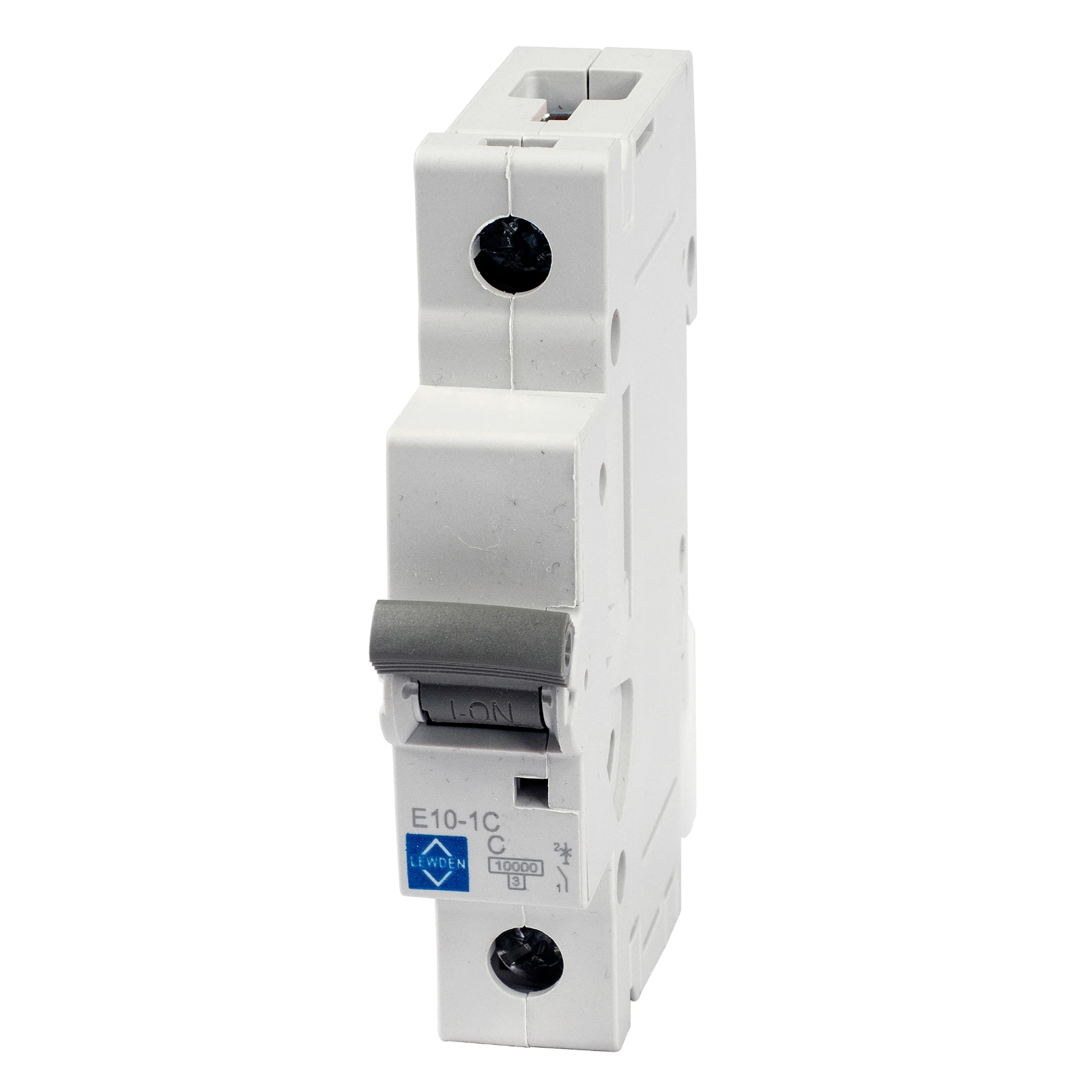

Lewden E10-1C63 MCB 63A, C Type, 1 Pole, 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 695 mm Rated current 63 A Tripping characteristic (type/curve) C Rated insulation voltage Ui – V Over voltage category – Rated voltage 230 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class – Rated impulse-withstand voltage (Uimp) – kV Connectable conductor cross section solid-core – mm² Frequency 50 – 60 Hz Number of protected poles – Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Width in number of modular spacings 1 Pollution degree 3 Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Concurrently switching N-neutral No Explosion-proof No Additional equipment possible No Flush-mounted installation No
