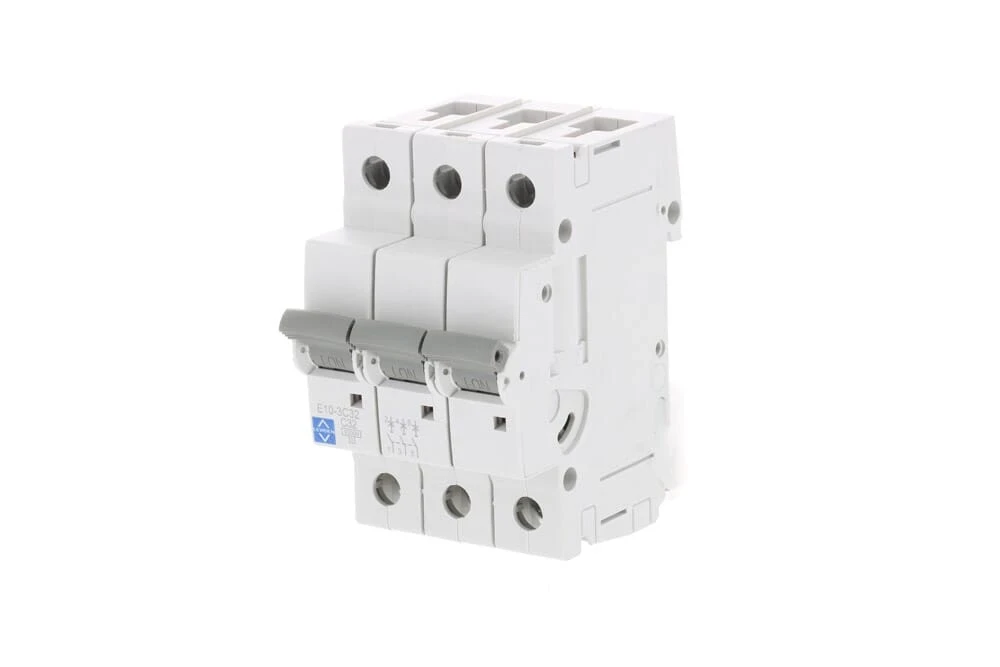

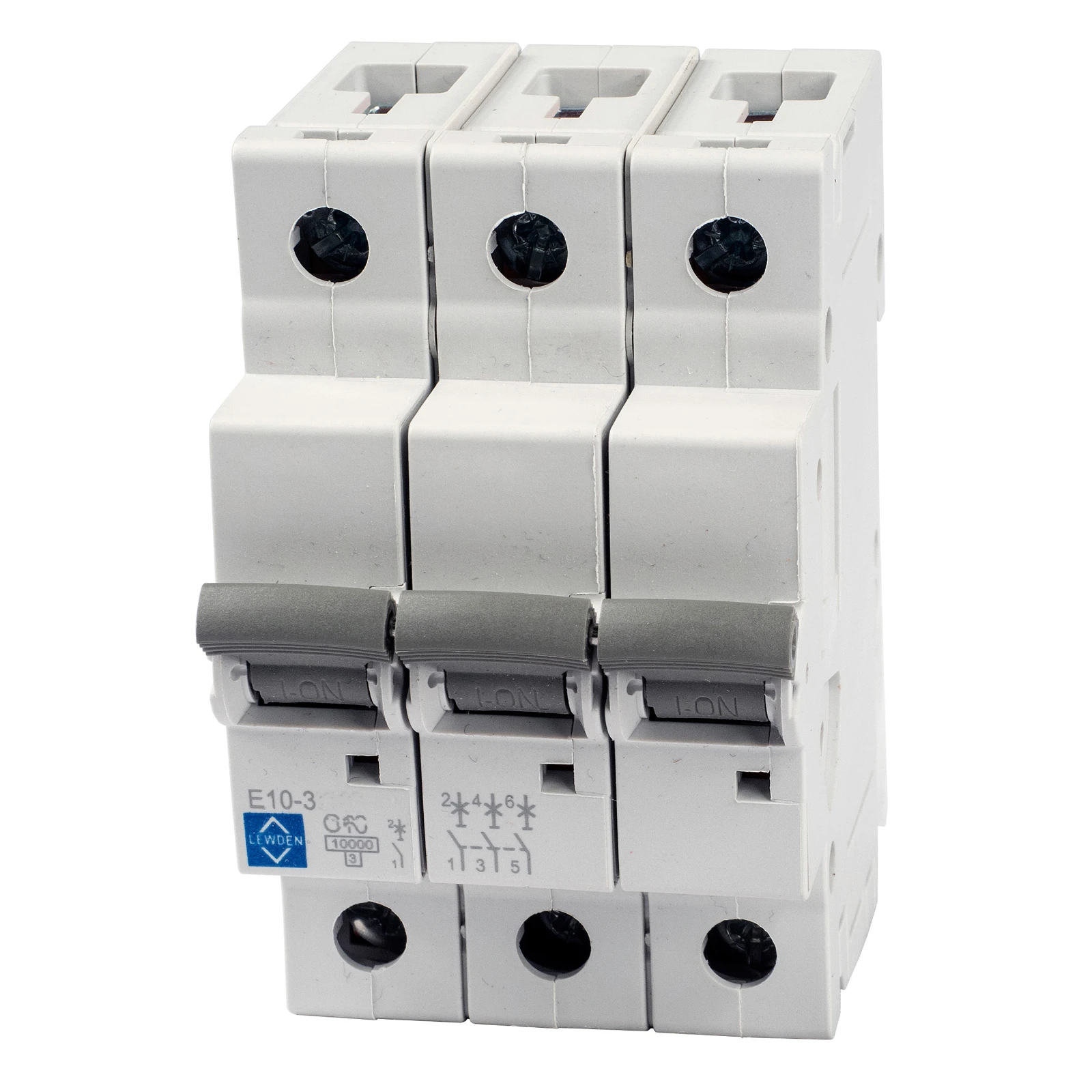

Lewden E10-3C40 MCB 40A, C Type, 3 Pole 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 40 A Tripping characteristic (type/curve) C Recess depth 695 mm Rated voltage 400 V Rated insulation voltage Ui – V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Rated impulse-withstand voltage (Uimp) – kV Over voltage category – Current limiting class – Number of protected poles – Width in number of modular spacings 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Flush-mounted installation No Additional equipment possible No Explosion-proof No Concurrently switching N-neutral No
