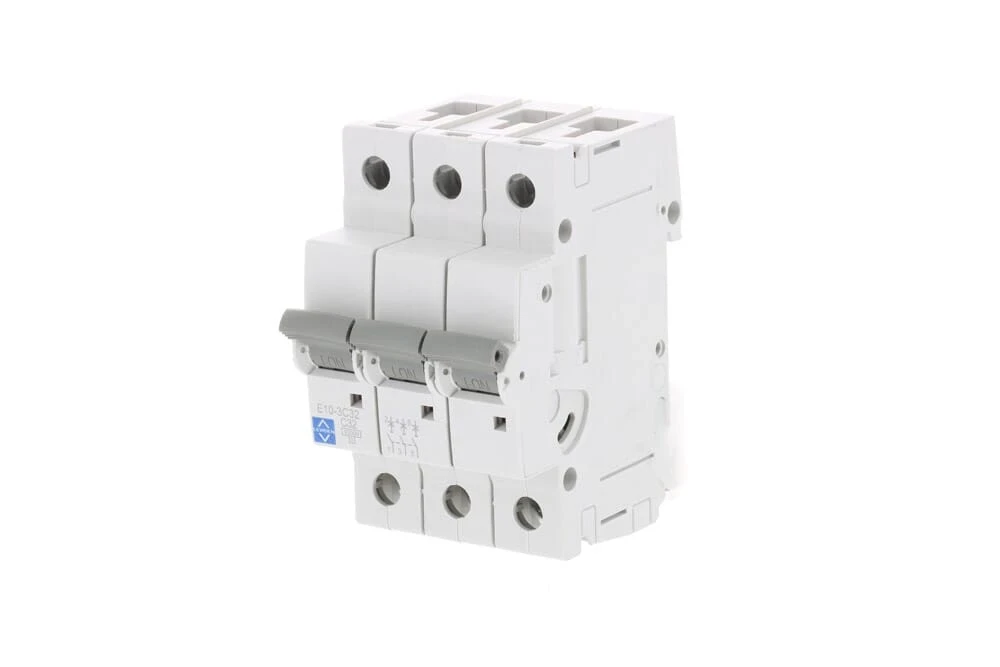

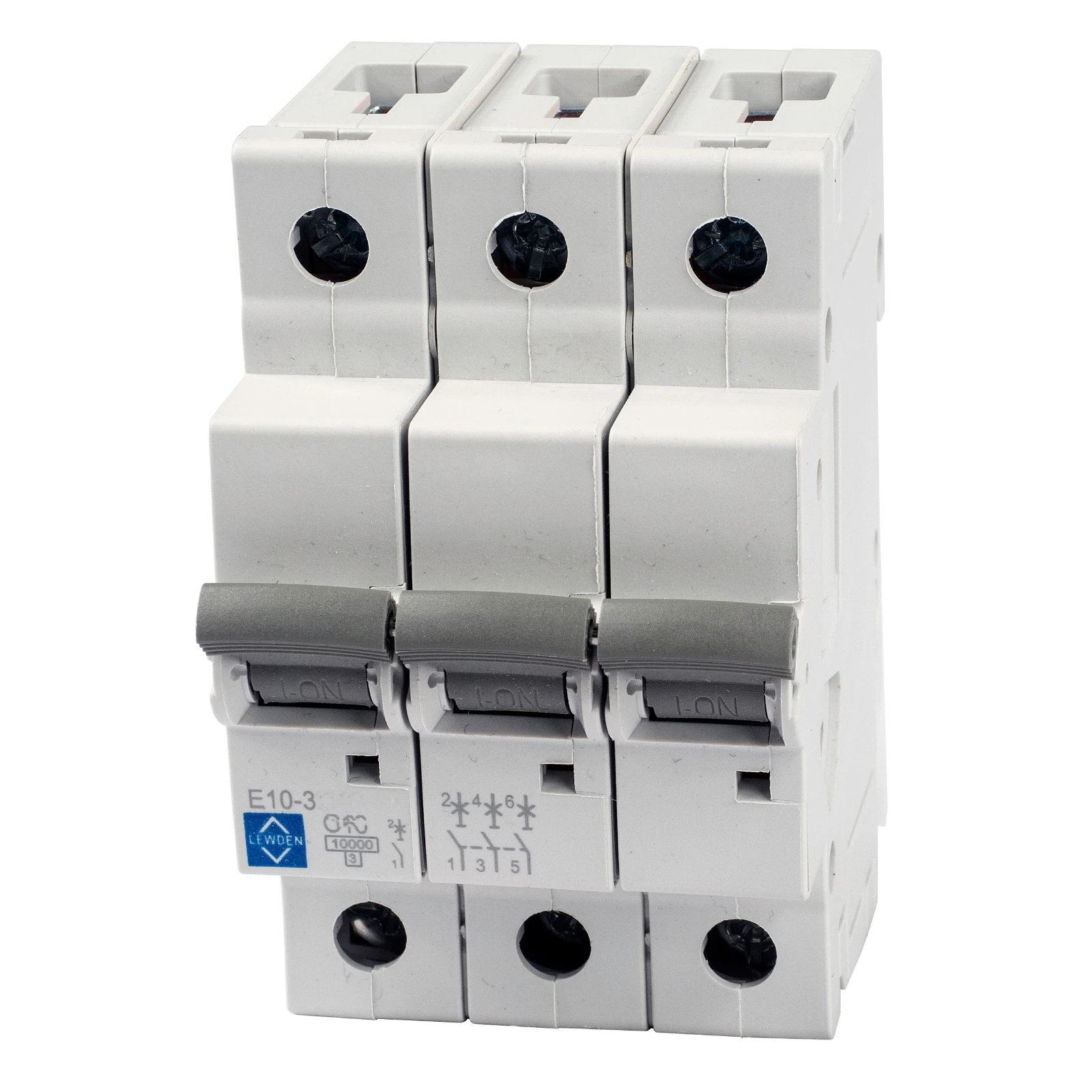

Lewden E10-3C50 MCB 50A, C Type, 3 Pole, 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Tripping characteristic (type/curve) C Rated impulse-withstand voltage (Uimp) – kV Number of protected poles – Rated current 50 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui – V Over voltage category – Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Pollution degree 3 Connectable conductor cross section multi-wired – mm² Connectable conductor cross section solid-core – mm² Frequency 50 – 60 Hz Recess depth 695 mm Rated voltage 400 V Width in number of modular spacings 3 Current limiting class – Ambient temperature during operating – °C Flush-mounted installation No Additional equipment possible No Explosion-proof No Concurrently switching N-neutral No
