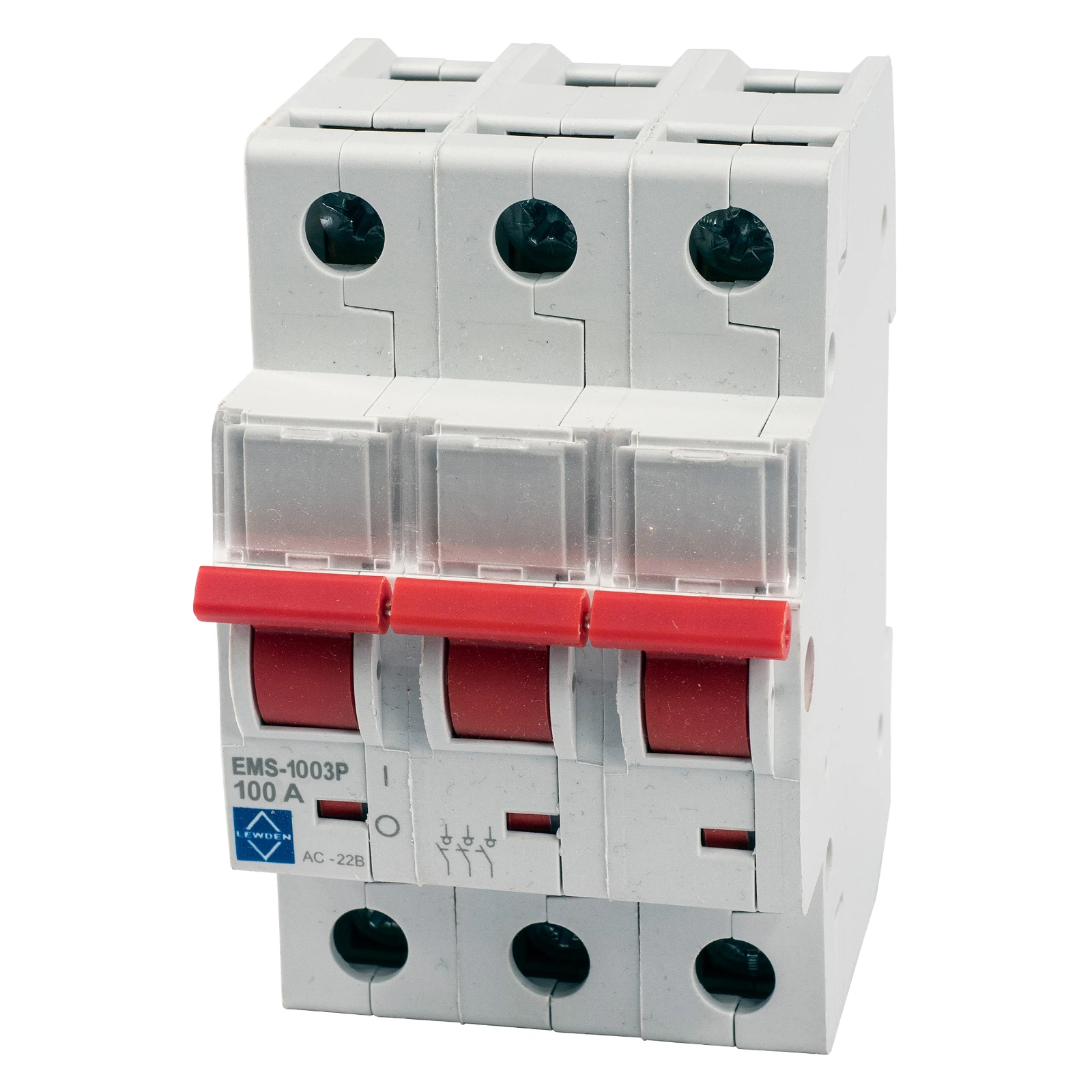

Lewden Main Switch TP 100A

SKU: EMS-1003PGo Magpie ID: 5060062340928

Our Main switch range is designed and tested for use within our distributions boards and with our circuit protection devices, these are switch disconnectors for the control of opening and closing of circuits under load, from 2P to 4P to cover many applications. · · · Main Switch for three phase distribution boards – 100A · · Switch disconnector for the control of opening and closing of circuits under load. · · 50mm² maximum cable capacity. · · Operating cycles: 10,000

£30.06inc VAT£25.05 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Main switch for distribution board Rated current 100 A Rated voltage – V Recess depth – mm Number of poles 3 Width in number of modular spacings – Rated switching capacity – kA Short-circuit breaking capacity (Icw) – kA Max. lamp power – W Number of contacts as normally closed contact – Number of contacts as normally open contact – Number of contacts as change-over contact – Min. rated voltage – V With indicator lamp No Forced segregation (according to DIN VDE 0113) No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
