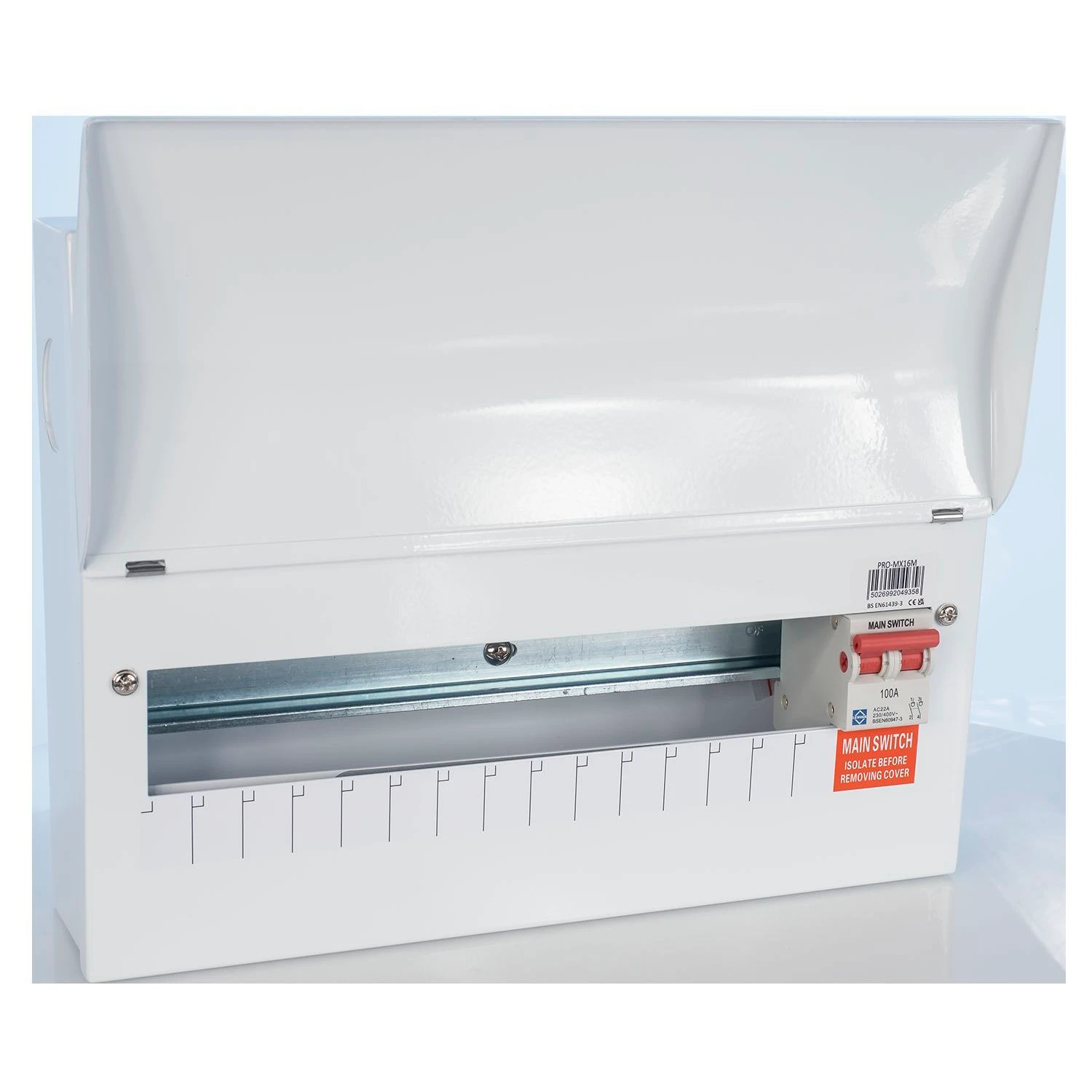

Lewden Main Switch Board

A fully comprehensive PRO RCBO Based Solution, comprising a 100A DP main switch with overload and residual current protection provided on each individual final circuit by RCBOs. Distributing final circuits across individual RCBOs provides the best approach to fully meeting the requirements of BS7671. Supplied with 100A rated Mains Switch and distribution bus bar, Overcurrent and 30mA earth leakage fault protection combined in one device, Class A residual current protection as standard, 6kA Short circuit breaking capacity. Energy limiting class 3, B or C curve overcurrent trip options, Fully interchangeable switched and un-switched neutral pole RCBO options & with ratings from 6A to 50A. · · · 100A Incoming Switch · · (Type A RCBO) and DC sensitive protective device · · (Type A RCBO) and DC sensitive protective device · · (single phase models only) · · Free-to-use & Pay-to-charge versions · · EV OpenCharge model can integrate with any OCPP · · back office* · · Models available with built-in TruePEN PME fault · · detection, no earth electrode/rod required · · Branding & colour options available
