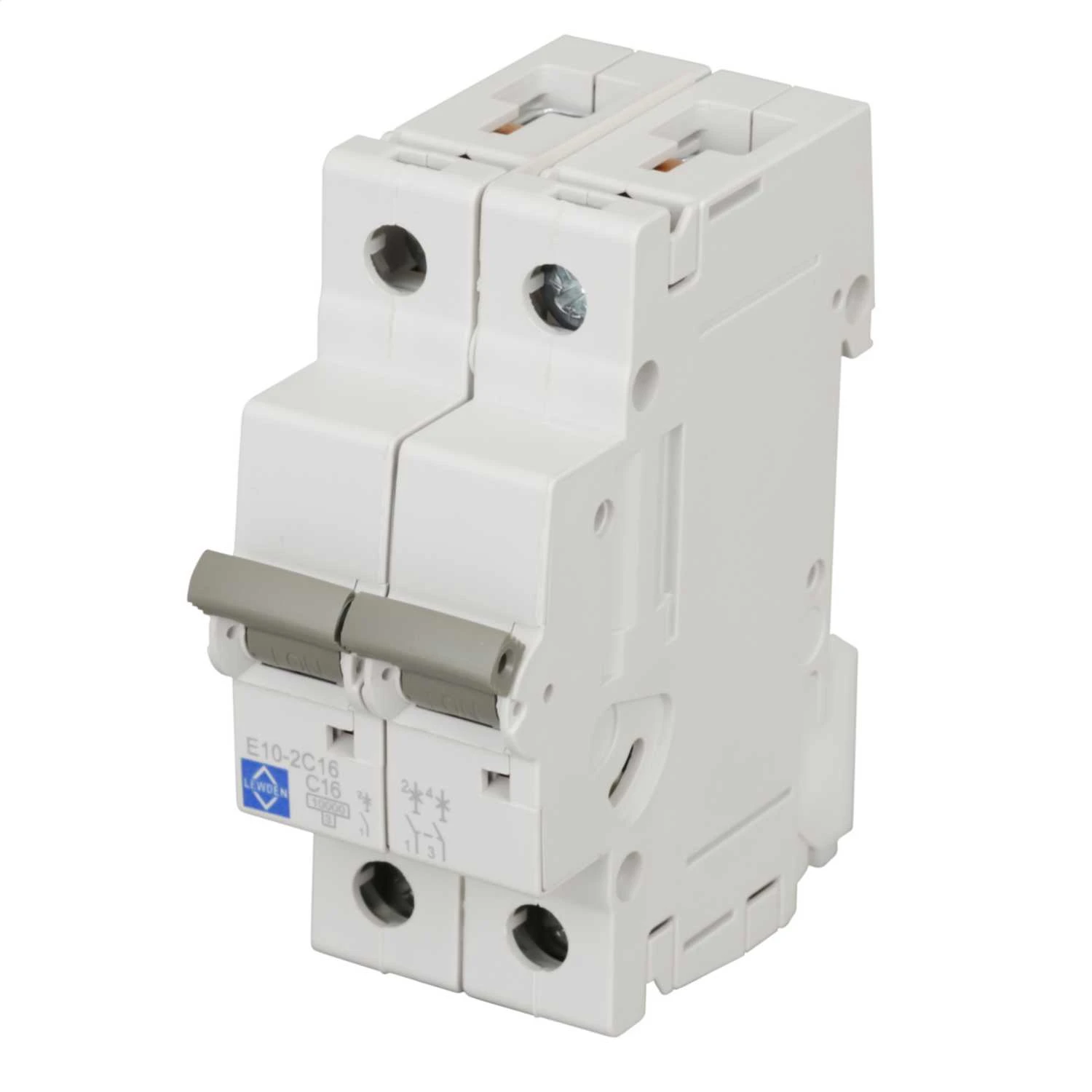

Lewden MCB DP Type C 16A 10kA
Lewden MCB DP Type C 16A 10kA
Lewden MCB DP Type C 16A 10kA - Image 2

Lewden MCB DP Type C 16A 10kA

£20.82 Incl. VAT

Miniature Circuit Breakers are for installation into Lewden’s range of commercial and industrial TP&N Industrial Board range providing protection for cables, lighting circuits and heating loads. DIN rail mounted, they have a B,C & D curve and short circuit breaking capacity making it suitable for the full range of industrial circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation. · · · Designed and tested for use with Lewden branded distribution boards · · Thermal magnetic miniature circuit breaker · · Available in B, C & D type

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: E10-2C16 Categories: , , Brand: Product Code: 2500976557

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 2 Rated current 16 A Recess depth 695 mm Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated insulation voltage Ui – V Rated impulse-withstand voltage (Uimp) – kV Current limiting class – Number of protected poles – Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Over voltage category – Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 2 Pollution degree 3 Frequency 50 – 60 Hz Ambient temperature during operating – °C Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Concurrently switching N-neutral No Flush-mounted installation No Explosion-proof No Additional equipment possible No
