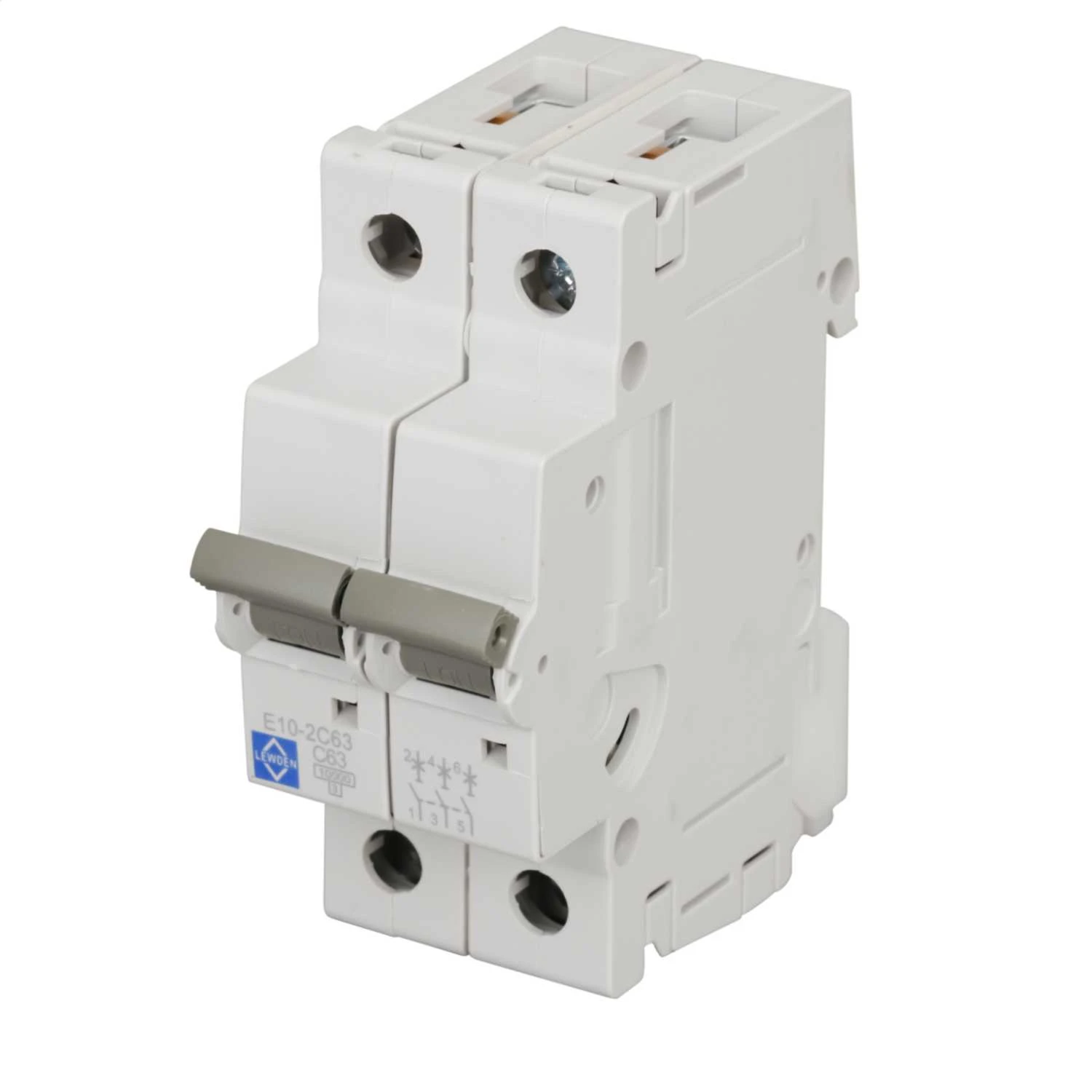

Lewden MCB DP Type C 63A 10kA
Lewden MCB DP Type C 63A 10kA
Lewden MCB DP Type C 63A 10kA - Image 2

Lewden MCB DP Type C 63A 10kA

£27.71 Incl. VAT

Miniature Circuit Breakers are for installation into Lewden’s range of commercial and industrial TP&N Industrial Board range providing protection for cables, lighting circuits and heating loads. DIN rail mounted, they have a B,C & D curve and short circuit breaking capacity making it suitable for the full range of industrial circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation. · · · Designed and tested for use with Lewden branded distribution boards · · Thermal magnetic miniature circuit breaker · · Available in B, C & D type

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: E10-2C63 Categories: , , Brand: Product Code: 2500976563

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 63 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Number of poles (total) 2 Pollution degree 3 Rated insulation voltage Ui – V Recess depth 695 mm Rated voltage 230 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Number of protected poles – Rated impulse-withstand voltage (Uimp) – kV Over voltage category – Current limiting class – Width in number of modular spacings 2 Frequency 50 – 60 Hz Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Connectable conductor cross section solid-core – mm² Flush-mounted installation No Additional equipment possible No Concurrently switching N-neutral No Explosion-proof No
