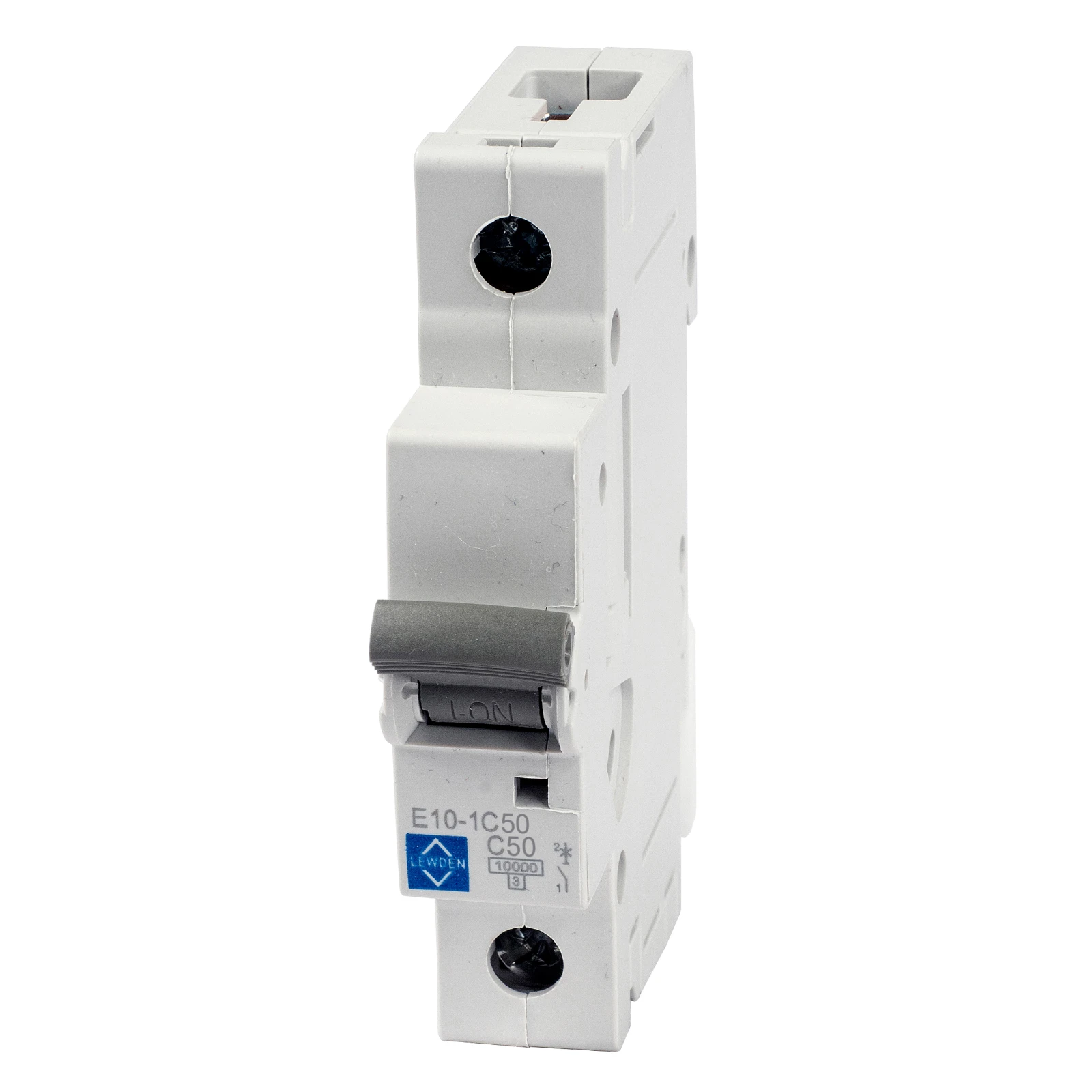

Lewden MCB (E10-1C50) 50A, C Type, 1 Pole 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 50 A Recess depth 695 mm Tripping characteristic (type/curve) C Rated impulse-withstand voltage (Uimp) – kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui – V Number of poles (total) 1 Current limiting class – Frequency 50 – 60 Hz Number of protected poles – Pollution degree 3 Over voltage category – Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Explosion-proof No Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No
