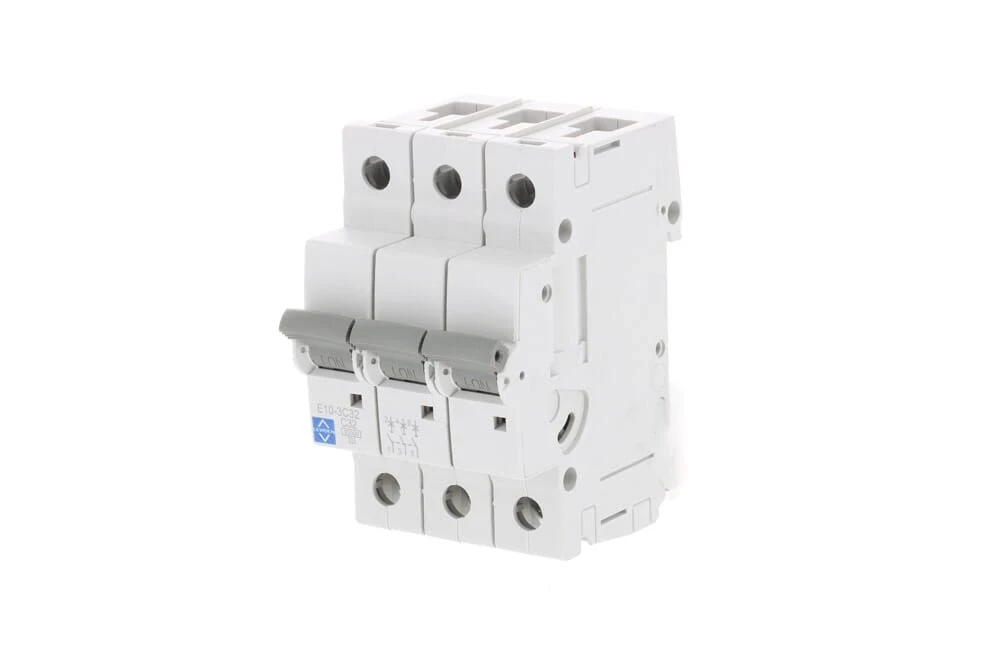

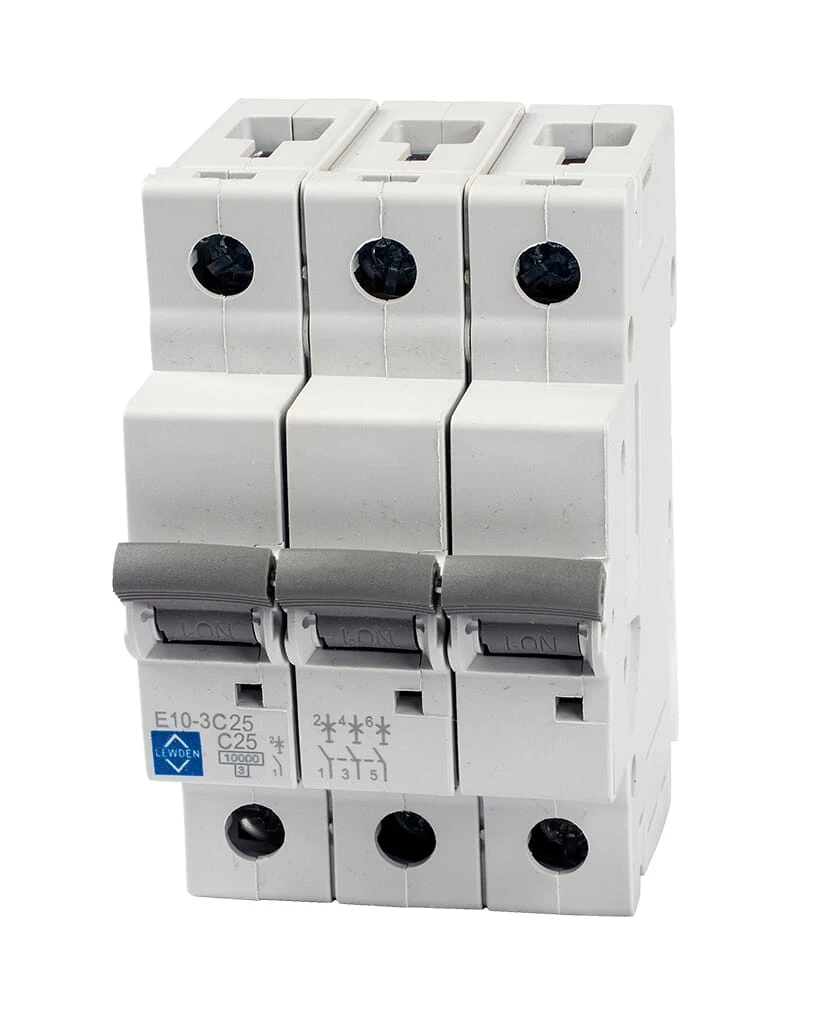

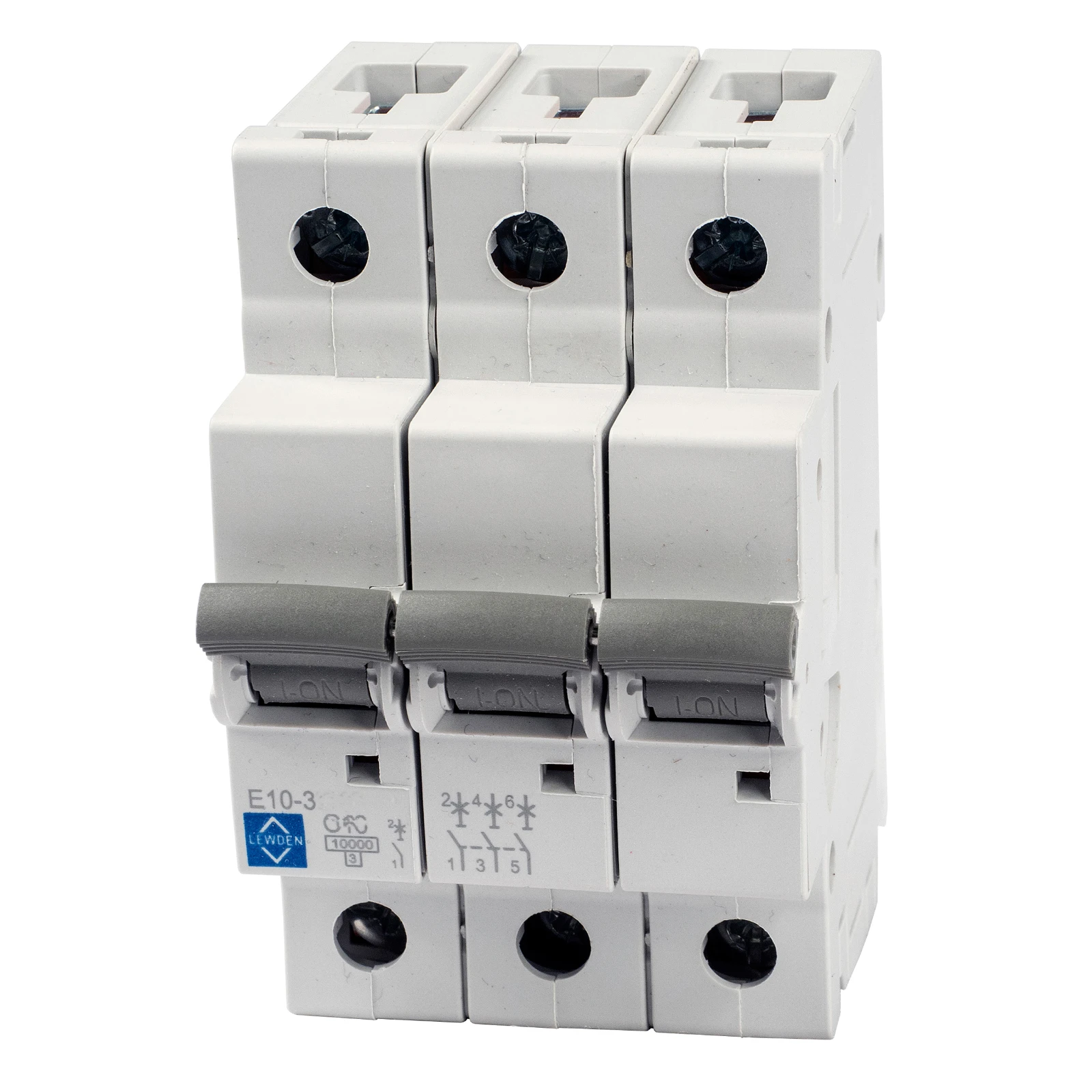

Lewden MCB (E10-3C25) 25A C Type 3 Pole 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 400 V Tripping characteristic (type/curve) C Width in number of modular spacings 3 Rated current 25 A Recess depth 695 mm Rated insulation voltage Ui – V Rated impulse-withstand voltage (Uimp) – kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Over voltage category – Pollution degree 3 Current limiting class – Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Number of protected poles – Frequency 50 – 60 Hz Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Concurrently switching N-neutral No Flush-mounted installation No Explosion-proof No Additional equipment possible No
