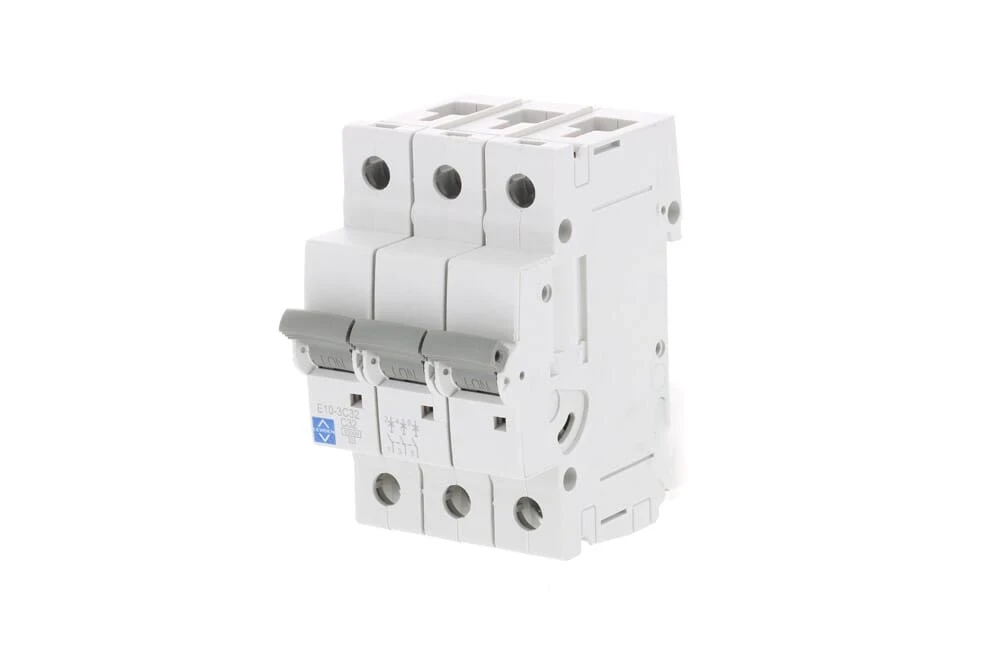

Lewden MCB TP Type D 16A 10kA
Lewden MCB TP Type D 16A 10kA
Lewden MCB TP Type D 16A 10kA - Image 2

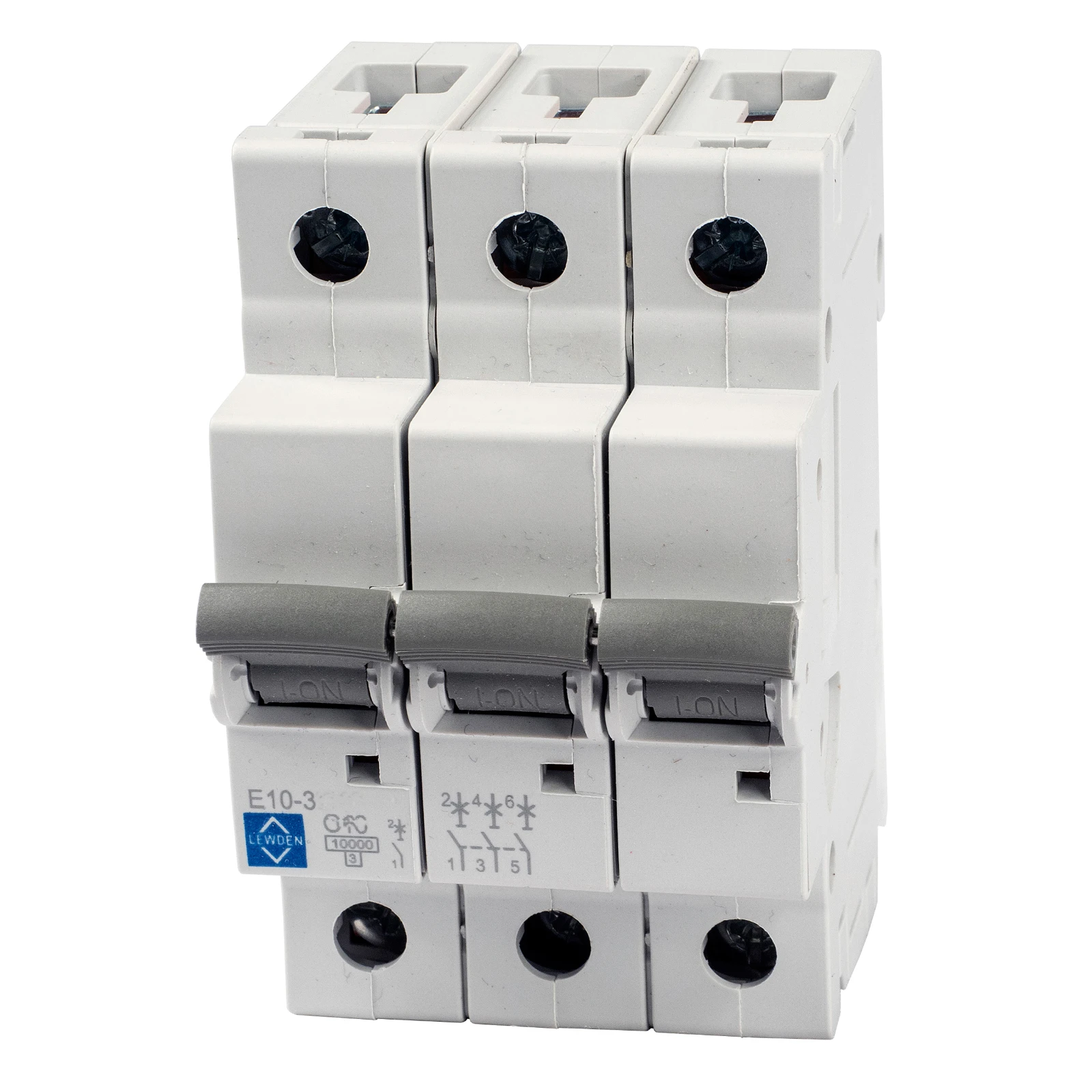

Lewden MCB TP Type D 16A 10kA - Image 3
Lewden MCB TP Type D 16A 10kA - Image 4

Lewden MCB TP Type D 16A 10kA

£46.21 Incl. VAT

Miniature Circuit Breakers are for installation into Lewden’s range of commercial and industrial TP&N Industrial Board range providing protection for cables, lighting circuits and heating loads. DIN rail mounted, they have a B,C & D curve and short circuit breaking capacity making it suitable for the full range of industrial circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation. · · · Designed and tested for use with Lewden branded distribution boards · · Thermal magnetic miniature circuit breaker · · Available in B, C & D type

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: E10-3D16 Categories: , , Brand: Product Code: 2500976595

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Rated current 16 A Rated voltage 400 V Recess depth 695 mm Rated insulation voltage Ui – V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Width in number of modular spacings 3 Current limiting class – Over voltage category – Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Pollution degree 3 Rated impulse-withstand voltage (Uimp) – kV Number of protected poles – Frequency 50 – 60 Hz Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Explosion-proof No Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
