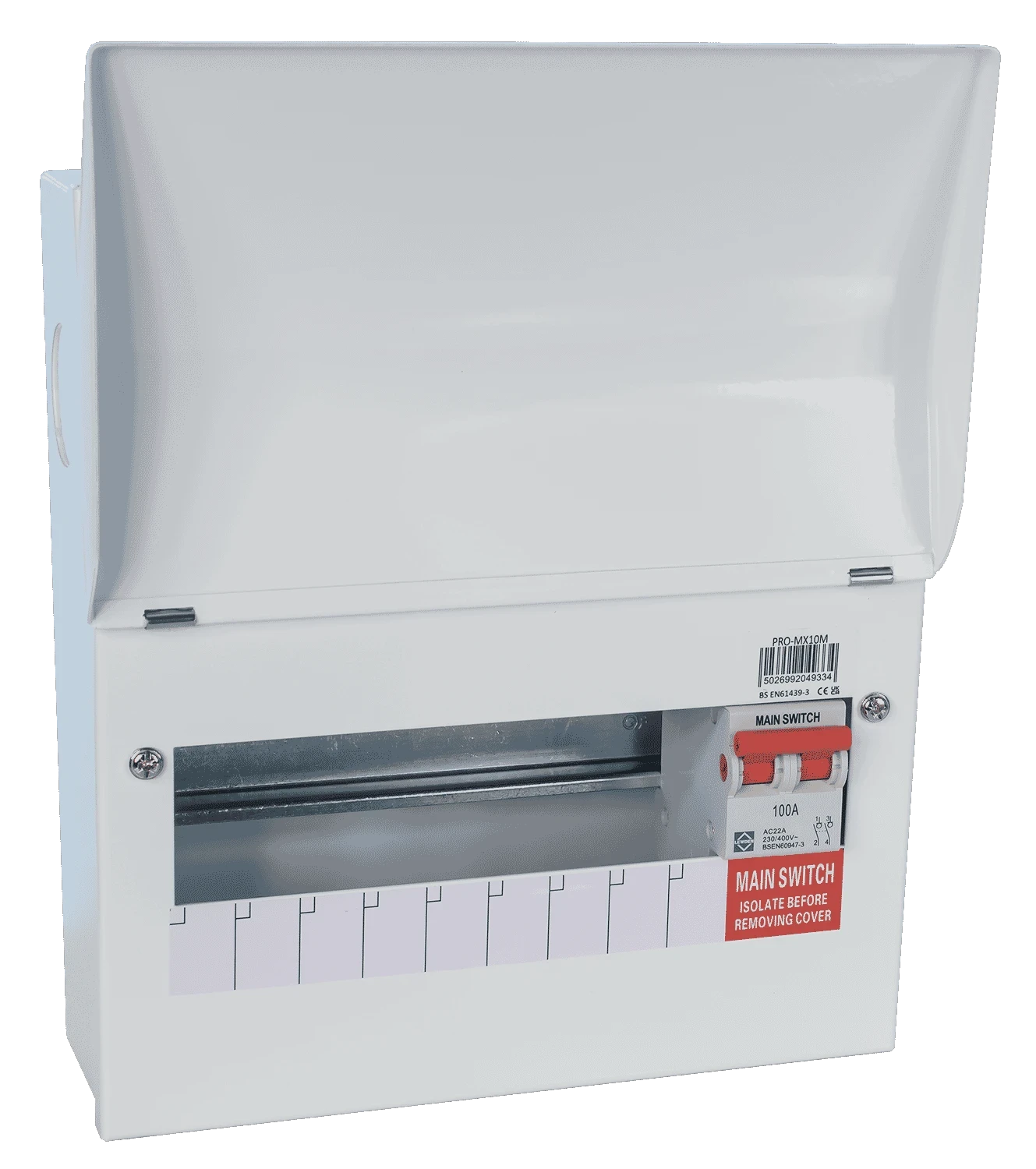

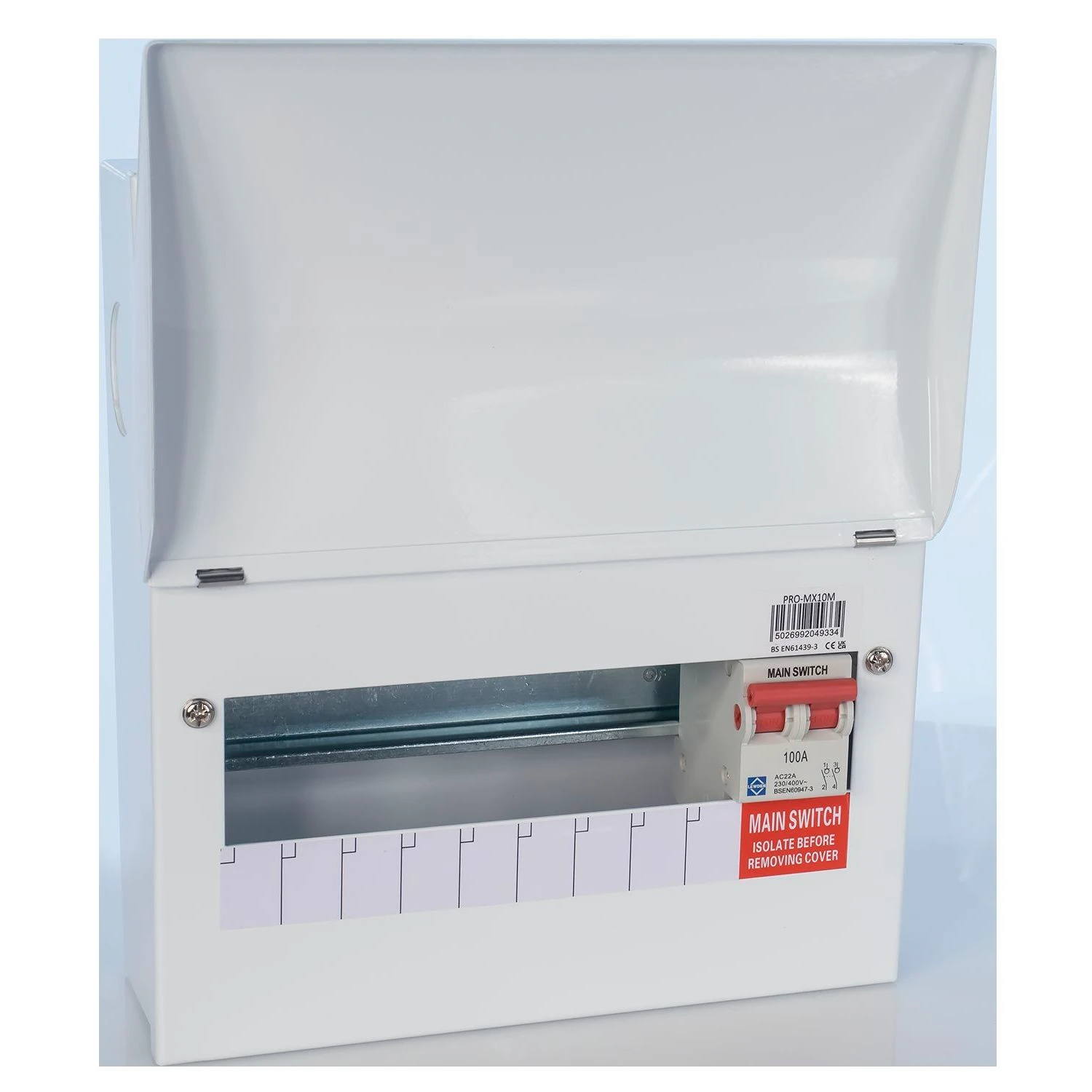

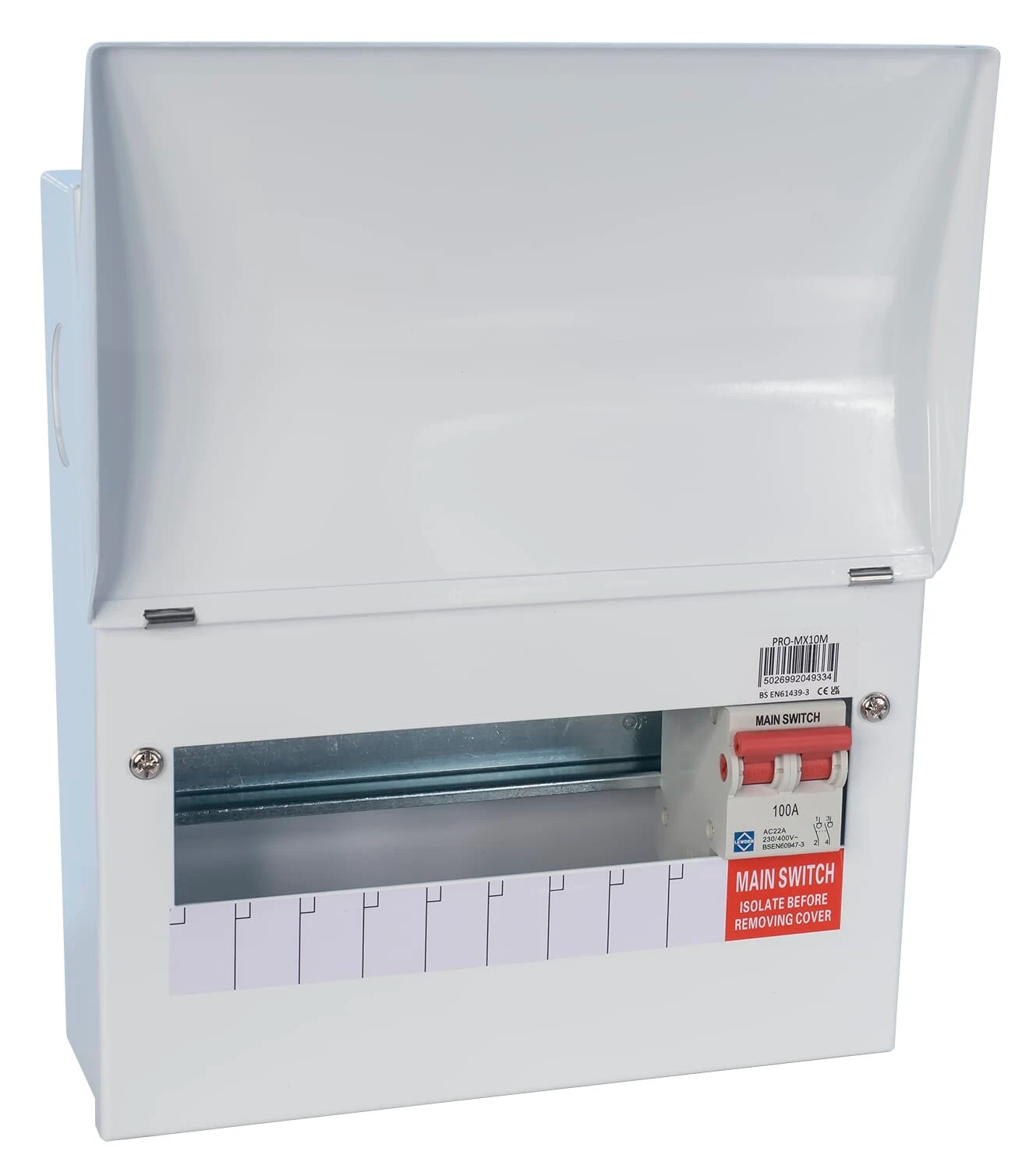

Lewden Main Switch Board
£74.98 Incl. VAT
A fully comprehensive PRO RCBO Based Solution, comprising a 100A DP main switch with overload and residual current protection provided on each individual final circuit by RCBOs. Distributing final circuits across individual RCBOs provides the best approach to fully meeting the requirements of BS7671. Supplied with 100A rated Mains Switch and distribution bus bar, Overcurrent and 30mA earth leakage fault protection combined in one device, Class A residual current protection as standard, 6kA Short circuit breaking capacity. Energy limiting class 3, B or C curve overcurrent trip options, Fully interchangeable switched and un-switched neutral pole RCBO options & with ratings from 6A to 50A. · · · 100A Incoming Switch · · +1 Extra module included for the installation of a surge protection device · · Designed with the Installer in mind, providing an easy to install consumer unit, meeting the requirements of the latest 18th Edition Wiring Regulations in a stylish, non-obtrusive range of Enclosures. · · Supplied complete with main switch.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board equipped Depth 106 mm Width 244 mm Height 266 mm Number of outgoing ways 8 Main switch rated current 100 A Extension possible No Lockable No Protection high integrity No With socket outlet No Protection main switch Yes With bell transformer No Over voltage-/surge protection No With transparent cover No With metering No Cooker group suitable as power current group No Protection split load No Suitable for data No Protection dual RCD No Protection incoming RCD No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
