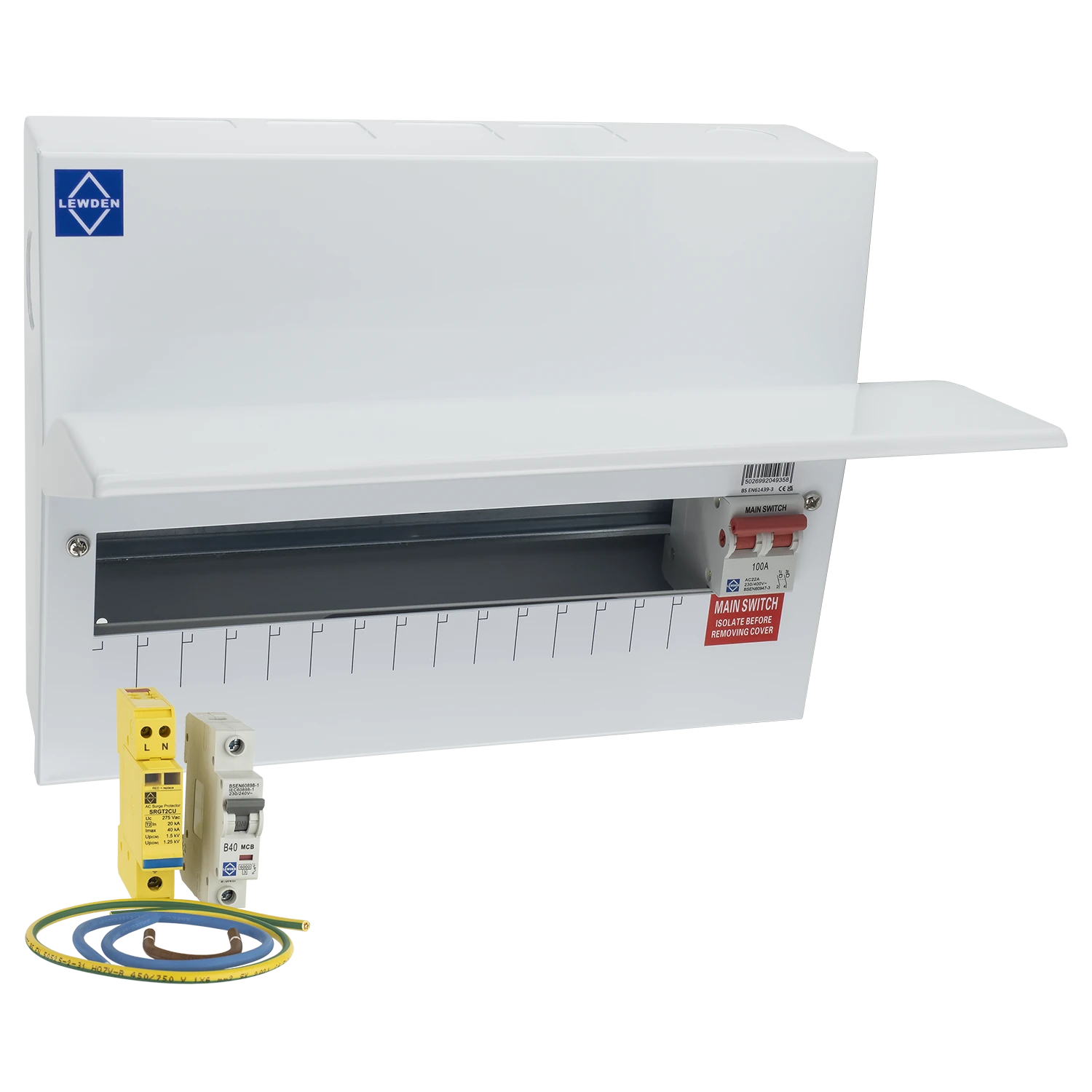

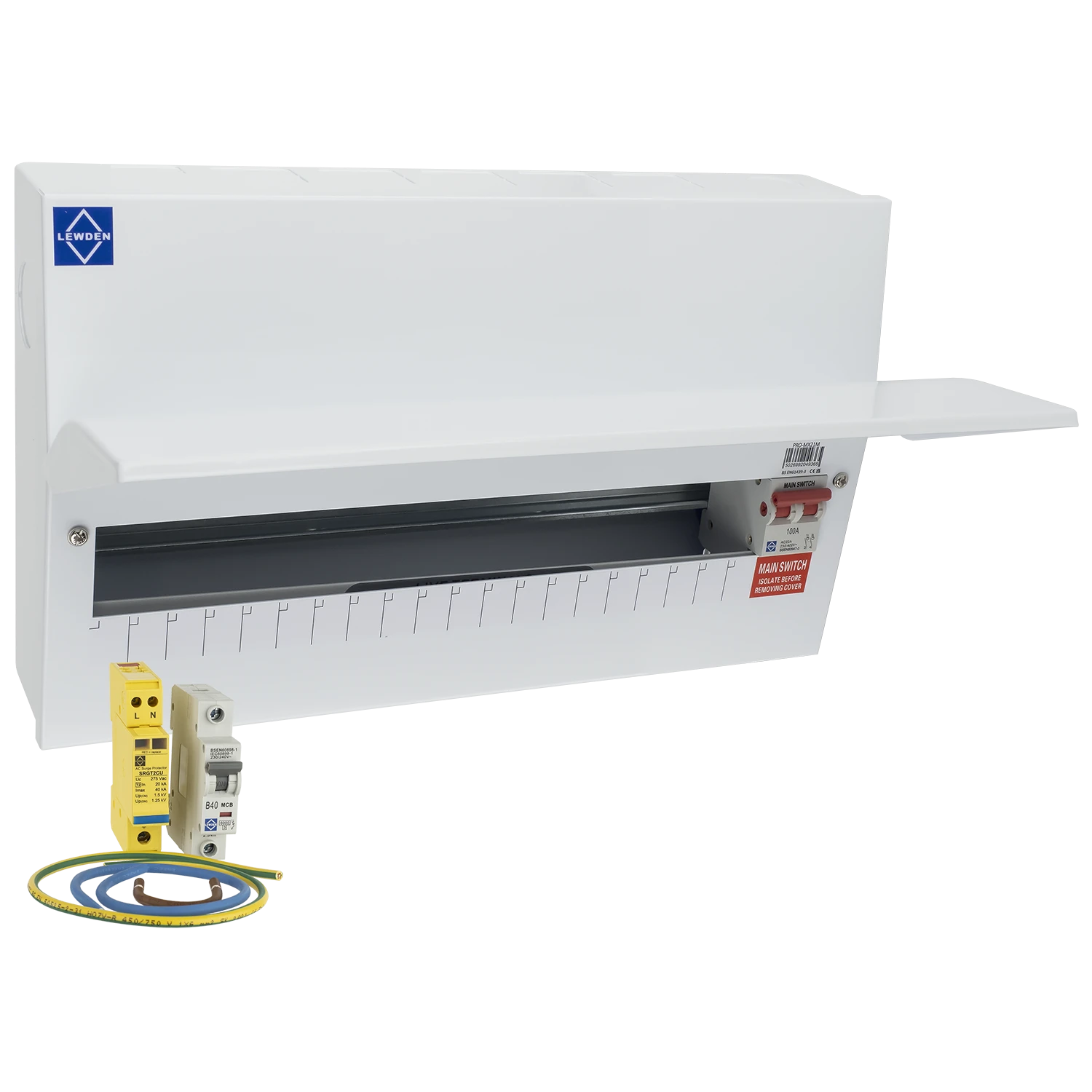

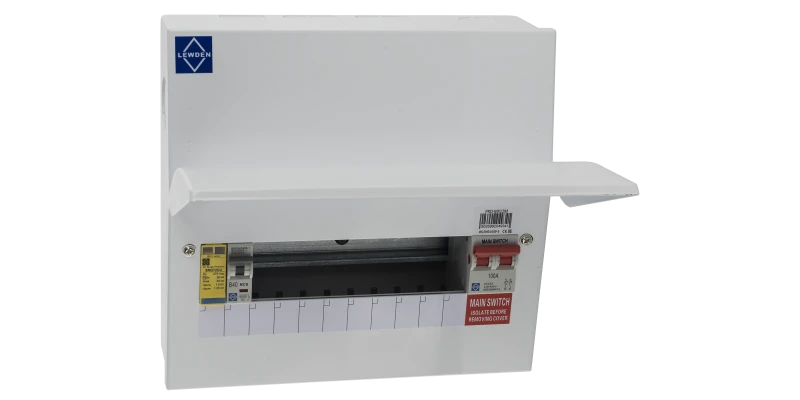

Lewden 266 x 244 x 106mm 100A 8+1 Modules Pro Main Switch Consumer Unit With Type 2 Surge Square Knockouts

Lewden 266 x 244 x 106mm 100A 8+1 Modules Pro Main Switch Consumer Unit With Type 2 Surge Square Knockouts

£218.16 Incl. VAT

The 266x244x106mm 100A 8+1 Modules Pro Main Switch Consumer Unit with Type 2 Surge Square Knockouts is a robust and versatile enclosure that is fully rated to AC-23A category. This allows for safe operation even with highly inductive loads, such as motors. The enclosure is also padlockable and interlocked, providing an added level of safety. The powder coated mild steel construction ensures durability and a long service life. The large space inside the enclosure provides plenty of room for comfortable wiring. · · · Supplied complete with Type 2 Surge Protection Kit · · Supplied complete with main switch. · · One extra module for installation of SPD. · · Selection of knockouts for mini trunking and conduits.

In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PRO-MX10MS Categories: , , Brand: Product Code: 2501499119

Description

Technical Specifications  Technical Specifications Small distribution board equipped Degree of protection (IP rating) IP2XC Housing material Steel Mounting method Surface mounted/recessed mounted Depth 106 mm Width 244 mm Height 266 mm Number of phases 1 Main switch rated current 100 A · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
