Circuit Breakers & Devices

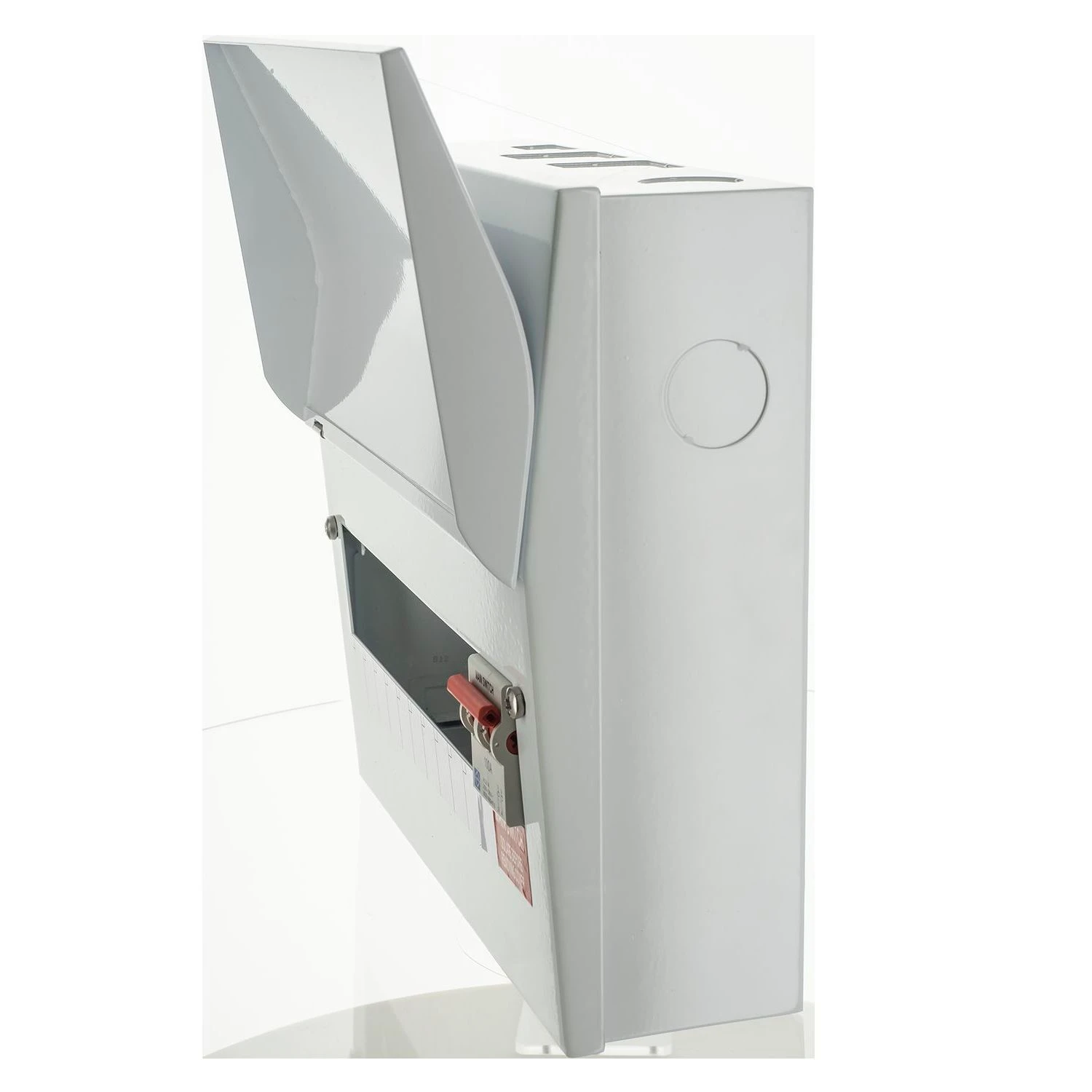

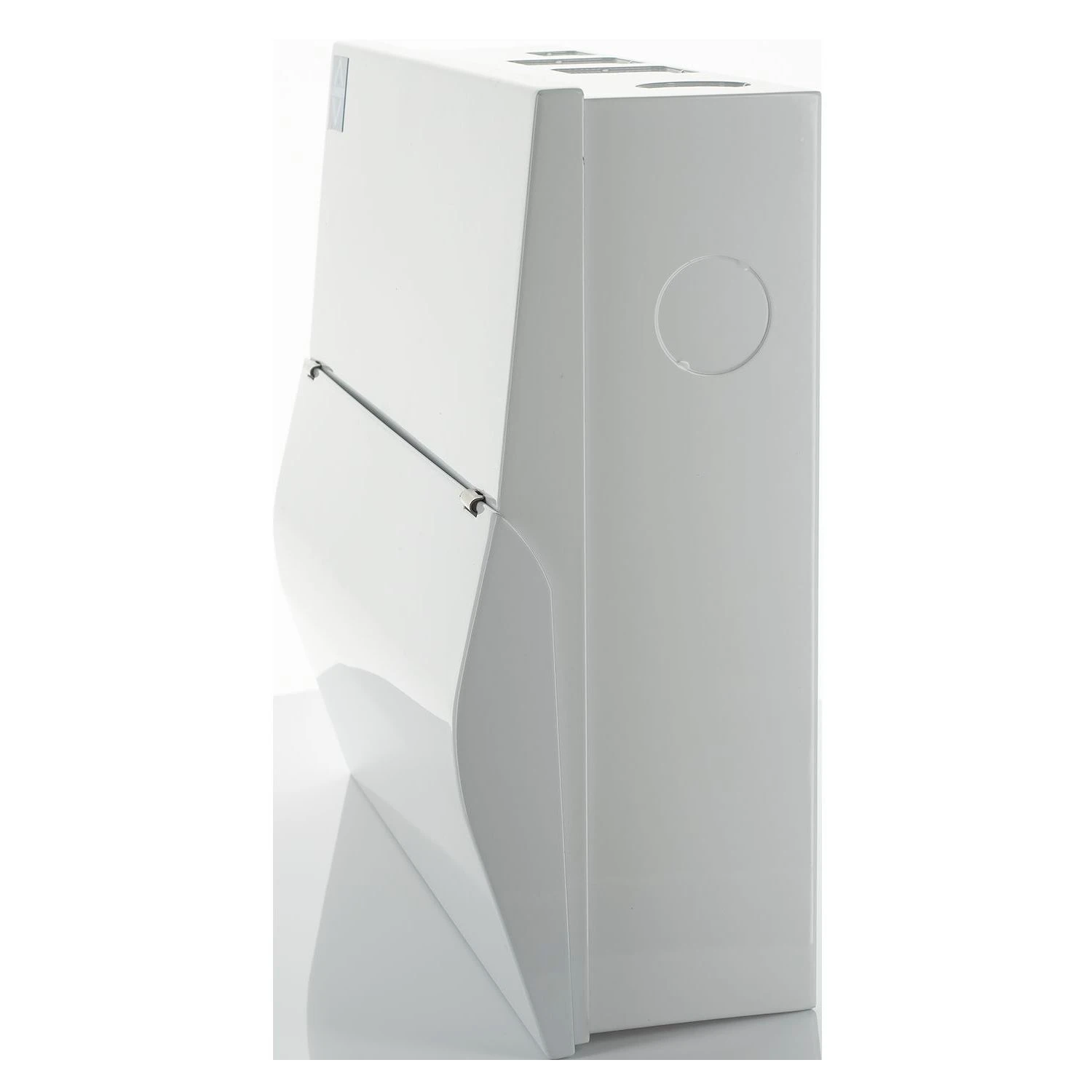

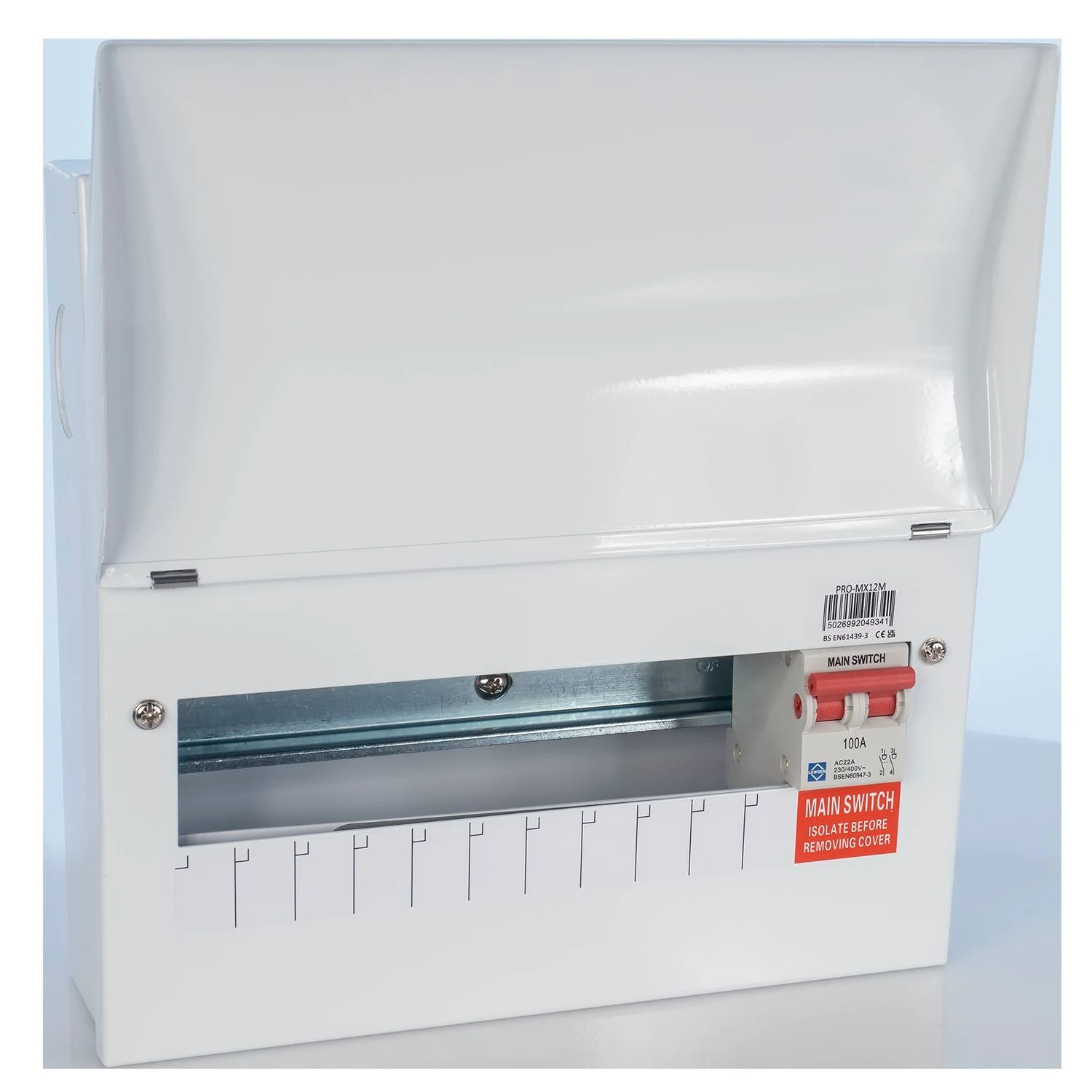

Lewden Main Switch Board

Brand: LewdenProduct code: PRO-MX12MGo Magpie Ref: 5060062308446

A fully comprehensive PRO RCBO Based Solution, comprising a 100A DP main switch with overload and residual current protection provided on each individual final circuit by RCBOs. Distributing final circuits across individual RCBOs provides the best approach to fully meeting the requirements of BS7671. Supplied with 100A rated Mains Switch and distribution bus bar, Overcurrent and 30mA earth leakage fault protection combined in one device, Class A residual current protection as standard, 6kA Short circuit breaking capacity. Energy limiting class 3, B or C curve overcurrent trip options, Fully interchangeable switched and un-switched neutral pole RCBO options & with ratings from 6A to 50A. · · · 100A Incoming Switch · · Manufactured to BSEN61316 · · Manufactured to BSEN61316 · · Supplied complete with main switch.

£42.24inc VAT£35.20 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Main switch rated current 100 A Width 281 mm Number of outgoing ways 10 Depth 106 mm Height 266 mm With socket outlet No Lockable No Extension possible No Protection dual RCD No With transparent cover No Over voltage-/surge protection No Suitable for data No Protection incoming RCD No With bell transformer No Protection high integrity No With metering No Cooker group suitable as power current group No Protection main switch Yes Protection split load No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
