Domestic Consumer Units

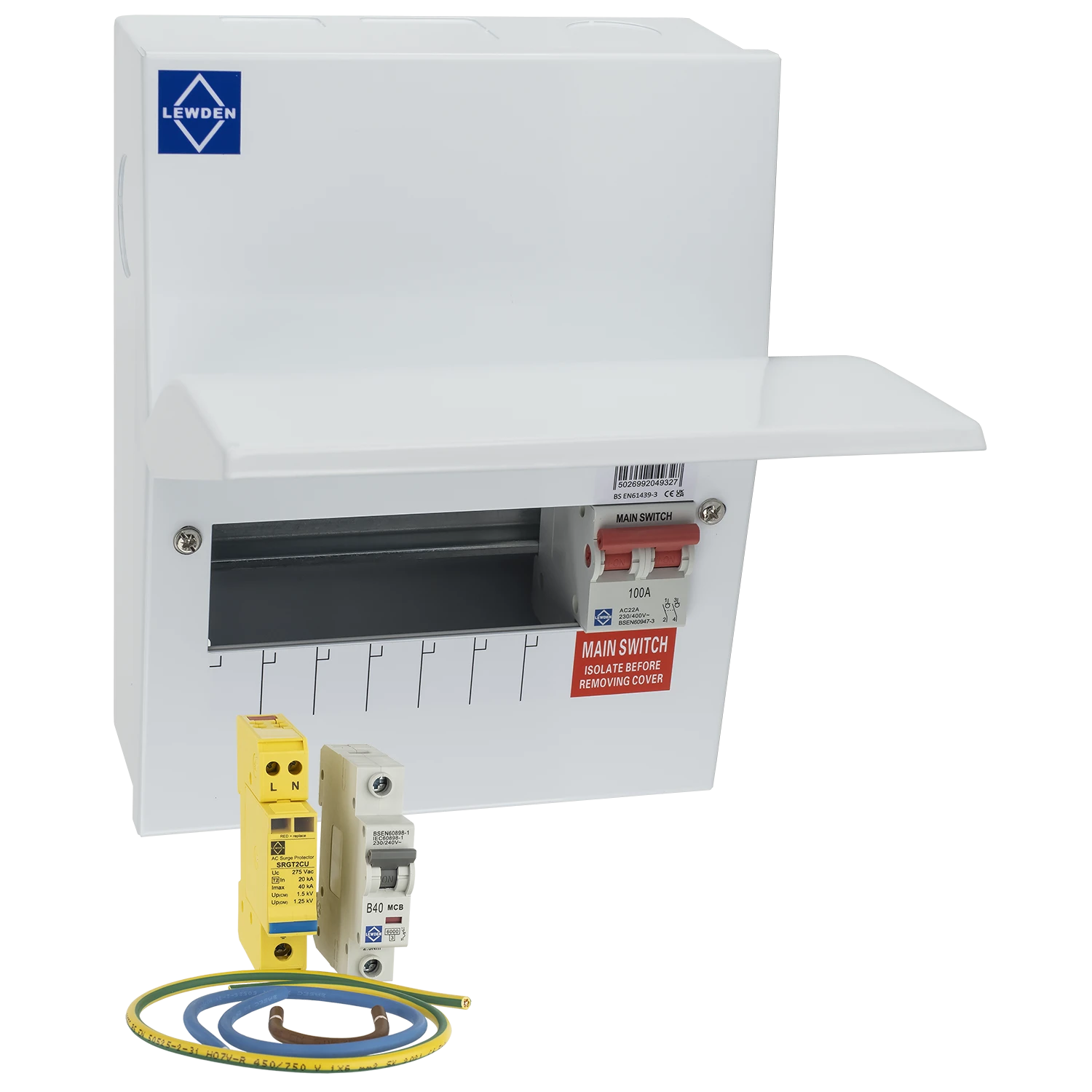

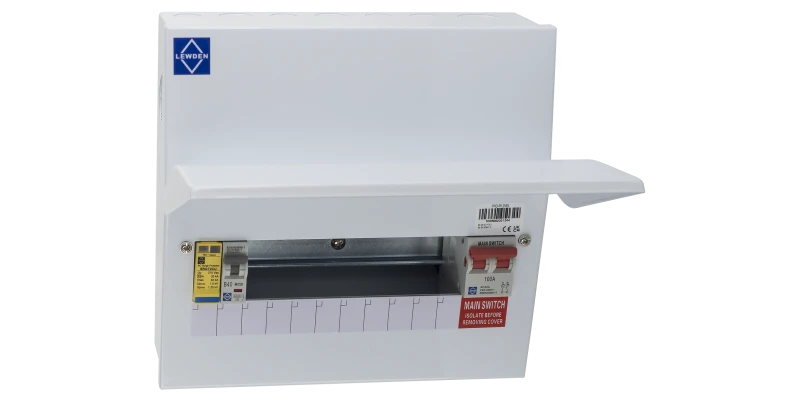

Lewden 266 x 281 x 106mm 100A 10+1 Modules PRO Main Switch Consumer Unit with Type 2 Surge Round Knockouts

Brand: LewdenProduct code: PRO-R12MSGo Magpie Ref: 5060062298519

The 266x281x106mm 100A 10+1 Modules PRO Main Switch Consumer Unit with Type 2 Surge Protection Kit and Round Knockouts is a robust and versatile enclosure that is fully rated to AC-23A category. This allows for safe operation even with highly inductive loads, such as motors. The enclosure is also padlockable and interlocked, providing an added level of safety. The powder coated mild steel construction ensures durability and a long service life. The large space inside the enclosure provides plenty of room for comfortable wiring. · · · Supplied complete with Type 2 Surge Protection Kit · · Supplied complete with main switch. · · One extra module for installation of SPD. · · New & improved range.

£77.22inc VAT£64.35 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Housing material Steel Degree of protection (IP rating) IP2XC Mounting method Surface mounted/recessed mounted Colour White Width 281 mm Depth 106 mm Height 266 mm Number of phases 1 Main switch rated current 100 A · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
