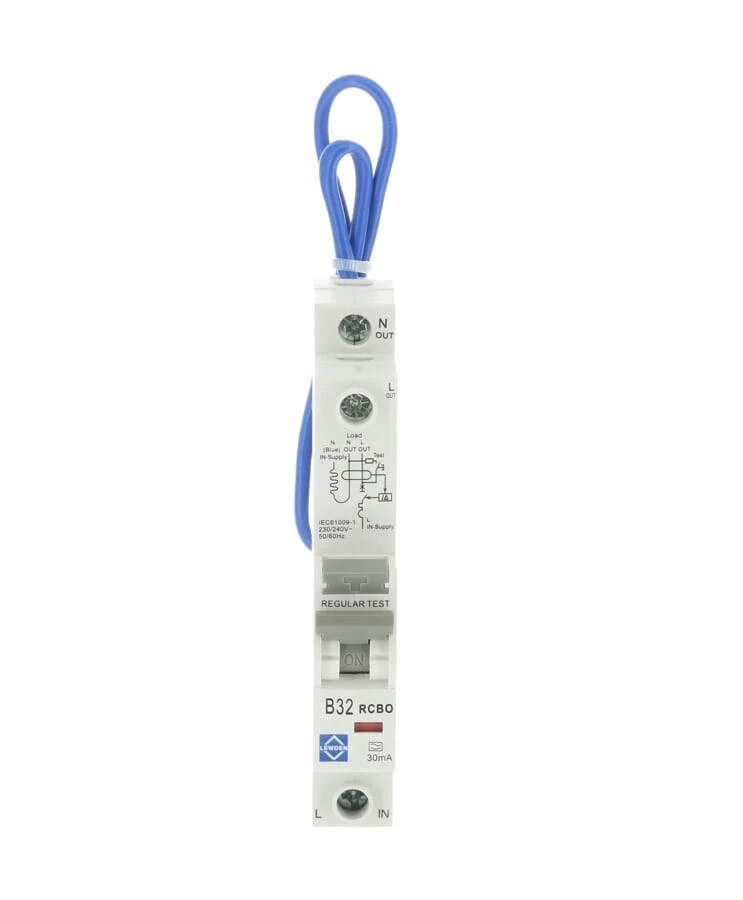

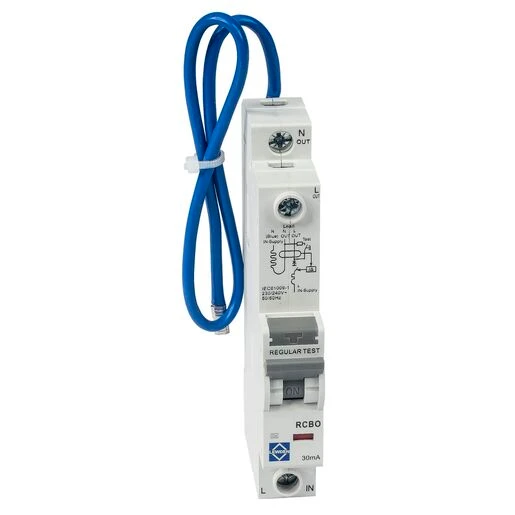

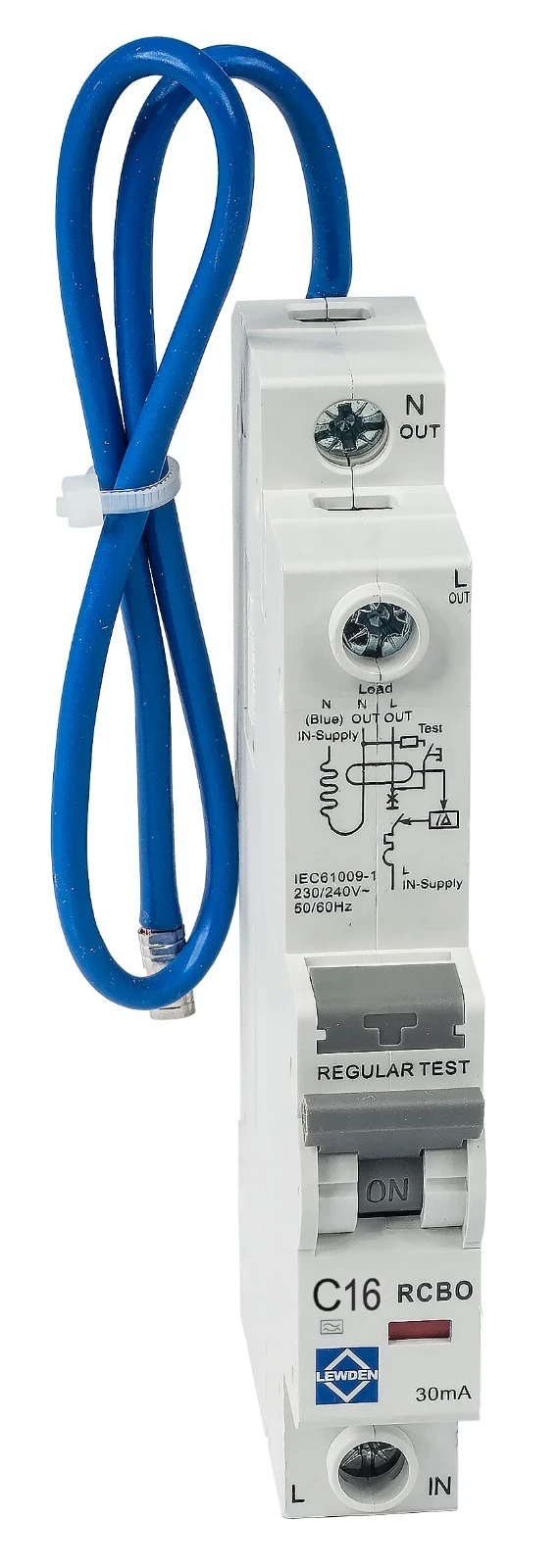

Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A
Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A
Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A - Image 2
Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A - Image 3
Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A - Image 4

Lewden RCBO-06/30/SPA 6A RCBO 30mA B Curve 6kA Type A

£19.06 Incl. VAT

RCBO device compatible with Denmans Steeple and Curve consumer units. These devices are ‘Type B’ in terms of tripping curve and ‘Type A (or class A) for the RCD side. · · · Tripping Characteristic: B · · 230-240VAC · · Rated Residual Current: 30mA

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RCBO-06/30/SPA Categories: , , Brand: Part Number: 2501148582

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Number of poles (total) 2 Rated fault current 3 A Rated short-circuit breaking capacity according to EN 61009 6 kA Width in number of modular spacings 1 Rated current 6 A Rated voltage 230 V Recess depth 76 mm With interlocking device No Anti-nuisance tripping version No Flush-mounted installation No Concurrently switching N-neutral No
